Description
Technical specifications

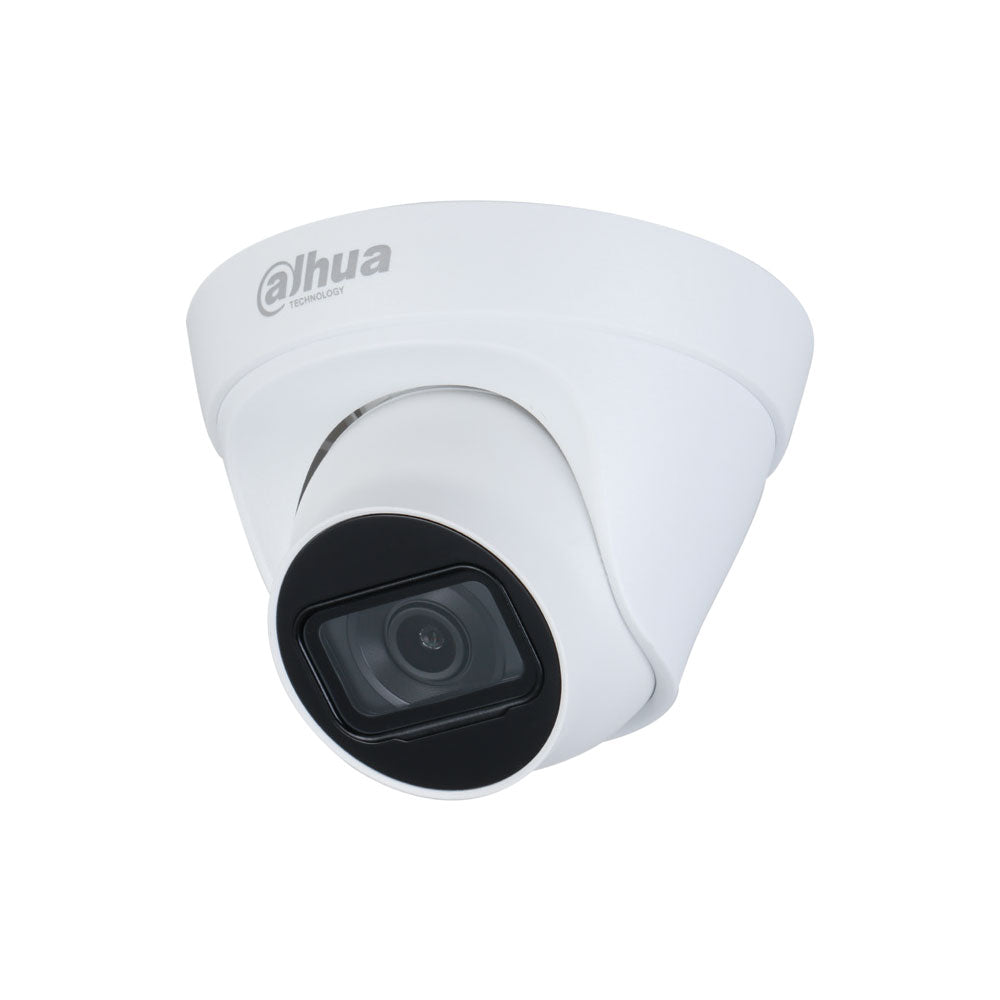

- Dahua Entry Series IP Mini-Dome
- 1/2.9" progressive scan CMOS sensor
- Maximum resolution of 4MP (2560 × 1440)
- Automatic day/night switching (ICR), color or B/W
- Minimum illumination 0.03 lux@F2.0 (color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux with illuminator on
- Integrated IR illumination with a range of up to 30 m (98 ft)
- 1 IR LED with automatic or manual on/off control
- Fixed M12 2.8 mm lens
- Maximum aperture F2.0
- Angle of view (2.8 mm): H 92°, V 50°, D 107°, D 107°.
- Minimum focus distance 1.0 m
Video stream
- Video compression H.265, H.264, H.264H, H.264B
- MJPEG compatible only on sub-stream
- Smart H.265+ and Smart H.264+ intelligent codec
- 2 streams
- Stream 1: 2560 × 1440@1-25/30 fps
- Stream 2: 704 × 576@1-25 fps / 704 × 480@1-30 fps
- Supported resolutions: 4M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- CBR/VBR bitrate control
- H.264 video bitrate: 32 kbps-4096 kbps
- H.265 video bitrate: 12 kbps-4096 kbps
Features
- WDR 120 dB
- 3D NR
- BLC
- HLC
- Configurable motion detection (4 zones, rectangular)
- Configurable ROI (4 zones)
- Image rotation of 0° or 180°
- Mirror
- Privacy masks (4 zones)
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic or manual gain control
- Digital watermark
- Smart illumination
Smart features
- Human detection with precise classification and detection
- Smart search working with Smart NVR for refined search, event extraction and event video merging.
Network
- RJ-45 interface (10/100 Base-T)
- SDK and API
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
- ONVIF (profile S and profile T) and CGI interoperability
- Users/hosts: 6 (total bandwidth 24M)
- Browsers: IE, Chrome, Firefox
- Management software: Smart PSS Lite, DSS, DMSS, DoLynk Care
- Mobile client: iOS and Android
Power supply
- 12 VDC or PoE (802.3af)
- Basic consumption 1.5 W (12 VDC) / 1.9 W (PoE)
- Maximum consumption 3.5 W (12 VDC) / 4.3 W (PoE)
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +60 °C)
- Operating humidity ≤95 % (RH), non-condensing
- Storage temperature -40 °C to +60 °C (-40 °F to +60 °C)
- Storage humidity ≤95% (RH), non-condensing
- IP67 protection
Physical characteristics
- Housing: metal inner core + plastic, plastic cover, plastic decorative ring, plastic base
- Dimensions: 85.5 mm × Φ109 mm
- Net weight: 0.25 kg
- Gross weight: 0.38 kg
- 3AXIS: pan 0°~360°, tilt 0°~78°, rotation 0°~360°.
Content
- Dahua Entry Series 4MP IP Minidome with 2.8 mm fixed lens DAHUA-5119 (DH-IPC-HDW1431T1P-0280B-S6-QH)
Certifications and standards
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
