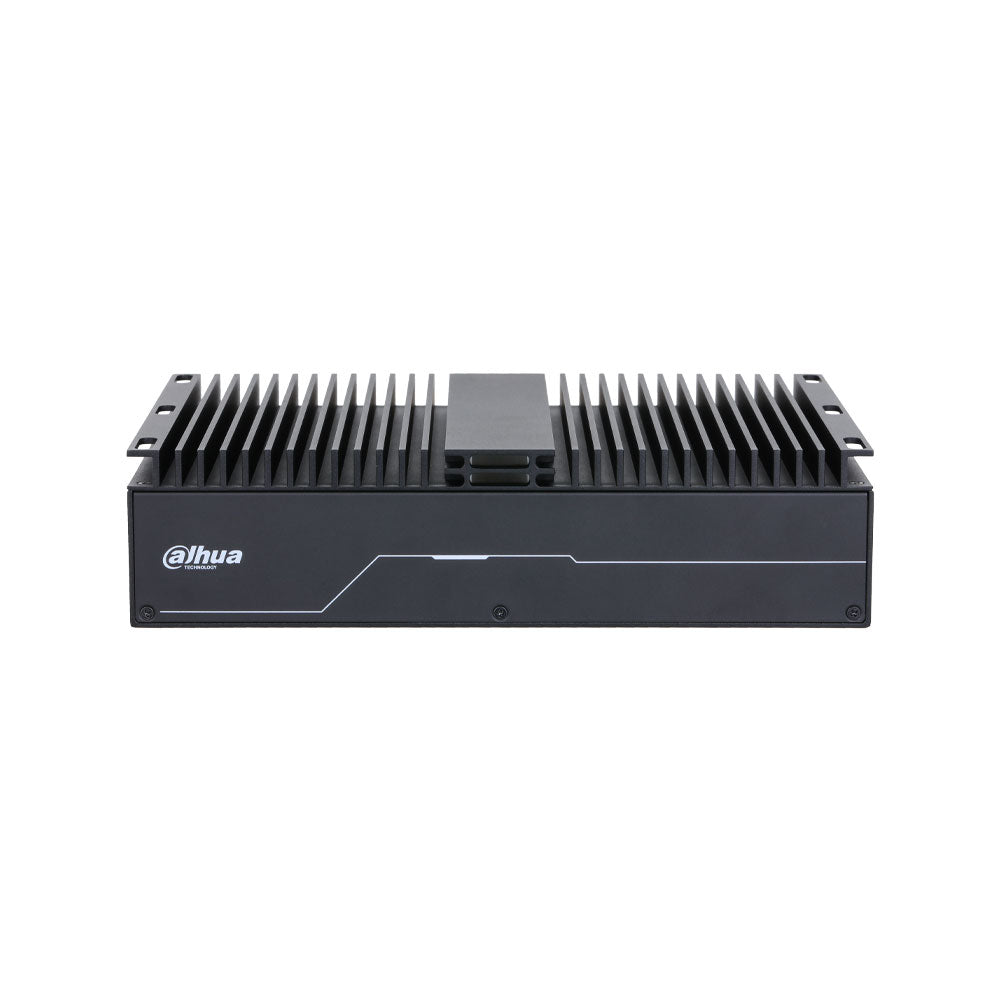

- Dahua WizMind Special Series 4-channel industrial IP NVR with 4 PoE ports and 4G connectivity
- Up to 4 IP channels
- Supports IP cameras up to 16 MP
- Incoming, recording and outgoing bandwidth up to 256 Mbps with AI disabled
- Incoming, recording and outgoing bandwidth up to 180 Mbps with AI enabled
- HDMI and VGA video outputs
Video
- Maximum decoding with AI disabled: 2 channels 16MP@30 fps, 2 channels 12MP@30 fps, 4 channels 8MP@30 fps, 4 channels 6MP@30 fps
- Maximum decoding with AI enabled: 1 channel 16MP@30 fps, 2 channels 12MP@30 fps, 3 channels 8MP@30 fps, 3 channels 6MP@30 fps, 4 channels 5MP@30 fps
- Supported resolutions: 16MP, 12MP, 8MP, 6MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960P, D1, CIF
- Smart H.265+, H.265, Smart H.264+, H.264, MJPEG video compression
- HDMI outputs: 3840x2160, 1920x1080, 1280x1024, 1280x720
- VGA outputs: 1920x1080, 1280x1024, 1280x720
- Multi-screen display 1st screen: 1/4
- Multi-screen display 2nd screen: 1/4
- Access to third-party cameras ONVIF, Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, Canon
Features
- Fanless design with advanced dissipation for extreme temperature environments
- One-click arming and triggering
- EPTZ
Smart functions
- AI recorder with face detection, face recognition, perimeter protection and SMD
- Recorder-side perimeter protection on 4 channels with 10 IVS rules per channel
- Face detection from the recorder on 2 channels with up to 12 face images per second per channel
- Face recognition with up to 10 databases and 20,000 images
- SMD Plus from the recorder on 4 channels with secondary filtering of people and vehicles
- AI from the camera with face detection, face recognition, perimeter protection, SMD, ANPR, people counting, stereo analysis and thermal mapping
- AI search by target attributes and event types
Audio
- 1 RCA audio input
- 1 RCA audio output
- Compression G.711a, G.711u, PCM, G726
Storage
- 1 SATA port for a hard drive up to 20TB (not included)
Alarms
- 4-channel alarm inputs
- 2-channel alarm outputs with 1 relay output and 1 12 V 1 A output
- Smart alarms via face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis and thermal mapping
- General alarms for motion detection, privacy mask, video loss, scene change, PIR alarm and external IPC alarm
- Anomaly alarms: camera disconnection, storage error, disk full, IP conflict, MAC conflict, connection blocking and cybersecurity exception.
Communication interface
- RS-485 with 2 ports
- 2 USB 2.0 ports on the back
- Micro-SIM slot
- 2 antennas
- 12 VDC 1 A power output
Network
- 2 RJ45 10/100/1000 Mbps ports
- Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search, P2P, auto-registration
- ONVIF 23.12 Profile T, Profile S, Profile G interoperability
- CGI and SDK interfaces
- Mobile access iOS and Android
- Browsers Chrome, IE9 and later, Firefox
- Multi-address network mode, load balancing, fault tolerance
4G
- Standards GSM, WCDMA, LTE
- 4G FDD-LTE bands: B1, B3, B5, B7, B8, B20
- 4G TDD-LTE bands: B38, B40, B41
- 3G WCDMA bands: B1, B5, B8
- 2G GSM bands: 900/1800MHz
PoE
- 4 PoE 10/100 Mbps IEEE 802.3 af/at ports
- Total PoE power of 36 W
- 25.5 W maximum power per port
Power supply
- 53 VDC with 48-60 VDC support
- NVR power consumption less than 10 W without hard drive
Environment
- Operating temperature -40°C to +70°C (-40°F to +70°F)
- Storage temperature -20°C to +60°C (-4°F to +60°C)
- Operating humidity 10% to 93% non-condensing
Physical characteristics
- Dimensions: 300.0 x 224.9 x 75.5 mm
- Net weight: 3.36 kg
- Gross weight: 5.51 kg
Contents
- Dahua WizMind 4-channel industrial IP NVR with 4 PoE and 4G DAHUA-5118 (DHI-NVR4104-P-WT/4G-EU)
Certifications and regulations
- FCC: 47 CFR FCC Part15, SubpartB, Class A
- CE-EMC: EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014
- CE-LVD: EN 62368-1:2014
