Technical specifications

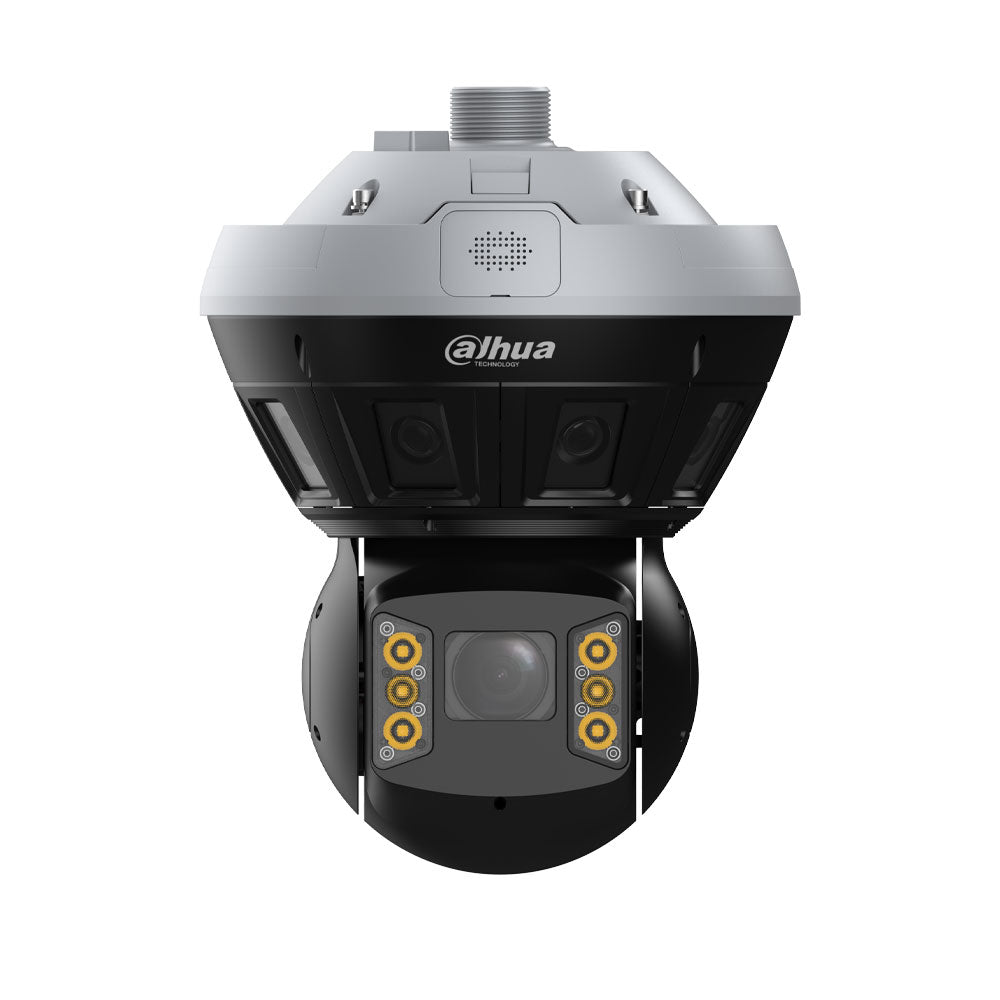

- Dahua WizMind 180° panoramic PTZ IP dome
- Channel 1 (panoramic): 4 x 2 MP 1/1.8" CMOS sensor
- Channel 2 (PTZ): 4 x 4 MP 1/1.8" CMOS sensor
- Maximum resolution of channel 1: 4096 × 1800
- Maximum resolution of channel 2: 2688 × 1520
- Minimum illumination channel 1: 0.0005 lux@F1.0 (color), 0.0001 lux@F1.0 (B/W)
- Minimum illumination channel 2: 0.001 lux@F1.6 (color), 0.0001 lux@F1.6 (B/W), 0 lux with illuminator
- WDR 120 dB on both channels
- Channel 1: 2.8 mm F1.0 fixed lens
- Channel 1 viewing angle: H 180° V 103° Channel 2: 5.5 mm F1.0 varifocal lens
- Channel 2: 5.2-210 mm F1.6-F5.0 varifocal lens with 40x optical zoom and 16x digital zoom
- Channel 2 viewing angle: H 60.8°-2.8° V 35.9°-1.7° D 67.7°-3.3
- Integrated multi-source IR + warm light illumination up to 150 m IR and 100 m warm light
- Gyroscopic image stabilization (GIS) and optical defogging on the PTZ channel
Video stream
- H.265, H.264, H.264H, H.264B and MJPEG compression (sub-stream)
- Smart H.265+ and Smart H.264+
- 3 streams per channel
- Channel 1 Stream 1: 4096 × 1800@(1-25/30 fps)
- Channel 1 Stream 2: 1024 × 452@(1-25/30 fps)
- Channel 1 Stream 3: 1920 × 832@(1-25/30 fps)
- Channel 2 Stream 1: 2688 × 1520@(1-25/30 fps)
- Channel 2 Stream 2: 704 × 480@(1-25/30 fps)
- Channel 2 Stream 3: 1920 × 1080@(1-25/30 fps)
- CBR and VBR bitrate control
Positioner
- Pan range 0°-360° continuous
- Tilt range -10°-180° with 180 auto flip
- Manual speed Pan 0°/s-360°/s and Tilt 0°/s-150°/s
- 300 presets
- 8 tours up to 32 presets per tour
- 5 patterns and 5 scans
- Power-off memory
- Idle motion configurable by tour, preset, pattern or scan
Features
- Automatic, natural, outdoor, manual and regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- BLC and HLC
- Motion detection in 4 areas
- Configurable privacy masks
- AR panorama with tag overlay
- Intelligent tracking linked to pan and PTZ
Smart Functions
- Panoramic channel: perimeter protection, crowd mapping with large-scale AI models, vehicle density and ship detection
- PTZ channel: perimeter protection, video metadata and face detection
- IVS: line crossing, intrusion and parking detection
- Face detection with snapshot capture and optimization and attribute extraction
- Video metadata for vehicles, non-motorized vehicles, faces and human body
Audio
- Dual built-in microphone
- Built-in speaker
- 2 inputs and 1 audio output
- PCM, G.711a, G.711Mu, G.726, G.723 compression
Storage
- MicroSD card slot up to 1 TB (card not included)
- Support for FTP, SFTP, NAS and SMB storage
Alarms
- 3 alarm inputs
- 2 alarm outputs
Communication interface
- 1 configurable RS-485 port
- 1 CVBS analog output (BNC)
Network
- RJ45 10/100/1000 Base-T Ethernet interface
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
- ONVIF S, G and T profiles and CGI support
- Up to 20 simultaneous users
- DSS Pro software
Power supply
- 36 VDC (±50%) or PoE++ (802.3bt)
- Base consumption 26.4 W and maximum 67.8 W
- Auxiliary output 12 VDC max. 165 mA
Environment
- Operating temperature -40°C to +70°C (-40°F to 158°F)
- Relative humidity ≤95%.
- IP67 and IK10 protection
- Corrosion treatment for harsh environments.
Physical characteristics
- Metal and plastic material
- Dimensions Φ280.0 mm × 368.0 mm
- Net weight: 8.8 kg
- Gross weight: 12.2 kg
Contents
- 180° panoramic IP camera + 8MP PTZ DAHUA-5103 (DH-PSDW8852SP-A180-D440-DC36V-ATC)
- 36 VDC 5 A power adapter
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
- UL 50E NEMA Type 4X
