Description
Technical Specifications

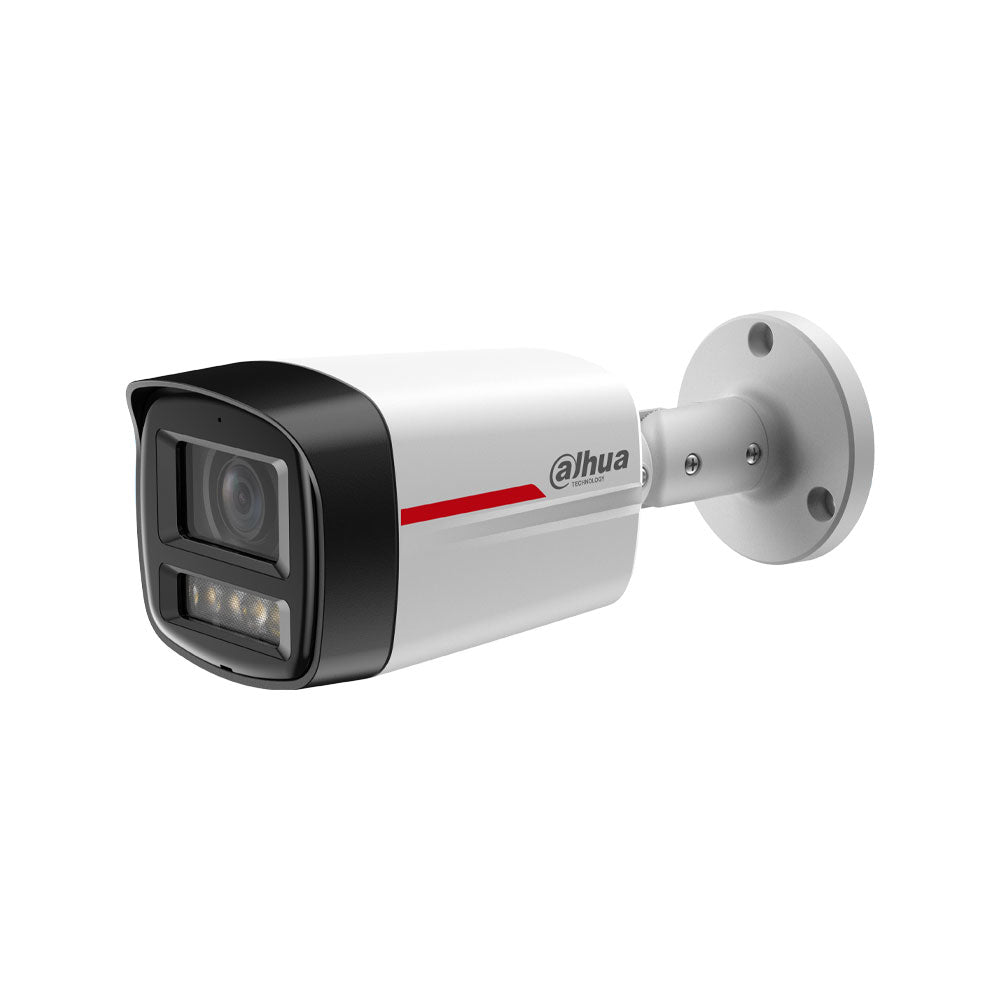

- Dahua WizSense 2 Series Bullet IP Camera with WizColor technology
- 1/1.8" 4MP CMOS sensor
- Maximum resolution 2688 × 1520
- Minimum illumination 0.0001 lux@F1.0
- Warm light up to 50 m
- 4 warm light LEDs
- 2.8 mm fixed lens
- F1.0 aperture
- Angle of view: H 105°, V 57°, D 125°, D 125°, D 125°, H 105°, V 57°, D 125°, D 125°, D 125°.
- Minimum focus distance: 2.0 m
Video Stream
- Compression H.265; H.264; H.264H; H.264B; MJPEG (sub-stream)
- Smart H.265+; Smart H.264+
- Stream 1: 2688 × 1520@1-20 fps; 2560 × 1440@1-25/30 fps
- Stream 2: 704 × 576@1-25 fps / 704 × 480@1-30 fps
- Up to 2 simultaneous streams
- VBR / CBR bit rate control
- H.264 bit rate 32 kbps-6144 kbps
- H.265 bit rate 12 kbps-6144 kbps
- Day/night mode Color / B/W
Features
- WDR 120 dB
- 3D NR
- BLC and HLC
- ROI up to 4 zones
- Motion detection (4 zones)
- Privacy masking (4 zones)
- LDC
- Defog
- Rotation 0°/90°/180°/270°.
- Mirror
- Smart illumination
- Digital watermark
Smart Functions
- IVS: intrusion and tripwire with human/vehicle classification from the camera
- SMD Plus from the camera
- Smart Search in combination with a compatible NVR
Audio
- Built-in microphone
- Compression G.711a; G.711Mu; PCM; G.726
Storage
- MicroSD slot up to 256 GB (card not included)
- FTP storage; SFTP; NAS
Network
- RJ45 10/100 Base-T interface
- Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
- SDK and API
- ONVIF Profile S; Profile G; Profile T; Profile M; CGI
- Up to 20 simultaneous users
- Software Smart PSS Lite; DSS; DMSS
- iOS and Android applications
Power Supply
- 12 VDC (±30%)
- PoE (802.3af)
- Base consumption 1.4 W (12 VDC) / 1.7 W (PoE)
- Maximum power consumption 5.4 W (12 VDC) / 6.3 W (PoE)
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Humidity ≤95% non-condensing
- IP67 protection
- Basic corrosion protection
Physical Characteristics
- Metal housing
- Dimensions: 197.9 × 80.2 × 76.2 mm
- Net weight: 0.56 kg
- Gross weight: 0.70 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- WizColor 4MP DAHUA-5100 Bullet IP Camera (DH-IPC-HFW2449TL-S-PRO)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
