Description
Technical Specifications

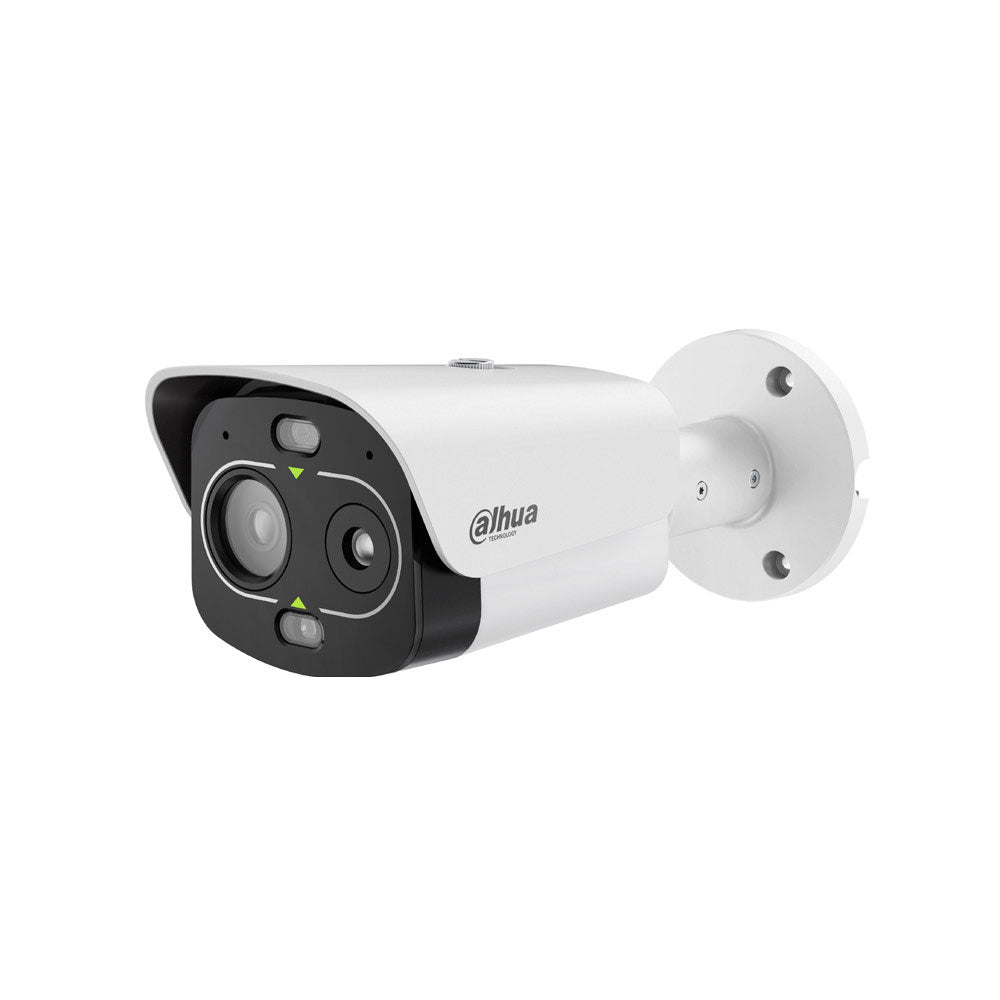

- Dahua Eureka Series Hybrid Bullet IP Thermal Camera
- Uncooled VOx thermal detector with a resolution of 256 (H) × 192 (V), 12 µm pixel pitch, and a spectral range of 8 to 14 µm.
- Thermal sensitivity (NETD) ≤25 mK@f/1.0
- Fixed 7mm thermal lens with F1.0 aperture
- Thermal viewing angle with 7mm of H 24° and V 18°.
- 16-level thermal digital zoom.
- Available color palettes (18 modes)
- Visible channel with 1/1.8" CMOS sensor and 4MP 2688 × 1520 resolution
- Fixed 6mm visible lens with F1.6 aperture
- Visible viewing angle with 6mm of H 59.9° and V 34.7°.
- Minimum illumination 0.05 lux in color, 0.005 lux in B/W, and 0 lux with IR
- IR with range up to 50m
- White light up to 30m range
- Auto day/night (ICR), color and B/W modes
Video Stream
- H.265, H.264, H.264H, and MJPEG video compression
- Available thermal resolutions: 1280 × 960, 1024 × 768, 640 × 480, and 256 × 192
- Available visible resolutions: 2688 × 1520, 1080P (1920 × 1080), 720P (1280 × 720), and D1 (704 × 576)
- Thermal stream 1 with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
- Thermal stream 2 with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
- Visible stream 1 with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
- Visible stream 2 with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Features
- Dual image fusion between visible and thermal channels
- Digital Detail Enhancement (DDE) available
- Automatic and manual AGC
- Automatic and manual white balance with Indoor, Outdoor, Tracking, Street lamp, and Natural modes
- True 120 dB WDR
- BLC and HLC available
- 2D NR and 3D NR noise reduction
- RoI available (immovable)
- Image rotation 0°, 90°, 180°, and 270
- Remote auxiliary management
- Local sound with white light alarms
- Red and blue light alarms
Smart Functions
- Perimeter protection against tripwire and intrusion
- Heat detection and alarm
- Hot and cold spot mapping
- People and vehicle classification
- Smoke detection
- Call detection
- Smoke detection
- Temperature measurement with point (21), line (21), and area (21) modes
- Up to 21 simultaneous rules
- Temperature range from -20 °C to +150 °C in low mode and from 100 °C to +650 °C in high mode
- Maximum accuracy of ±2 °C or ±2%.
Audio
- Two built-in microphones
- 1 audio input and 1 audio output
- G.711a, G.711mu, PCM, and AAC compression
Storage
- MicroSD card slot up to 256 GB (card not included)
Alarms
- 2 inputs and 2 alarm outputs
Communication Interface
- RS-485 via 1 pair
Network
- RJ-45 10/100 Base-T interface
- Protocols HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, and 802.1x
- ONVIF, CGI, and Dahua SDK support
- Up to 12 simultaneous users
- Security via authorized username/password, associated MAC, HTTPS, IEEE 802.1x, and network access control
Power Supply
- 12-24 VDC (±20%) and PoE (802.3af) power supply
- Basic consumption less than 5.3W at 12VDC and 6.5W with PoE
- Maximum consumption less than 12W at 12VDC and 11.5W with PoE
- 12VDC power output up to 0.15A available with DC power supply only
Environment
- Operation -40 °C to +65 °C (-40 °F to +149 °F)
- Storage -40 °C to +70 °C (-40 °F to +158 °F)
- Operating humidity up to 95
- IP67 protection
- IK10 vandal-proof housing
- Corrosion level with basic protection
Physical Characteristics
- Dimensions: 233 × 97.6 × 99.8 mm
- Packaging dimensions: 337 × 146 × 136 mm
- Net weight: ≤1.1 kg
- Gross weight: ≤1.4 kg
Content
- DAHUA-5098 Hybrid Bullet IP Thermal Camera (DHI-TPC-BF1241-TB7F6-DW-S8-V1)
