Description
Technical characteristics

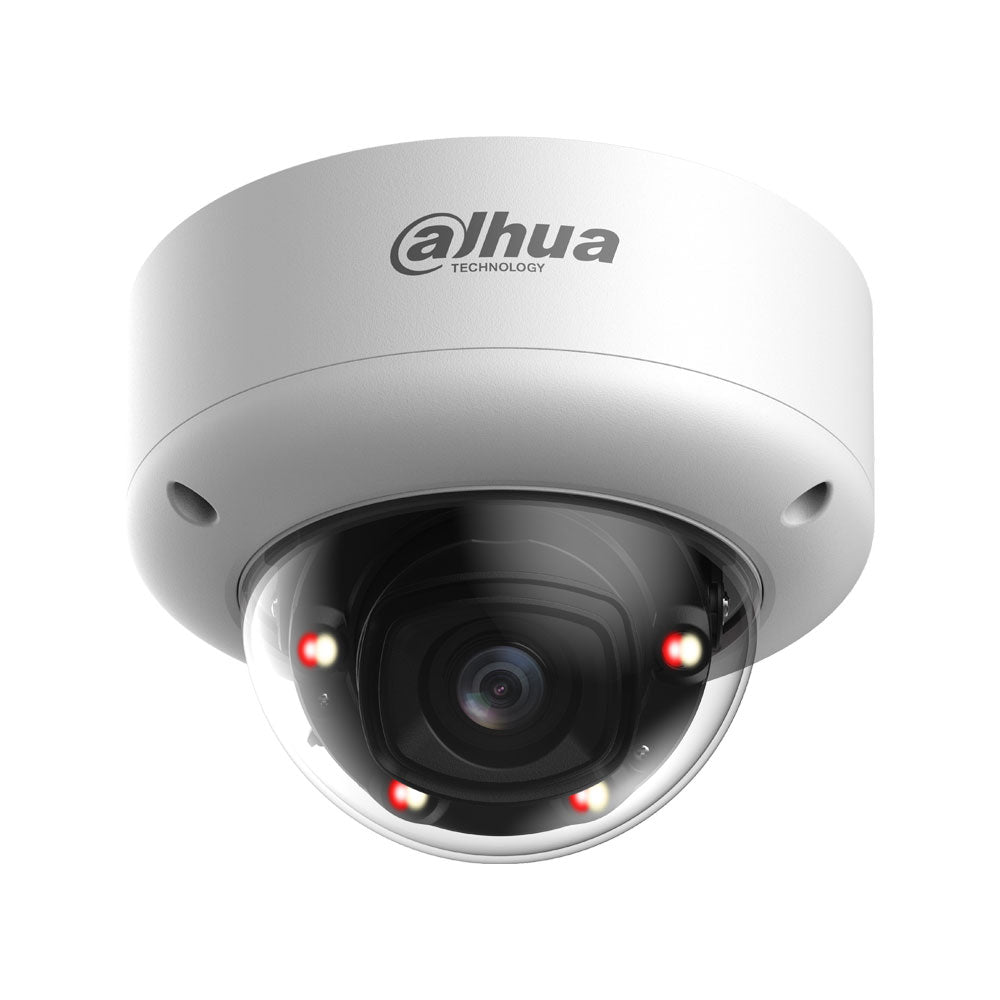

- Dahua WizMind 5 Series Smart Dual Light IP Mini Dome
- 8MP 1/1.8" CMOS sensor
- Maximum resolution 3840 × 2160
- Electronic shutter 1/3 s-1/100,000 s
- Minimum illumination 0.0008 lux color / 0.0004 lux B/W / 0 lux with illuminator
- IR illumination up to 60 m
- Warm light up to 50 m
- Multi-conductor IR + warm light illumination
- 2.7-12 mm motorized varifocal lens
- Aperture F1.8
- Angle of view H: 113°-47°; V: 60°-23°; D: 133°-53°
- Minimum focusing distance 0.13 m
Video stream
- Compression H.265; H.264; H.264H; H.264B; MJPEG (sub-stream)
- AI encoding AI H.265; AI H.264; Smart H.265+; Smart H.264+
- Stream 1: 3840 × 2160@25/30 fps
- Stream 2: 704 × 576@25 fps / 704 × 480@30 fps
- Stream 3: 1920 × 1080@25/30 fps
- Stream 4: 1280 × 720@25/30 fps
- Up to 4 simultaneous streams
- Bit rate control VBR / CBR
- H.264/H.265 bit rate 3 kbps-16384 kbps
- Day/Night mode Auto(ICR) / Color / B/W
Features
- WDR 120 dB
- 3D NR
- BLC and HLC
- SSA (scene self-adaptation)
- ROI up to 4 zones
- EIS
- Defogging
- Image rotation 0°/90°/180°/270° Image rotation
- Mirror
- Privacy masking 4 mosaics or 8 color blocks
- LDC
- Audible warning with 11 alarms and upload of 10 custom alarms
Smart functions
- IVS with perimeter protection and human/vehicle/animal classification from the camera
- SMD 4.0 from the camera
- AcuPick
- Face detection with attribute extraction
- People counting by line crossing, area and queue management
- Heat map
- Video metadata
- Smart Search in combination with a compatible NVR
- ePTZ
Audio
- Built-in microphone
- 1 RCA audio input
- 1 RCA audio output
- Compression G.711a; G.711Mu; PCM; G.726; G.723
Storage
- MicroSD slot up to 1 TB (card not included)
- FTP; SFTP; NAS storage
Alarms
- 2 alarm inputs (3-5 VDC wet contact)
- 1 alarm output (12 VDC 300 mA wet contact)
Network
- RJ45 10/100 Base-T interface
- Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
- ONVIF Profile S; Profile G; Profile T; Profile M; CGI
- Up to 20 simultaneous users
- DSS; DMSS; DoLynk Care Software
- iOS and Android applications
Power supply
- 12 VDC (±30%)
- PoE+ (802.3at)
- ePoE
- Base consumption 4.1 W (12 VDC) / 4.8 W (PoE)
- Maximum consumption 20.6 W (12 VDC) / 22.1 W (PoE)
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Humidity ≤95% non-condensing
- IP67 protection
- IK10 vandal resistant
Physical characteristics
- Metal housing
- Dimensions 118 mm × Φ159 mm
- Net weight: 1.16 kg
- Gross weight: 1.36 kg
- 3AXIS: pan 0°~355°, tilt 0°~80°, rotation 0°~355°, rotation 0°~355°.
Content
- 8MP Smart Dual Light IP Mini Dome Camera DAHUA-5095 (DH-IPC-HDBW5859E1P-ZE-IL-2712)
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
