Technical Specifications

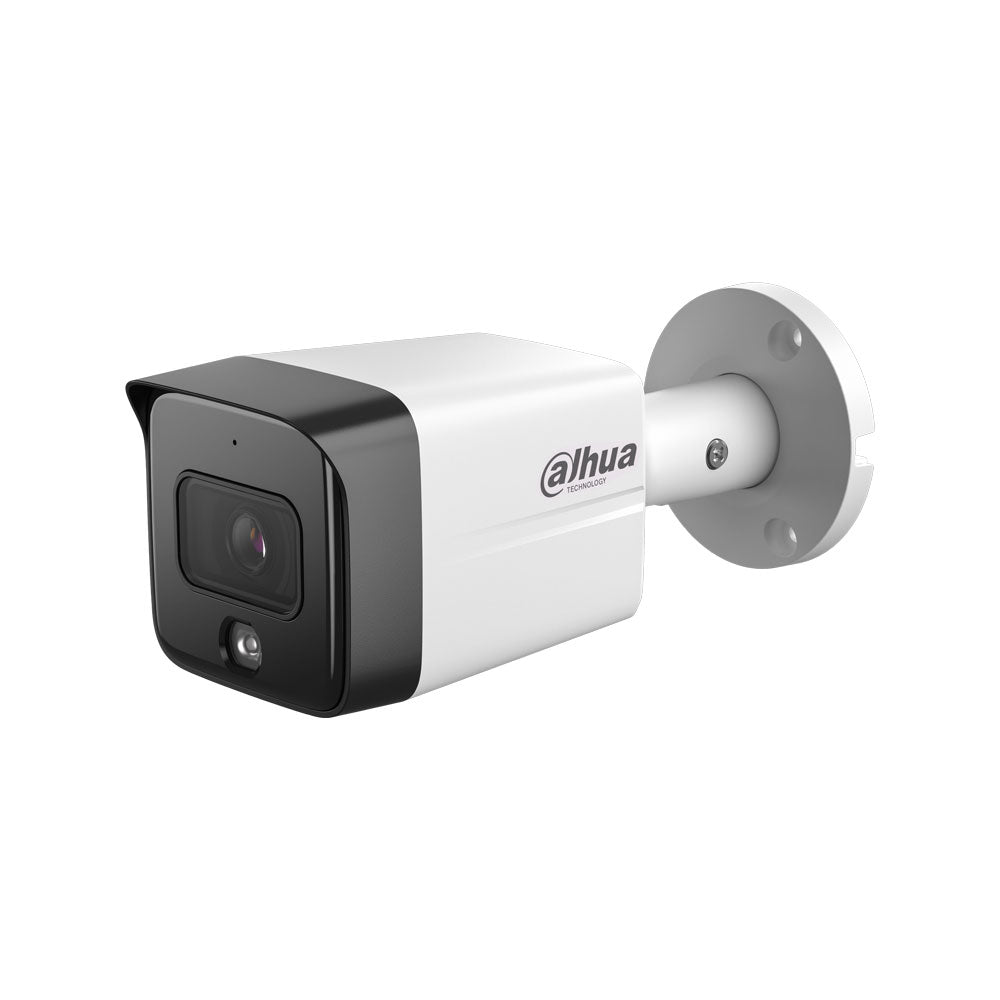

- Dahua Lite Series Bullet IP Camera
- 4-megapixel (1/3") progressive CMOS sensor
- Maximum resolution 2688 × 1520
- Minimum illumination 0.08 lux (color, 1/3 s, 30 IRE) / 0.3 lux (color, 1/30 s, 30 IRE) / 0 lux with IR
- IR illumination up to 30 m
- 18 IR LEDs
- Fixed 2.8 mm lens
- Aperture F2.0
- Viewing angle H: 104°; V: 57°
Video Stream
- Compression H.265; H.264H; MJPEG (sub-stream)
- Smart H.265+; Smart H.264+
- 2 simultaneous streams
- Stream 1: 2688 × 1520@1-20 fps
- Stream 1: 2304 × 1296@1-25/30 fps
- Stream 2: D1@1-25/30 fps
- CBR/VBR bit rate control
- H.265 bit rate 12 kbps-8448 kbps
- H.264 bit rate 32 kbps-10240 kbps
- Day/Night mode Auto(ICR) / Color / B/W
Features
- WDR 120 dB
- 3D NR
- AWB, AGC and BLC
- Motion detection (4 zones)
- ROI (4 zones)
- Smart IR
- 16x digital zoom
- Flip 0°/90°/180°/270°
- Mirror
- Privacy masking (4 zones)
Smart Functions
- IVS with human detection
- Video tampering detection
Network
- RJ45 10/100 Base-T interface
- Protocols HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS
- ONVIF Profile S and G; API
- Unicast and Multicast
- Maximum access 10 users / 20 users
- Software Smart PSS; DSS; DMSS
- iOS and Android applications
Power Supply
- 12 VDC
- PoE (802.3af) Class 0
- Power consumption < 5.5 W
Environment
- Operating temperature -30°C to +60°C (-30°F to +60°F)
- Humidity < 95% RH
- IP67 protection
- 2 kV surge protection
Physical Characteristics
- Metal + plastic casing
- Dimensions Φ70 mm × 164.7 mm
- Net weight: 0.38 kg
- Gross weight: 0.44 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- 4MP Bullet IP Camera DAHUA-5085 (DH-IPC-HFW1431TCP-A-0280B-S6-QH)
Certifications and Standards
- CE EN60950:2000
- UL60950-1
- FCC Part 15 Subpart B
