Description
Technical characteristics

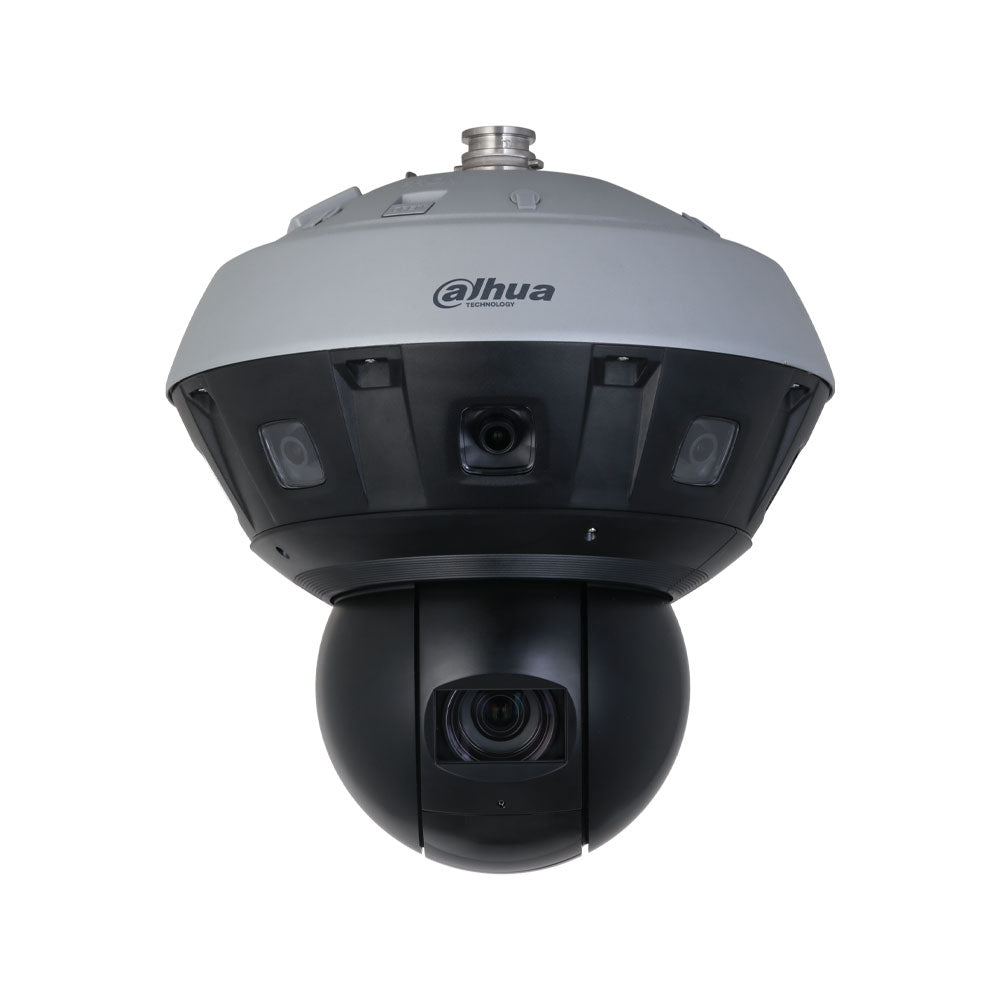

- Dahua WizMind Multi-sensor 360 Panoramic PTZ IP Dome
- Panoramic channel 1: 8 × 4 MP, 1/1.8" CMOS sensor.
- Maximum panoramic resolution 11520 × 2700 (32 MP)@25/30 fps
- PTZ channel 2: 1 × 8 MP, 1/1.8 inch CMOS sensor
- Maximum PTZ resolution 3840 × 2160@25/30 fps
- 45X optical zoom
- 16X digital zoom
- PTZ lighting: 7 laser LEDs + 2 IR LEDs
- Laser range up to 500 m
- PTZ WDR channel 120 dB
- DWDR wide channel
Video
- Compression H.265, H.264, H.264H, H.264B, MJPEG (sub-stream)
- Smart H.265+ and Smart H.264+
- 3 simultaneous streams
- Main panoramic stream: 11520 × 2700@1-25/30 fps
- Main PTZ stream: 3840 × 2160@1-25/30 fps
- CBR/VBR bitrate control
Positioner
- Pan 0° to 360° continuous
- Tilt -11° to 90° with auto 180° flip Manual Pan Speed 240°/s
- Manual Pan Speed 240°/s
- Manual Tilt Speed 100°/s
- Positioning accuracy 0.05°.
- 300 presets
- 8 tours
- 5 patterns
- 5 scans
- Power-off memory
Smart functions
- Perimeter protection with human/vehicle classification
- Facial recognition with a database of up to 10,000 faces
- Video metadata
- People density map
- Vehicle density
- Smart tracking
Audio
- 2 audio inputs
- 2 audio outputs
- Compression PCM, G.711a, G.711Mu, G.726, G.723
Storage
- Micro SD slot up to 512 GB (card not included)
- FTP, SFTP, NFS, and SMB support
Alarms
- 7 alarm inputs
- 3 alarm outputs
Communication interface
- RS-485
- BNC analog output (CVBS)
- 20 km single-mode optical SFP module
Network
- RJ45 10/100/1000 Base-T
- Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP
- ONVIF Profile S, G and T
- 20 simultaneous users
Power supply
- 36 V DC
- Base power consumption 51.48 W
- Maximum power consumption 71.9 W
Environment
- Operating temperature -40 °C to +70 °C
- Humidity ≤95%.
- IP66 protection
Physical characteristics
- Metal + plastic material
- Dimensions Φ383 mm × 462 mm
- Net weight: 14.7 kg
- Gross weight: 19.8 kg
Contents
- DAHUA-5080 IP PTZ Panoramic Camera (DH-PSDW83242MP-A360-D845L-DC36V-S3)
- 36 V DC 5 A power adapter
- PBW059-00 mounting adapter
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
- FCC Part 15 Subpart B
- UL62368-1
