Description
Technical Specifications

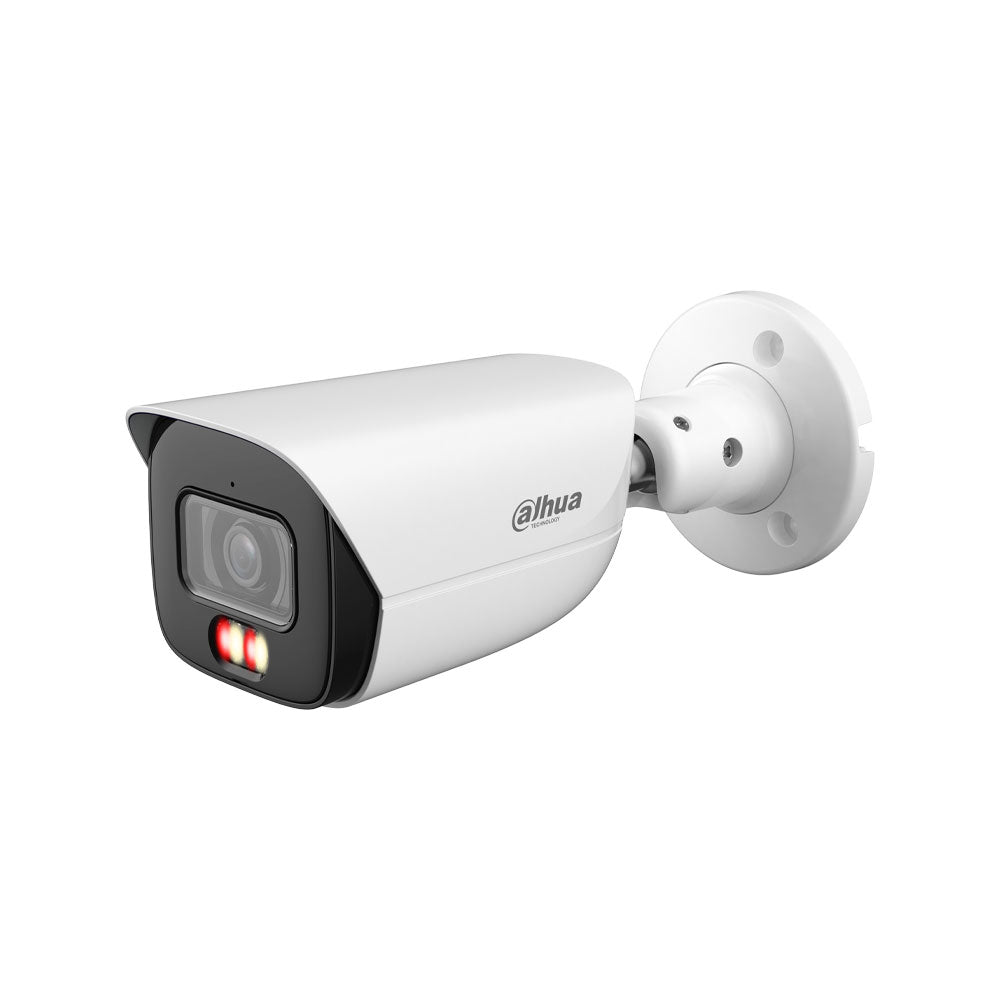

- Dahua WizMind 5 series Bullet IP camera
- 1/2.7" CMOS sensor
- Maximum resolution 5MP (2960×1668)
- Minimum illumination 0.0009 lux color / 0.0005 lux B/W / 0 lux with active illuminator
- Smart Dual Light illumination with IR up to 50 m and warm light up to 50 m
- 2 multi-color LEDs (IR + warm light)
- Fixed 2.8 mm lens
- Aperture F1.6
- Viewing angle 2.8 mm: H 108.4°, V 60°, D 127.1°
Video Stream
- H.265, H.264, H.264H, H.264B, MJPEG (sub-stream) compression
- AI H.265 and AI H.264
- Smart H.265+ and Smart H.264+
- Stream 1: 5MP@25/30 fps
- Stream 2: 704x576@25 fps / 704x480@30 fps
- Stream 3: 1080P@25/30 fps
- Stream 4: 720P@25/30 fps
Features
- WDR 120 dB
- 3D NR
- BLC and HLC
- SSA (scene self-adaptation)
- ROI with 4 zones
- Smart illumination
- Smart Dual Light
- Defog
- Rotation 0°/90°/180°/270°
- LDC
- Digital watermark
- Mirror and privacy masks
Smart Functions
- IVS with intrusion, tripwire and rapid movement with human/vehicle/animal classification from the camera
- SMD 4.0 from the camera
- AcuPick for intelligent search
- Face detection with attribute extraction
- People counting by line crossing and by area
- Heat map
- Video metadata for vehicle, face and human body
Audio
- 1 audio input (RCA)
- 1 audio output (RCA)
- Built-in microphone
- G.711a, G.711Mu, PCM, G.726, G.723 compression
Storage
- MicroSD slot up to 1 TB (card not included)
- FTP and SFTP storage
- NAS storage
Alarms
- 1 alarm input (3~5 VDC wet contact)
- 1 alarm output (12 V DC 300 mA wet contact)
Network
- RJ45 10/100 Base-T port
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration protocols
- ONVIF Profile S, G, T and M; CGI
- DSS, DMSS and DoLynk Care Software
- iOS and Android mobile client
- HTTPS, 802.1x, IP/MAC filtering, X.509 certificates, secure boot and update security
Power Supply
- 12 V DC (±30 %)
- PoE+ (802.3at)
- ePoE
- Basic power consumption 4.2 W (12 V DC) / 6.3 W (PoE)
- Maximum power consumption 13.3 W (12 V DC) / 15.6 W (PoE)
Environment
- Operating temperature -40 °C ~ +60 °C
- Operating humidity ≤95 % non-condensing
- IP67 protection
Physical Characteristics
- Metal material
- Ceiling, wall or pole mounting
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
- Dimensions: 192.7 × 70.5 × 66.4 mm
- Net weight: 0.61 kg
- Gross weight: 0.77 kg
Contents
- Smart Dual Light 5MP Bullet IP Camera DAHUA-5079 (DH-IPC-HFW5559EP-ASE-IL-0280B)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
