Technical Specifications

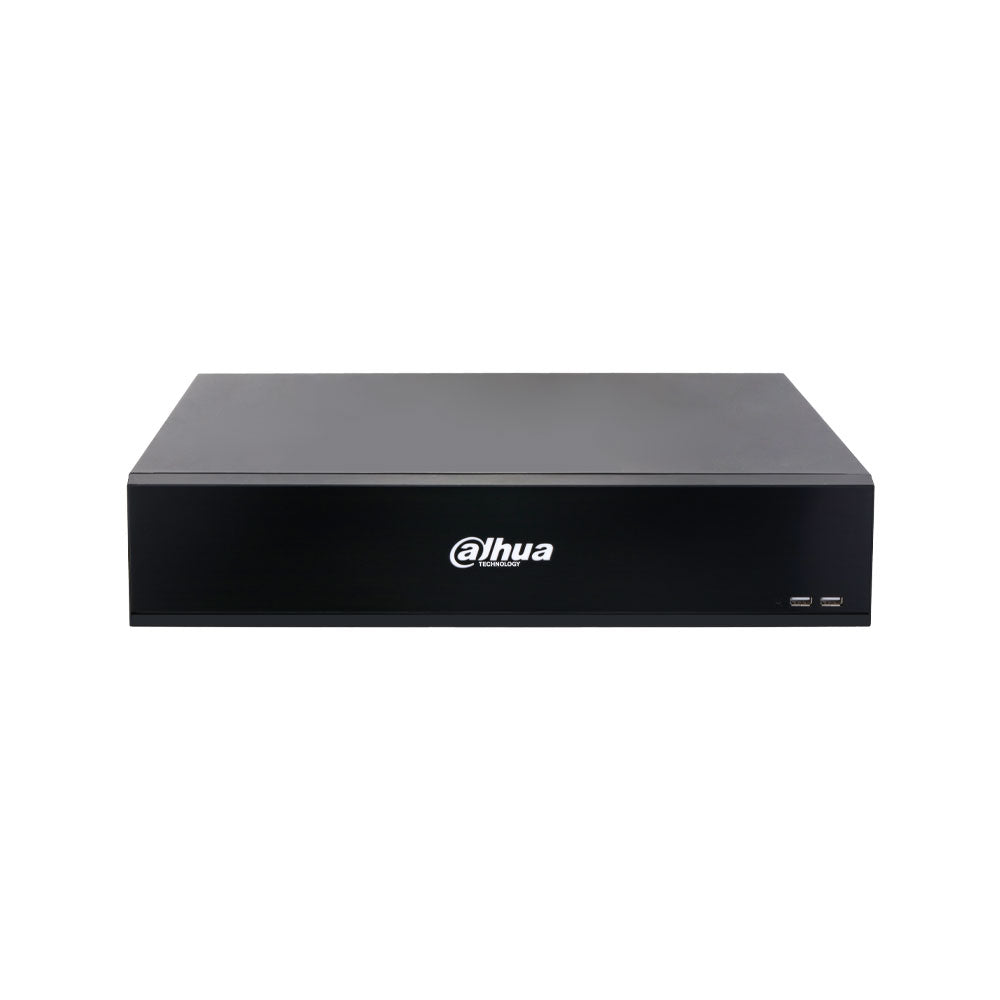

- Dahua WizMind NVR NVR5-XIPro Series NVR5-XIPro
- 64 IP channels
- Supported resolution: up to 32MP
- Bandwidth: 512 Mbps input, 512 Mbps recording, 384 Mbps output (AI disabled); 200/200/200 Mbps (AI enabled)
- Video outputs: 2 HDMI (up to 8K), 2 VGA
Video
- IP inputs: 64 channels
- Supported resolutions: 32MP (7680×4320), 24MP (5760×4320), 16MP (5376×3024), 12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 960P (1280×960), 720P (1280×720), D1 (704×576), CIF (352×288), QCIF (176×144)
- Decoding capability (AI disabled): 2×32MP@30fps, 3×24MP@30fps, 5×16MP@30fps, 6×12MP@30fps, 10×8MP@30fps, 13×6MP@30fps, 16×5MP@30fps, 20×4MP@30fps, 40×1080P@30fps, 64×720P@30fps
- Decoding capability (AI enabled): 1×32MP@30fps, 1×24MP@30fps, 2×16MP@30fps, 4×12MP@30fps, 6×8MP@30fps, 8×6MP@30fps, 8×5MP@30fps, 12×4MP@30fps, 24×1080P@30fps, 48×720P@30fps, 64×D1@30fps
- Multi-screen display: Main screen 1/4/8/9/16/25/36/64 quadrants; sub-screen 1/4/8/9/16 quadrants.
- Synchronized playback: up to 16 channels
- Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Smart Functions
- WizSeek with Natural Language Search
- AcuPick with Xinghan model
- Recorder AI: facial detection (8 channels), facial recognition (up to 20 databases and 200,000 images), metadata (8 channels), perimeter protection (16 channels), SMD (32 channels with AI disabled)
- Camera AI: facial detection and recognition, metadata, perimeter protection, SMD, ANPR, stereo analysis, heat mapping, people counting, PPE detection, AcuPick.
Audio
- 1 RCA input
- 2 RCA outputs
- Compression: G.711a/u, PCM, G726
Storage
- 8 SATA bays (up to 20 TB per disk, not included)
- RAID 0/1/5/6/10 compatible
- 1 eSATA port
Alarms
- 16 alarm inputs / 8 alarm outputs (1 12V 1A output)
Communication Interface
- RS232
- 2 RS485
- USB: 2 USB 2.0 on the front and 2 USB 3.0 on the back
Network
- 2 RJ-45 Ethernet ports (10/100/1000 Mbps)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filter, FTP, DDNS, SNMP, alarm server, P2P, auto recording, IP search, ISCSI
- ONVIF 24.12 (Profile T, Profile S, Profile G), CGI, SDK
- Mobile access: iOS, Android
Power Supply
- 100~240 VAC, 50/60 Hz
- Power consumption: <18 W (without HDD)
Environment
- Operating temperature: -10°C to +55°C (-10°F to +55°F)
- Storage temperature: -20°C to +60°C (-4°F to 140°F)
- Humidity: 10%~93% RH
Physical Characteristics
- Dimensions: 440.0 × 451.3 × 94.9 mm
- Net weight: 6.33 kg
- Gross weight: 8.84 kg
Contents
- Dahua WizMind 64-channel NVR DAHUA-5074 (DHI-NVR5864-XI/Pro)
Certifications
- CE-EMC (EN 55032:2015+A1:2020 ; EN IEC 61000-3-2-2:2019+A1:2021 ; EN 61000-3-3:2013+A1:2019+A2:2021 ; EN 55035:2017+A11:2020 ; EN 50130-4:2011+A1:2014)
- CE-LVD (EN 62368-1:2014)
