Description
Technical specifications

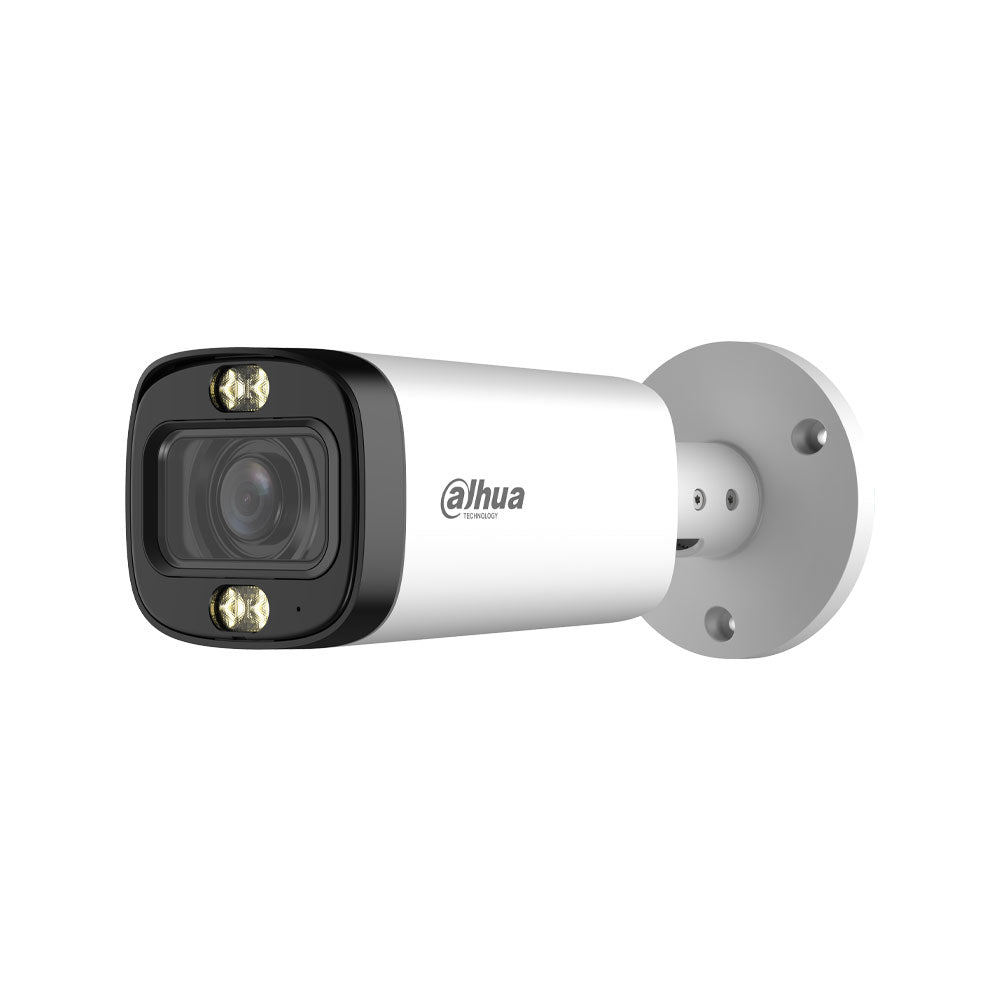

- Dahua Lite Series HDCVI Bullet Camera
- 5MP CMOS sensor
- Maximum resolution of 2880 × 1620
- Minimum illumination 0.01 lux@F1.6 (color), 0.001 lux@F1.6 (B/W), 0 lux (illuminator on)
- IR illumination distance of 80 m
- White light illumination distance of 60 m
- Smart Dual Light and Smart Zoom illumination
- 2.7~13.5mm motorized varifocal lens
- Angle of view: H 32.7°~111.8°, V 18.4°~58.3°, D 37.5°~135.2
Video
- CVI/TVI/AHD/CVBS output selectable by DIP switch
- Supported resolution: 5M (2880 × 1620), 4M (2560 × 1440), 1080P (1920 × 1080), 960H (960 × 576/960 × 480), TVI 5M 16:9 (2960 × 1665)
- Frames per second:
- CVI: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080P@25 fps (PAL)
- AHD: 4M@25 fps (PAL)
- TVI: 5M 16:9@20 fps (PAL)
- CVBS: 960H
- Day/Night Mode Auto (ICR)/Color/B&W
- BLC, HLC and DWDR
- 3D NR noise reduction
- Privacy masking (8 zones)
Features
- Super Adapt with automatic parameter adjustment
Audio
- Built-in microphone
- Coaxial audio CVI/TVI
- Pickup distance up to 8 m
Communication interface
- BNC video output (CVI/TVI/AHD/CVBS selectable by DIP switch)
Power supply
- 12 V DC (±30%)
- Max. power consumption 7.4 W (IR on)
Environment
- Operating temperature: -30 °C ~ +60 °C
- Relative humidity: < 95% (non-condensing)
- IP67 protection
Physical characteristics
- Metal housing
- Wall, ceiling or vertical pole installation
- Dimensions: 209.9 × 90.4 × 90.4 mm
- Net weight: 0.54 kg
- Gross weight: 0.70 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- 5 MP HDCVI bullet camera DAHUA-5072 (DH-HAC-HFW1500RP-Z-IL-A-27135-S3-DIP)
Certifications and standards
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032; EN 55035
