Technical specifications

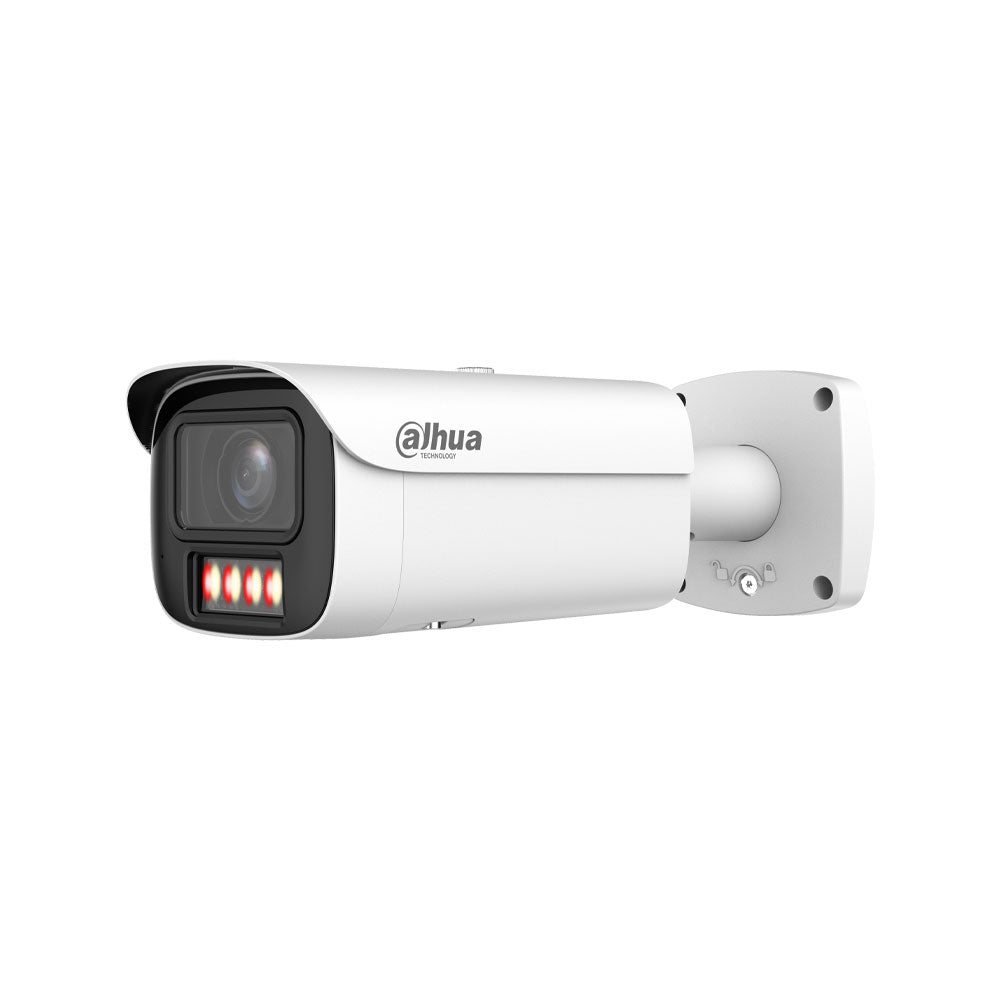

- Dahua WizMind 5 Series Bullet IP Camera
- 1/1.8 CMOS sensor
- Maximum resolution 8MP (3840×2160)
- Automatic/manual electronic shutter 1/3 s~1/100,000 s
- Minimum illumination 0.0008 lux color / 0.0004 lux B/W / 0 lux with active illuminator
- Smart Dual Light illumination with IR up to 60m and warm light up to 60m
- 4 multicolor LEDs (IR + warm light)
- Motorized varifocal optics 2.7~12 mm
- F1.8 aperture
- Angle of view 2.7~12 mm: H 113°~47°, V 60°~23°, D 133°~53°
Video stream
- H.265, H.264, H.264H, H.264B, MJPEG (sub-stream) compression
- AI H.265 and AI H.264
- Smart H.265+ and Smart H.264+
- Stream 1: 8MP@25/30 fps
- Stream 2: D1@25 fps / D1@30 fps
- Stream 3: 1080P@25/30 fps
- Stream 4: 720P@25/30 fps
Features
- WDR 120 dB
- 3D NR
- BLC and HLC
- SSA (scene self-adaptation)
- ROI with 4 zones
- Smart illumination
- Smart Dual Light
- Defogging
- Rotation of 0°/90°/180°/270°.
- LDC
- Electronic Image Stabilization (EIS)
- Mirror and privacy masks
Smart functions
- IVS with intrusion, line crossing and fast movement with human/vehicle/animal classification from the camera
- SMD 4.0 from the camera
- AcuPick for smart search
- Face detection with attribute extraction
- People counting by line crossing and by area
- Heat map
- Video metadata for vehicle, face and human body
- Smart Search in combination with a smart NVR
Audio
- 1 audio input (RCA)
- 1 audio output (RCA)
- Built-in microphone
- G.711a, G.711Mu, PCM, G.726, G.723 compression
Storage
- MicroSD slot up to 1 TB (card not included)
- FTP and SFTP storage
- NAS storage
Alarms
- 2 alarm inputs (3~5 VDC wet contact)
- 1 alarm output (12 V DC 300 mA wet contact)
Communication interface
- RJ45 10/100 Base-T port
Network
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto-registration
- ONVIF Profile S, G, T and M; CGI
- SDK and API available
- DSS, DMSS and DoLynk Care software
- Mobile client iOS and Android
- Security with HTTPS, 802.1x, IP/MAC filtering, X.509 certificates, secure boot and update
Power supply
- 12 V DC (±30 %)
- PoE+ (802.3at)
- ePoE
- Basic power consumption 4.1 W (12 V DC) / 4.8 W (PoE)
- Maximum power consumption 20.5 W (12 V DC) / 22.1 W (PoE)
- Built-in heater 3.0 W
Environment
- Operating temperature -40 °C ~ +60 °C
- Operating humidity ≤95 % non-condensing
- IP67 protection
- Vandal protection IK10
Physical features
- Metal material
- Ceiling, wall or pole mounting
- 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotation 0°~360°
- Dimensions: 279.8 × 96.7 × 94.9 mm
- Net weight: 1.09 kg
- Gross weight: 1.39 kg
Content
- 8MP Smart Dual Light Bullet IP Camera DAHUA-5069 (DH-IPC-HFW5859E1P-ZHE-IL-2712)
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
