Description
Technical Specifications

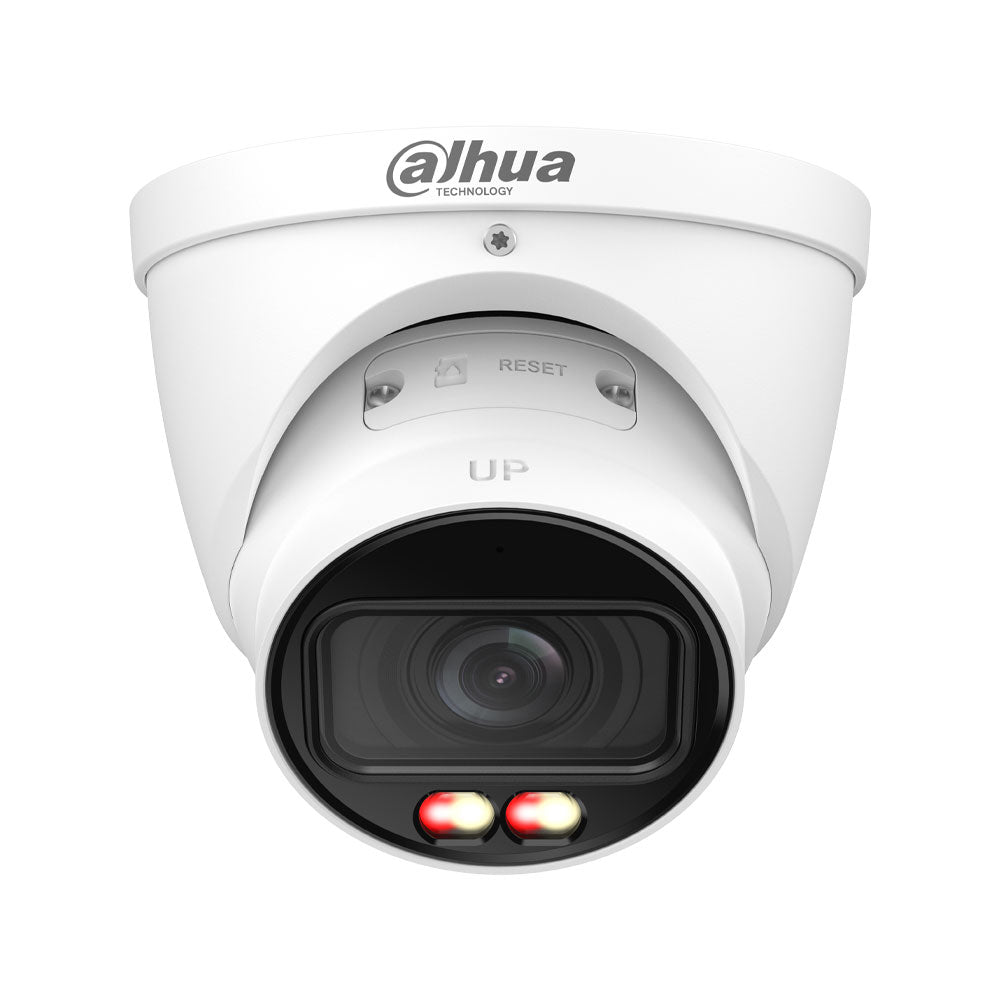

- Dahua WizMind 5 IP dome with Smart Dual Light
- 1/1.8" 8MP CMOS sensor
- Maximum resolution of 8MP (3840×2160)
- ICR with automatic, color, and black and white modes
- Minimum illumination 0.0008 lux@F1.8 in color, 0.0004 lux@F1.8 in black and white, and 0 lux with active illuminator
- Smart Dual Light illumination with IR up to 50m and warm light up to 40m
- Motorized varifocal optics 2.7~12mm with F1.8 aperture
- Viewing angle: H 113°~47°, V 60°~23°, D 133°~53°
Video Stream
- AI H.265, AI H.264, Smart H.265+, Smart H.264+, H.265, H.264, and MJPEG codecs on the secondary stream
- Stream 1: 8MP@25/30 fps
- Stream 2: D1@25/30 fps
- Stream 3: 1080P@25/30 fps
- Stream 4: 720P@25/30 fps
- Up to 4 simultaneous streams
Features
- Real WDR of 120 dB
- AI-ISP for image enhancement in low light
- 3D NR, BLC, HLC, and electronic defogging
- Configurable ROI up to 4 zones
- Electronic image stabilization
- Smart Dual Light with automatic and manual control
Smart Functions
- IVS with intrusion, line crossing, and rapid movement with classification of people, vehicles, and animals from the camera
- SMD 4.0 from the camera
- AcuPick with advanced search from a compatible recorder
- Face detection with capture, optimization, and attribute extraction
- People counting by line and by area with report generation
- Video metadata for people, faces, vehicles, and non-motorized vehicles
Audio
- Built-in microphone
- G.711a, G.711Mu, PCM, G.726, and G.723 audio compression
Storage
- Micro SD slot up to 1TB (card not included)
- Support for FTP, SFTP, and NAS storage
Alarms
- Smart events for video, audio, and system analysis
Communication Interface
- Reset button
Network
- RJ45 10/100 Base-T network interface
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, and auto-registration
- ONVIF S, G, T, and M profiles
Power Supply
- 12 VDC ±30% and 802.3at PoE+ with ePoE
- Maximum power consumption 15.9W
Environment
- Operating temperature -40°C to +60°C (-40°F to +140°F)
- IP67 protection
Physical Characteristics
- Metal body
- 3AXIS: pan 0°~360°, tilt 0°~78°, rotation 0°~360°
- Dimensions: 108.3 × Ø122.0 mm
- Net weight: 0.70 kg
- Gross weight: 0.96 kg
Contents
- 8MP Smart Dual Light IP dome camera DAHUA-5057 (DH-IPC-HDW5859TP-ZE-IL-2712)
Certifications
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
