Description
Technical characteristics
- Dahua 5-in-1 XVR
- BNC inputs: 8 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 12 channels (4 native IP channels + 8 convertible channels)
- Supported resolution: up to 5MP@25 fps
- Video output: HDMI and VGA up to 1080P
Video
- BNC inputs: 8 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 12 channels; incoming, outgoing, and recording bandwidth 64 Mbps
- Recording resolution:
- CVI: 5MP (25 fps), 5MP (20 fps), 5MP (10/12.5 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 5MP (2560×1944@20 fps), 5MP (2960×1665@20/25 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Main encoding capacity:
- Channels 1-2: 5M-N@1~25 fps / 4M-N-1080P@1~30 fps
- Remaining channels: 5M-N@1~12 fps / 4M-N-1080P@1~15 fps
- 1080N/720P/960H/D1/CIF@1~30 fps
- Substream: D1/CIF@1~15 fps
- Display: HDMI (1920×1080, 1280×1024, 1280×720), VGA (1920×1080, 1280×1024, 1280×720)
- Multi-screen display: up to 9 quadrants in normal mode / up to 16 quadrants in IP mode
- Synchronous playback: 1/4/9 channels
- Video codecs: AI encoding, Smart H.265+, H.265, Smart H.264+, H.264
Smart functions
- 2 channels with AcuPick from the recorder
- 4 channels with perimeter protection from the recorder (10 IVS rules per channel)
- 2 channels with facial recognition from the recorder
- 2 channels with face detection from the recorder
- 8 channels with SMD Plus from the recorder
- 12 channels with SMD from the camera
- 8 channels with image quality analysis from the recorder
- 1 channel with scene change detection
- 1 channel with irregular black mask
Audio
- 8 RCA inputs
- 8 audio channels via coaxial
- 1 RCA output
- Two-way audio
- Compression: G.711a, G.711u, PCM
Storage
- 1 SATA port, up to 16 TB (not included)
Alarms
- Alarm inputs: 8
- Alarm outputs: 3
- General alarms: motion, local alarm, housing alarm, HDCVI alarm, external camera alarm, network, PIR
- Anomaly alarms: no disk, disk error, insufficient space, network disconnection, IP/MAC conflict, video loss, tampering, camera offline
- Alarm linkage: recording, snapshot, local or IPC alarm output, audio, buzzer, log, preset, email
Communication interface
- 1 RS-485 port
- 2 USB 2.0 ports (1 front, 1 rear)
- 1 HDMI port
- 1 VGA port
Network
- RJ-45 10/100 Mbps port
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
- Interoperability: ONVIF 24.12 (Profile T, S, G), CGI, SDK
- Supported browsers: Chrome, IE, Safari, Edge, Firefox
Power supply
- 12 VDC, 2 A
- Power consumption: <7 W (without hard drive)
Environment
- Operating temperature: -10 °C ~ +55 °C
- Storage temperature: -20 °C ~ +60 °C
- Humidity: 10%~90% non-condensing
Physical characteristics
- Tabletop installation
- Dimensions: 325.0 × 257.1 × 55.0 mm
- Net weight: 1.21 kg
- Gross weight: 1.85 kg
Content

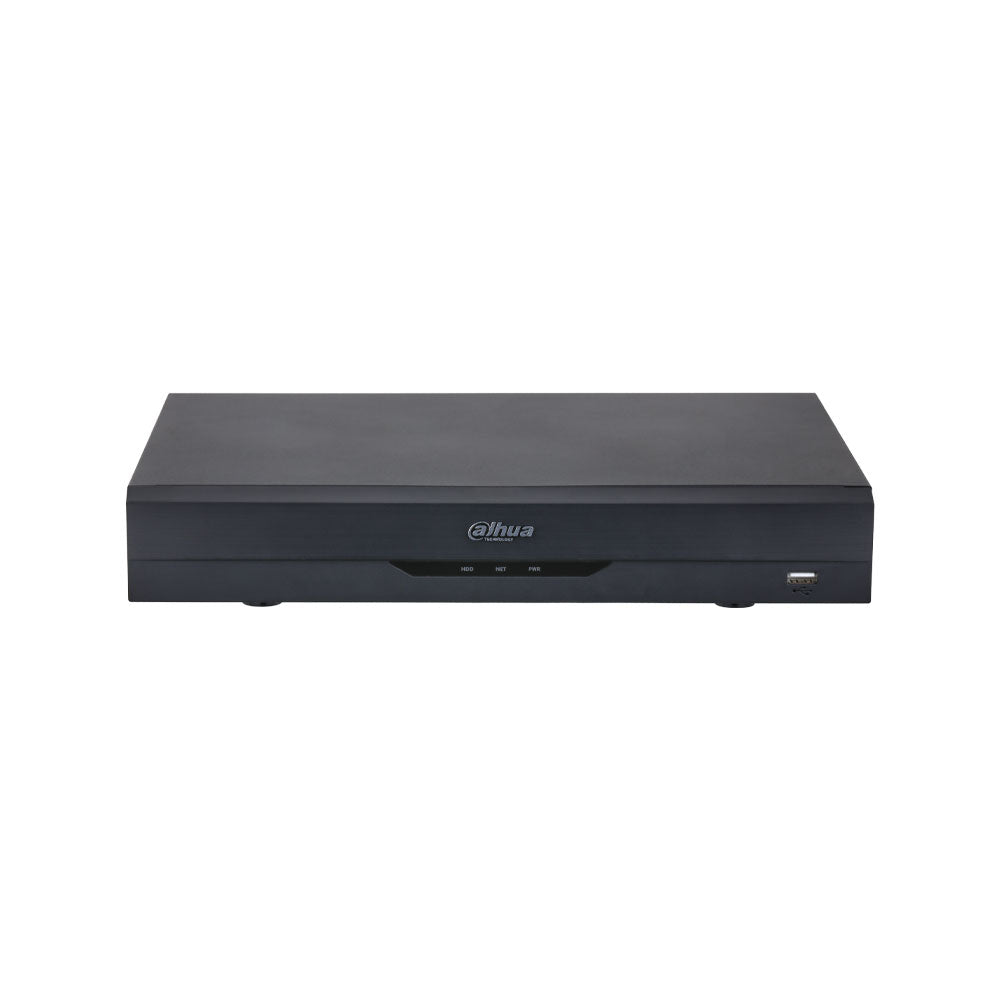

- Dahua 8-channel 5-in-1 XVR DAHUA-5053 (DH-XVR5108HE-I3/T)
Certifications
- CE-LVD: IEC 62368-1:2014
- CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
