Description
Technical specifications

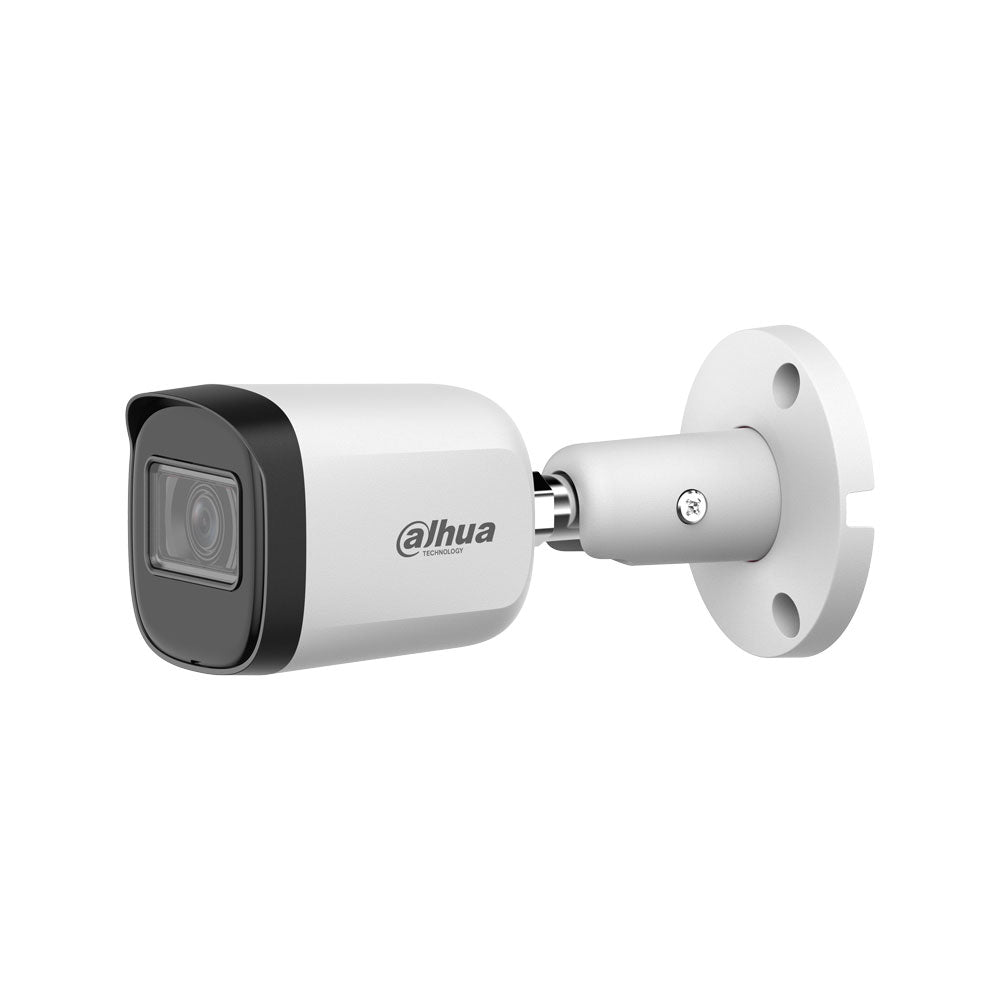

- Dahua Cooper series 4-in-1 bullet camera
- 5 MP CMOS sensor
- Maximum resolution of 5MP (2880×1620)
- Progressive scan system
- Automatic ICR
- Minimum illumination of 0.02 lux@F2.0 in colour (30 IRE)
- Minimum illumination of 0.002 lux@F2.0 in B/W (30 IRE)
- 0 lux with IR activated
- Smart IR with 30 m range
- 3 IR LEDs
- Fixed 2.8 mm lens (F2.0)
- Viewing angle: H 105.5°, V 56.5°, D 125.3°, D 125.3°, D 125.3
Video
- 4-in-1 technologies: CVI, TVI, AHD and CVBS selectable via DIP switch
- Resolutions: 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H (960×576 / 960×480), TVI 5MP 16:9 (2960×1665)
- Frames per second: CVI PAL: 5MP@25fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps; TVI: 5MP 16:9@20fps; AHD: 4MP@25fps; CVBS: 960H (PAL)
- Day/night modes Auto/ICR/Colour/B&W
- BLC, HLC and DWDR
- Automatic or zonal white balance
- Automatic gain control
- 2DNR noise reduction
- Motion detection
- Lighting mode: Smart IR
- Privacy masking in up to 8 rectangular areas.
- Multi-language OSD
Features
- Smart IR for uniform illumination
- Long distance transmission over coaxial cable up to 700 m depending on resolution
Communication interface
- 4-in-1 video output (CVI/TVI/AHD/CVBS) via BNC port
Power supply
- 12 VDC (±30%)
- Maximum power consumption 3.5 W (with IR activated)
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity less than 95% (non-condensing)
- Storage temperature -40°C to +60°C (-40°C to +60°C)
- Storage humidity less than 95% (non-condensing)
- IP67 protection
- Basic corrosion protection level
Physical characteristics
- Metal housing
- Wall, ceiling or vertical pole installation
- Dimensions: 150.0 × 69.7 × 70.0 mm
- Net weight: 0.31 kg
- Gross weight: 0.38 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- Bullet 4 in 1 IR DAHUA-5052 (DH-HAC-B2A51P-U-0280B-S3-DIP)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032 and EN 55035
