Technical characteristics

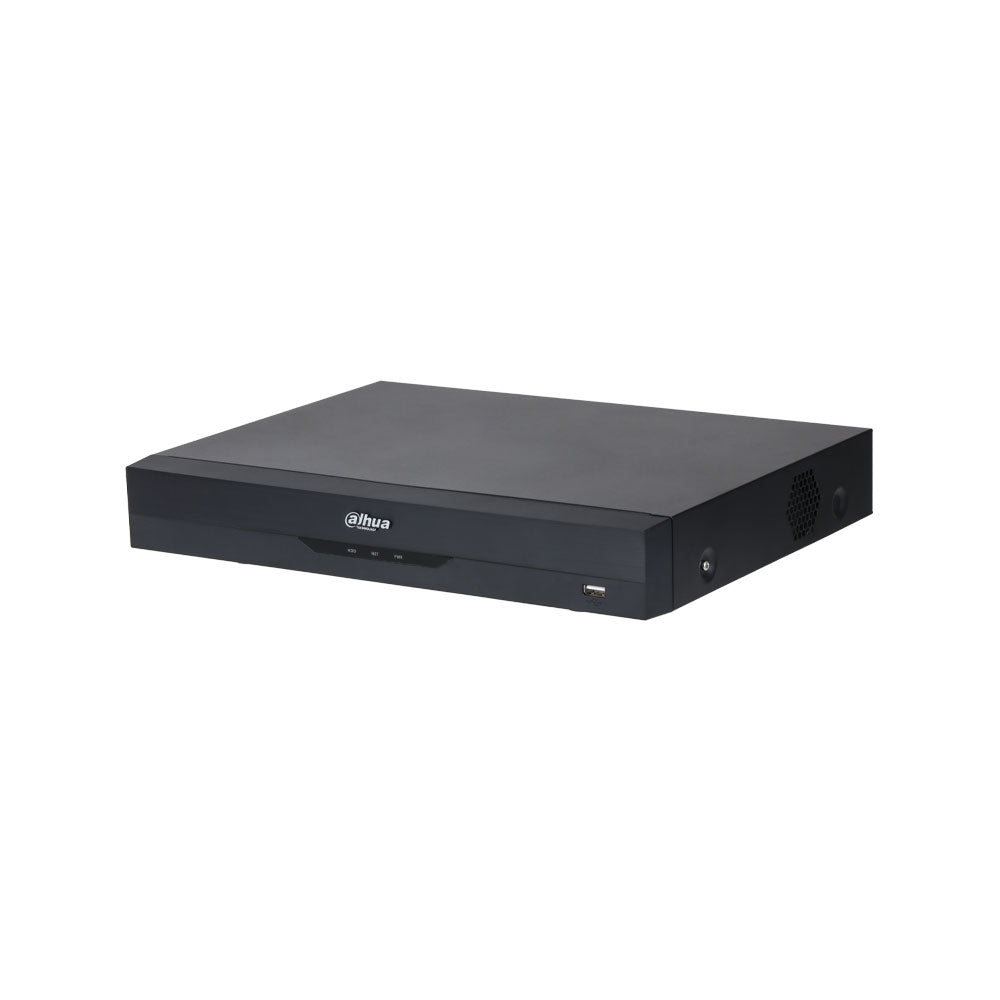

- Dahua 5-in-1 16-channel BNC XVR compatible with HDCVI TVI AHD CVBS and IP
- Supports analog cameras up to 4K and 5MP
- IP inputs up to 32 channels in total, including 16 native and 16 convertible
- 128 Mbps incoming recording and 128 Mbps outgoing bandwidth
- HDMI and VGA video outputs
Video
- 16-channel BNC inputs and up to 32-channel IP inputs
- Recording resolution:
- CVI: 4K@25 fps 4K@15 fps 6MP@20 fps 5MP@25 fps 4MP@25 fps 1080P@25 fps 720P@50 fps
- TVI: 4K@15 fps 5MP@20 fps 4MP@25 fps 3MP@25 fps 1080P@25 fps
- AHD: 4K@15 fps 5MP@20 fps 4MP@25 fps 3MP@25 fps 1080P@25 fps
- Main encoding capacity up to 4K and 6MP depending on channel and configuration
- 960H and D1 subsystem
- HDMI display resolutions up to 3840x2160 and VGA up to 1920x1080
- Multi-screen display up to 16 quadrants in normal mode and up to 36 quadrants in IP mode
- Synchronized playback 1 4 9 16
- AI Coding Smart Video Codecs H.265+ H.265 Smart H.264+ H.264+ H.264
Smart functions
- SMD Plus from the recorder on 16 channels with person and vehicle filtering
- SMD from the camera on 32 channels
- Perimeter protection from the recorder on 8 channels with tripwire and intrusion
- AcuPick from the recorder on 8 channels
- Facial recognition from a 4-channel recorder with databases containing up to 20,000 images
Audio
- 16-channel RCA audio inputs and 16-channel coaxial audio
- 1-channel RCA audio output
- Two-way audio via coaxial and network
- PCM G.711a G.711u compression
Storage
- 1 SATA port for hard drive up to 16 TB (not included)
Alarms
- 16-channel alarm inputs
- 3-channel alarm outputs
- Smart alarms by facial detection, perimeter protection, and SMD Plus
- Anomaly alarms in case of disk failure, network conflict, IP loss, or video tampering
Communication interface
- RS485 for PTZ control
- USB ports 1 USB 2.0 at the front and 1 USB 3.0 at the rear
Network
- RJ45 10 100 1000 Mbps network interface
- Protocols HTTP HTTPS TCP IP IPv4 IPv6 RTSP UDP NTP DHCP DNS SMTP UPnP IP Filter FTP DDNS SNMP Alarm Server P2P Auto Registration IP Search
- ONVIF Profile S T G CGI SDK ONVIF Support
- Mobile access iOS and Android
- Browsers Chrome IE Safari Edge Firefox
Power supply
- 12 VDC 3 A
- Power consumption less than 15 W without disk
Environment
- Operating temperature -10°C to +55°C (-10°F to +55°F)
- Operating humidity 10% to 90% non-condensing
Physical characteristics
- Desktop installation
- Mini 1U format
- Dimensions: 325 x 257.1 x 55 mm
- Net weight: 1.46 kg
- Gross weight: 2.27 kg
Content
- Dahua 5-in-1 16-channel XVR DAHUA-5050 (DH-XVR5116HE-4KL-I3/T)
Certifications
- CE-LVD IEC 62368-1
- CE-EMC EN 61000-3-2 EN 61000-3-3 EN 55032 EN 55035 EN 55024 EN 50130-4
