Description
Technical Specifications

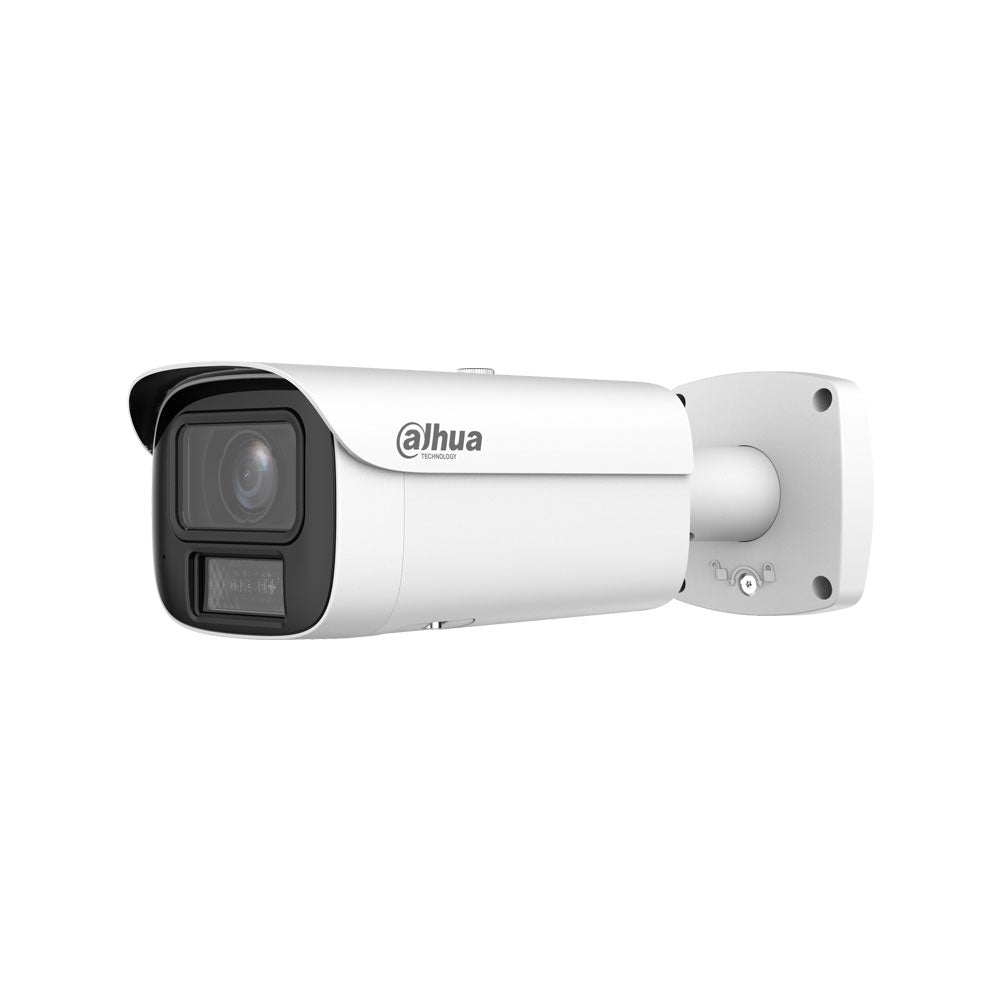

- Dahua WizMind 5 Series Bullet Type IP Camera Smart Dual Light
- 1/1.8 Progressive CMOS Sensor
- Maximum resolution of 8MP (3840×2160)
- ICR with day-night, color, and black and white modes
- Minimum illumination 0.0008 lux F1.8 in color and 0.0004 lux in black and white
- IR illumination up to 60 m and warm light up to 60 m
- Smart Dual Light illuminators with automatic manual control and zoom control
- 2.7-12 mm F1.8 motorized varifocal lens
- Viewing angle H 113°-47° V 60°-23° D 133°-53° WDR 120 dB, BLC, HLC, 3D NR, SSA, EIS
- WDR 120 dB, BLC, HLC, 3D NR, SSA, EIS
Video Stream
- Codecs H.265 H.264 H.264H H.264B and MJPEG in sub-stream
- AI H.265 and AI H.264 encoding with Smart H.265+ and Smart H.264+
- Stream 1: 8MP@25/30 ips
- Stream 2: D1@25/30 ips
- Stream 3: 1080P@25/30 ips
- Stream 4: 720P@25/30 ips
- Up to 4 simultaneous streams
Features
- ROI up to 4 areas
- Image rotation 0° 90° 180° 270°
- Privacy with mosaic masks or color blocks
- Digital defog and LDC
Smart Functions
- IVS perimeter protection with intrusion and tripwire with classification of people, vehicles and animals
- SMD 4.0 with advanced false alarm filtering
- AcuPick with smart target search
- Face detection with attribute extraction and capture optimization
- Face recognition
- People counting by line zone and queue with reports
- Heat map
- Video metadata of people, faces and vehicles
Audio
- Built-in microphone
- 1 channel RCA audio input
- 1 channel RCA audio output
- Two-way audio
- G.711a G.711u PCM G.726 G.723 Compression
Storage
- Micro SD slot up to 1 TB (card not included)
- Support for NAS and FTP SFTP recordings
Alarms
- 2 channel alarm inputs
- 1 channel alarm output
- Smart events by IVS SMD face detection people count and metadata
Communication Interface
- RS485 port for control and external devices
Network
- RJ45 10/100 Base-T network interface
- Protocols IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Registration
- ONVIF Profile S G T M CGI SDK
- DSS DMSS DoLynk Care Software
- iOS and Android mobile access
Power Supply
- 12 VDC (±30%)
- PoE+ 802.3at and ePoE
- Maximum power consumption 22.1 W
Environmental Protection
- IP67 and IK10 protection
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Humidity up to 95% non-condensing
Physical Characteristics
- Metal housing
- Wall, ceiling or pole installation using optional mounts
- Dimensions: 279.8 × 96.7 × 94.9 mm (279.8 × 96.7 × 94.9 mm)
- Net weight: 1.09 kg
- Gross weight: 1.39 kg
- 3AXIS: pan 0°-360°, tilt 0°-90°, rotation 0°-360°
Contents
- Smart Dual Light WizMind IP Camera DAHUA-5048 (DH-IPC-HFW5859E1P-ZE-IL-2712)
Certifications
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
