Technical specifications

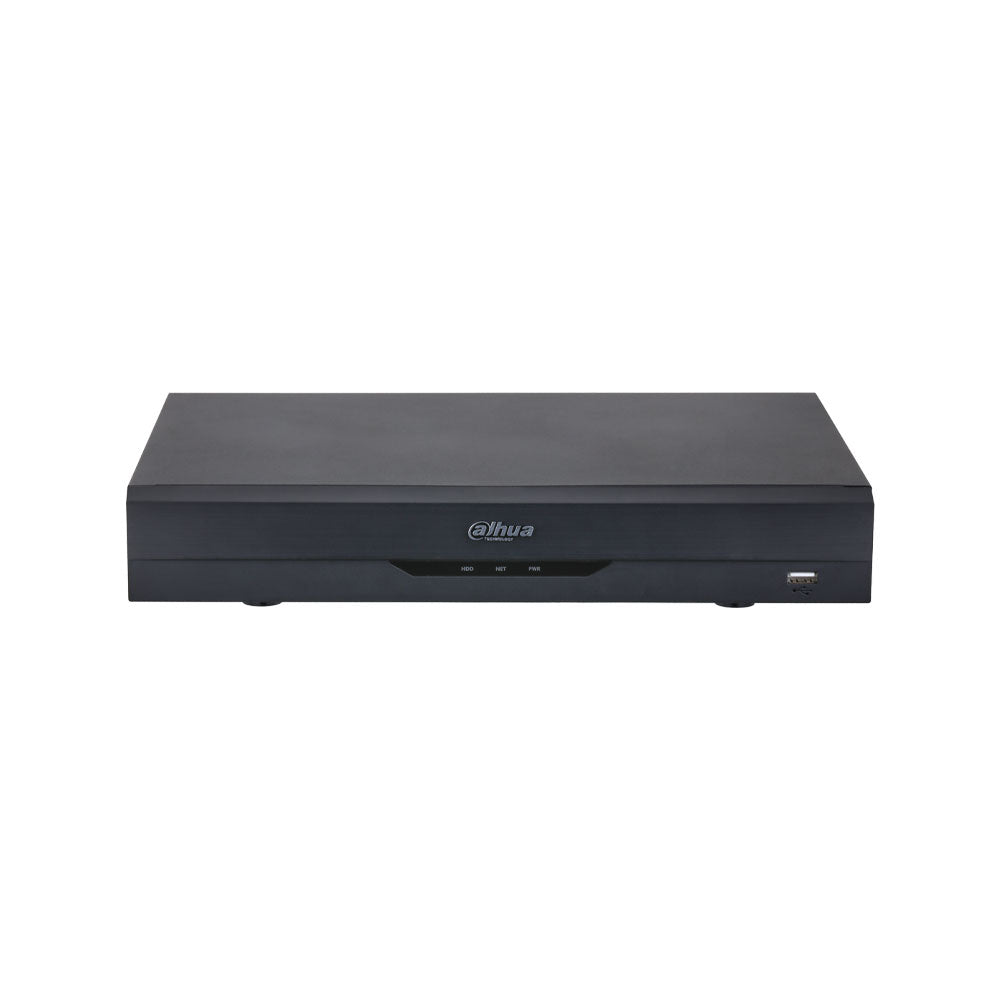

- Dahua 8-channel 5-in-1 XVR compatible with HDCVI TVI AHD CVBS and IP
- 8 BNC inputs with automatic signal detection
- Up to 16 total IP channels (8 native + 8 convertible)
- 128 Mbps bandwidth for input, recording, and output
- 1 HDMI output and 1 VGA output
Video
- BNC inputs: 8 channels
- IP inputs: up to 16 channels
- Recording resolution:
- CVI: 4K@25/30 fps, 4K@12.5/15 fps, 6MP@20 fps, 5MP@25 fps, 4MP@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps, 720P@50/60 fps
- TVI: 4K@15 fps, 5MP@20 fps, 4MP@25/30 fps, 3MP@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
- AHD: 4K@15 fps, 5MP@20 fps, 4MP@25/30 fps, 3MP@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
- Main encoding capability up to 4K depending on channel and configuration
- 960H and D1 subsytem
- HDMI display resolution up to 3840x2160 and VGA up to 1920x1080
- Multi-screen display 1/4/8/9 (1/4/8/9/16 in extended IP mode)
- Synchronized playback 1/4/9
- AI Codecs AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Smart features
- 8 channels with AcuPick from the recorder
- 8 channels with perimeter protection from the recorder
- 4 channels with facial recognition from the recorder
- 8 channels with SMD Plus from the recorder
- 16 channels with SMD from the camera
- 8 channels with AI Coding from the recorder
Audio
- 8 RCA audio inputs
- 8 audio channels via coaxial
- 1 RCA audio output
- Two-way audio via coaxial and network
Storage
- 1 SATA port up to 16 TB (not included)
Alarms
- Supports motion detection alarms, HDCVI alarms, external camera alarms, and network alarms
- Smart face detection, face recognition, perimeter protection, and SMD Plus alarms
- Anomaly alarms for disk failure, video loss, IP conflict, or network disconnection
Communication interface
- RS-485 for PTZ control
- 2 USB ports (1 USB 2.0 front, 1 USB 3.0 rear)
Network
- 1 RJ45 10/100/1000 Mbps port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filter, FTP, DDNS, SNMP, alarm server, P2P, auto recording, IP search
- ONVIF Profile T, Profile S, Profile G, CGI, SDK
- Mobile access iOS and Android
Power supply
- 12 VDC, 2 A
- Power consumption less than 10 W without disk
Environment
- Operating temperature -10°C to +55°C (-10°F to +55°F)
- Humidity 10% to 90% non-condensing
Physical characteristics
- Desktop installation
- Mini 1U format
- Dimensions: 325.0 × 257.1 × 55.0 mm
- Net weight: 1.25 kg
- Gross weight: 1.86 kg
Content
- Dahua 8-channel 5-in-1 XVR DAHUA-5041 (DH-XVR5108H-4KL-I3/T)
Certifications and standards
- CE-LVD IEC 62368-1
- CE-EMC EN IEC 61000-3-2, EN 61000-3-3, EN 55032, EN 55035, EN 55024, EN 50130-4
