Description
Technical Specifications

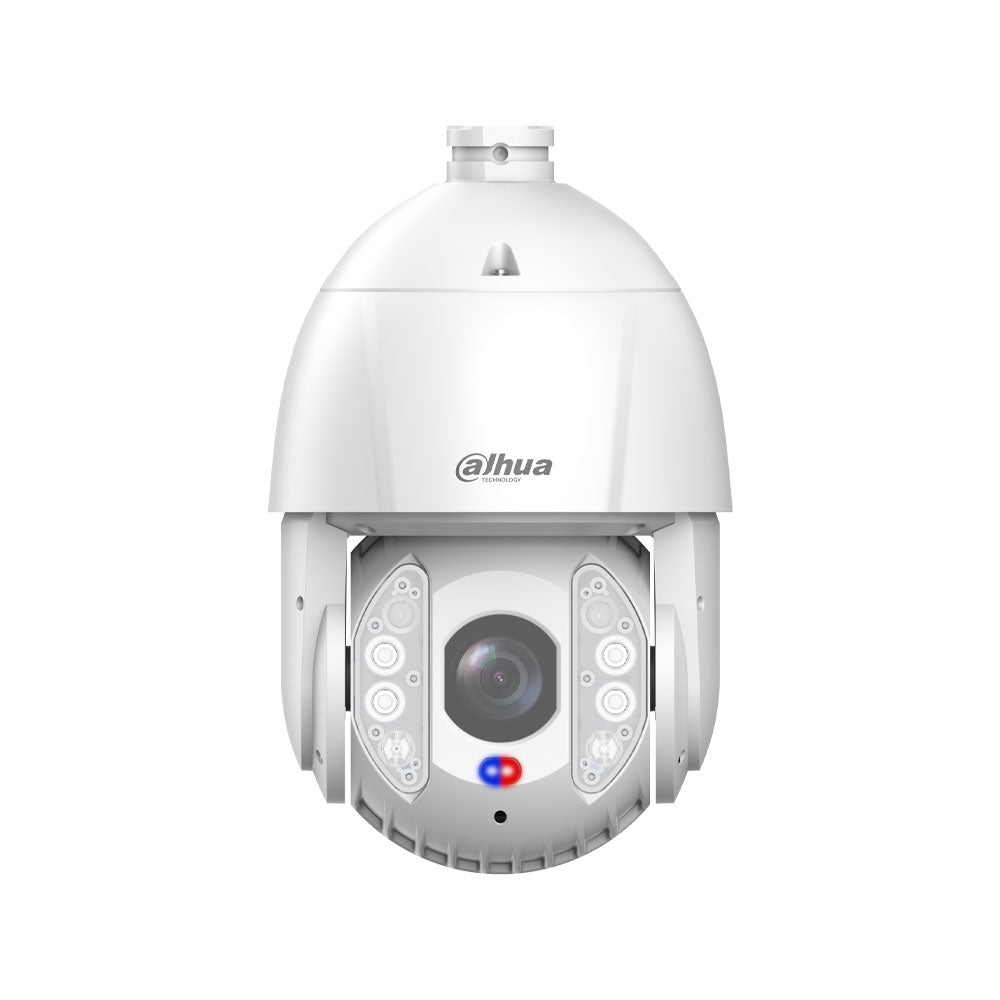

- Dahua WizSense PTZ Dome IP Camera
- Image Sensor: 1/2.8" STARVIS™ CMOS
- Max Resolution: 2 MP (1920 × 1080)
- Electronic Shutter Speed: 1 s - 1/30000 s
- Scanning System: Progressive
- Minimum Illumination: 0.005 lux@F1.6 (color), 0.0005 lux@F1.6 (B/W), 0 lux with illuminator
Video Stream
- Video Codecs: Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub-stream 1)
- Number of Streams: 3
- Supported Resolutions: 1080P (1920×1080), 960P (1280×960), 720P (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240)
- Stream 1: 1080P/1.3M/720P @ 1-50/60 fps
- Stream 2: D1/VGA/CIF @ 1-25/30 fps
- Stream 3: 1080P/1.3M/720P @ 1-25/30 fps
- Bit Rate Control: CBR / VBR
Features
- Optical Zoom: 32x
- Digital Zoom: 16x
- IR Illumination Distance: Up to 250 m
- White Light Illumination Distance: Up to 100 m
- White Balance: Auto, indoor, outdoor, tracking, manual, sodium lamp, daylight, street lamp
- WDR: 120 dB
- BLC and HLC
- Noise Reduction: 2D NR, 3D NR
- Electronic Image Stabilization (EIS)
- Electronic Defog
Smart Functions
- IVS Perimeter Protection: Tripwire, intrusion, loitering, abandoned/missing object, fast moving detection, parking detection, people gathering
- AutoTracking 3.0
- SMD 4.0
- AcuPick
- Face detection with attribute extraction
Audio
- Audio Compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723
- Built-in speaker
Storage
- Micro SD card slot up to 512 GB
- Network Storage: FTP, SFTP, NAS
Alarms
- 2 alarm inputs
- 1 alarm output
Communication Interface
- RS-485
- Audio Input: 1 channel
- Audio Output: 1 channel
Network
- Network Interface: RJ45 10/100 Base-T
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS
- Compatibility: ONVIF (profiles S, G, and T), CGI, SDK
Power Supply
- 24 VDC ±25%.
- PoE+ (802.3at)
- Power Consumption: 12 W typical, 19 W maximum
Environment
- Operating Temperature: -40 °C to +70 °C
- Relative Humidity: ≤95%.
- Protection: IP67, IK10, surge and impact protection.
Physical Characteristics
- Dimensions: 208 × 202 × 325 mm
- Net Weight: 4.45 kg
- Gross Weight: 6.62 kg
Content
- PTZ Dome IP Camera DAHUA-5037 (DH-SD6E232MB-HNR-A-PV1)
- Wall bracket
- 24 V DC power adapter
Certifications
- CE EN55035, EN55032, EN60950, EN62368-1
