Description
Technical characteristics

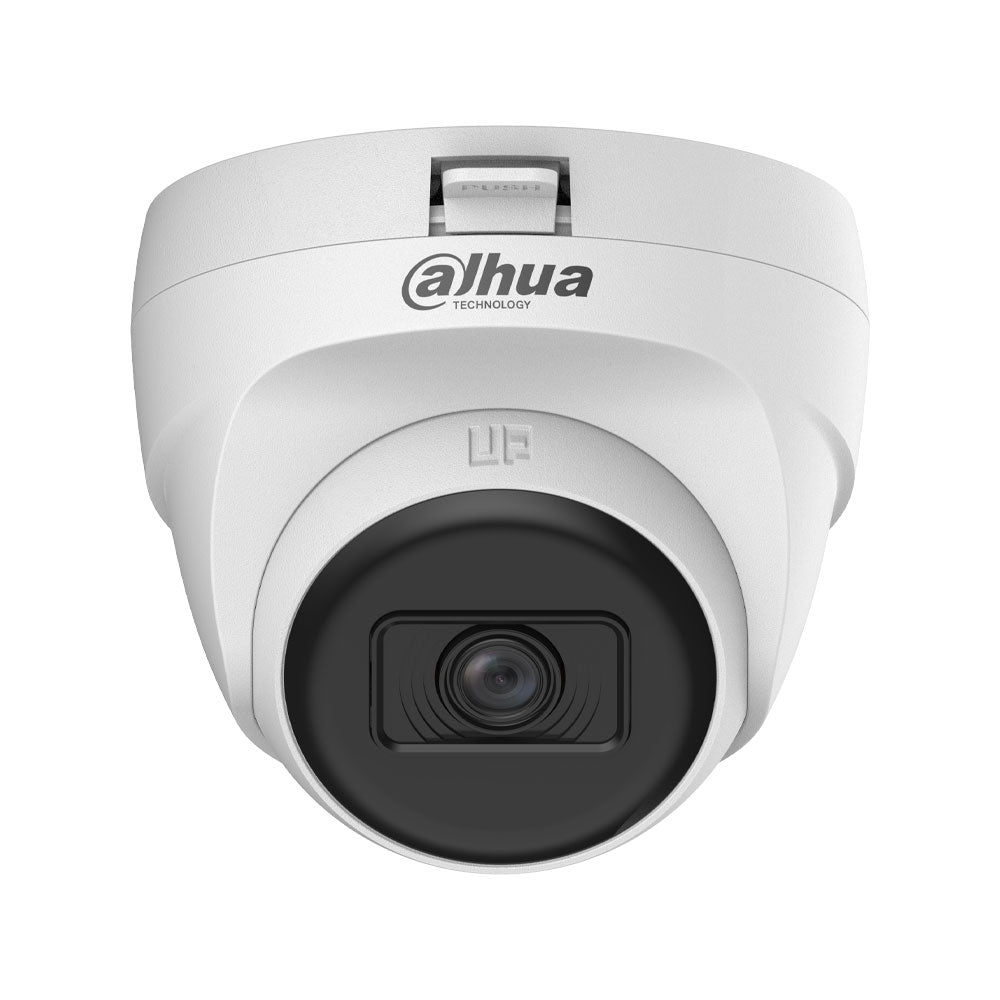

- Dahua 4-in-1 dome
- 5 MP CMOS sensor
- Maximum resolution of 5MP (2880×1620)
- Progressive scanning system
- Automatic ICR
- Minimum illumination of 0.02 lux@F2.0 in color (30 IRE)
- Minimum illumination of 0.002 lux@F2.0 in black and white (30 IRE)
- 0 lux with IR activated
- Smart IR with a range of 25 m
- 2 IR LEDs
- 2.8 mm fixed lens (F2.0)
- Viewing angle: H 105.5°, V 56.5°, D 125.3°, D 125.3
Video
- 4-in-1 technologies: CVI, TVI, AHD and CVBS selectable by DIP switch
- Resolutions: 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H (960×576 / 960×480), TVI 5MP 16:9 (2960×1665)
- Frames per second: CVI PAL: 5MP@25fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps; TVI: 5MP 16:9@20fps; AHD: 4MP@25fps; CVBS: 960H (PAL)
- Day/night modes Auto/ICR/Color/B&W
- BLC, HLC and digital WDR
- Automatic or zone white balance
- Automatic gain control
- 2DNR noise reduction
- Motion detection
- Lighting mode: Smart IR
- Privacy masking in a maximum of 8 rectangular zones.
- Multilingual OSD
Features
- Smart IR for uniform illumination and distance compensation
- Quick installation thanks to a quick-release mounting base
- Long distance coaxial transmission up to 700
Communication interface
- 4-in-1 video output (CVI/TVI/AHD/CVBS) via a BNC port
Power supply
- 12 VDC (±30%)
- Maximum power consumption 2.5 W (with IR activated)
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity below 95% (non-condensing)
- Storage temperature -40 °C to +60 °C (-40 °C to +60 °C)
- Storage humidity below 95% (non-condensing)
- IP67 protection
- Basic corrosion protection level
Physical characteristics
- Plastic housing
- Wall, ceiling or vertical pole installation
- Device dimensions Ø85.0 × 77.1 mm
- Net weight: 0.13 kg
- Gross weight: 0.19 kg
- 3AXIS: pan 0°~360°, tilt 0°~78°, rotation 0°~360°
Content
- 4-in-1 IR dome DAHUA-5030 (DH-HAC-T1A51P-U-0280B-S3-DIP)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032 and EN 55035
