Technical Specifications
- Dahua WizMind IP Dome with 4MP resolution (2688×1520)
- 1/1.8" Progressive Scan CMOS Sensor
- Auto ICR Day/Night, Color, and Black and White modes
- Minimum illumination 0.0007 lux in color, 0.0004 lux in black and white, and 0 lux with illuminator
- IR up to 60 m and warm light up to 50 m
- Multi-conductor illumination with 4 IR LEDs + warm light
- Motorized 2.7~12 mm F1.8 optics
- Auto iris
- Viewing angle: H 115°~47°, V 62°~27°, D 137°~54°
- Minimum focus distance 0.13 m
- Electronic shutter 1/3 s~1/100,000 s
- Signal-to-noise ratio >56 dB
Video Stream
- H.265, H.264, H.264H, H.264B, and MJPEG (substream only) compression
- AI H.265 and AI H.264 with Smart H.265+ and Smart H.264+ codecs
- Stream 1: 2688×1520 @1~25/30 fps
- Stream 2: 704×576/480 @1~25/30 fps
- Stream 3: 1920×1080 @1~25/30 fps
- Stream 4: 1280×720 @1~25/30 fps
- Additional resolutions: 2560×1440, 2304×1296, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576/480, 640×480, 352×288/240
- Bitrate 3~16384 kbps at CBR/VBR
Features
- 140 dB WDR, BLC, HLC, 3D NR, and SSA adaptation
- EIS electronic stabilization
- Motion detection in 4 zones
- RoI regions in 4 zones
- Smart illumination and Smart Dual Light
- Defog function
- Image rotation 0°/90°/180°/270°
- LDC correction and privacy masking
Smart Features
- Perimeter protection for intrusion, line crossing, rapid movement, loitering, parking, and immobility
- Self-learning classification of people, vehicles, and animals
- SMD 4.0
- AcuPick
- Face detection with capture, optimization, and attribute extraction
- People counting by line and area with reports
- Heatmap
- Video metadata for vehicles, non-vehicles, people, and faces
Audio
- Built-in microphone
- 1 RCA audio input and 1 RCA audio output
- G.711a, G.711Mu, PCM, G.726, and G.723 compression
Storage
- Micro SD up to 1 TB (card not included)
- NAS with NFS and SAMBA
- FTP and SFTP
Alarms
- 2 alarm inputs
- 1 alarm output
- Network, SD, IVS, SMD, face, metadata, counting, queue, security, and fuzzy events
Network
- RJ45 10/100 Base-T enhancement
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, and auto-registration
- ONVIF S, G, T, and M profiles and CGI
- DSS, DMSS, and DoLynk Care software
- Browsers IE 11, Chrome 102, and Firefox 88 or higher
- Security with Digest, WSSE, X.509, HTTPS, 802.1x, secure boot and execution, and security logging
Power
- 12 Vdc (±30%) / PoE+ IEEE 802.3at / ePoE
- Basic consumption 4.1 W (12 VDC) and 4.8 W (PoE)
- Maximum consumption 20.6 W (12 VDC) and 22.1 W (PoE)
Environment
- Operating temperature -40 °C~+60 °C
- Humidity ≤95% non-condensing
- IP67 and IK10 protection
Physical Characteristics
- Vandal-resistant metal housing
- Dimensions 118 mm × Ø159 mm
- Net weight 1.16 kg
- Gross weight 1.36 kg
- 3-AXIS: Pan 0°~355°, Tilt 0°~80°, Rotation 0°~355°
Contents

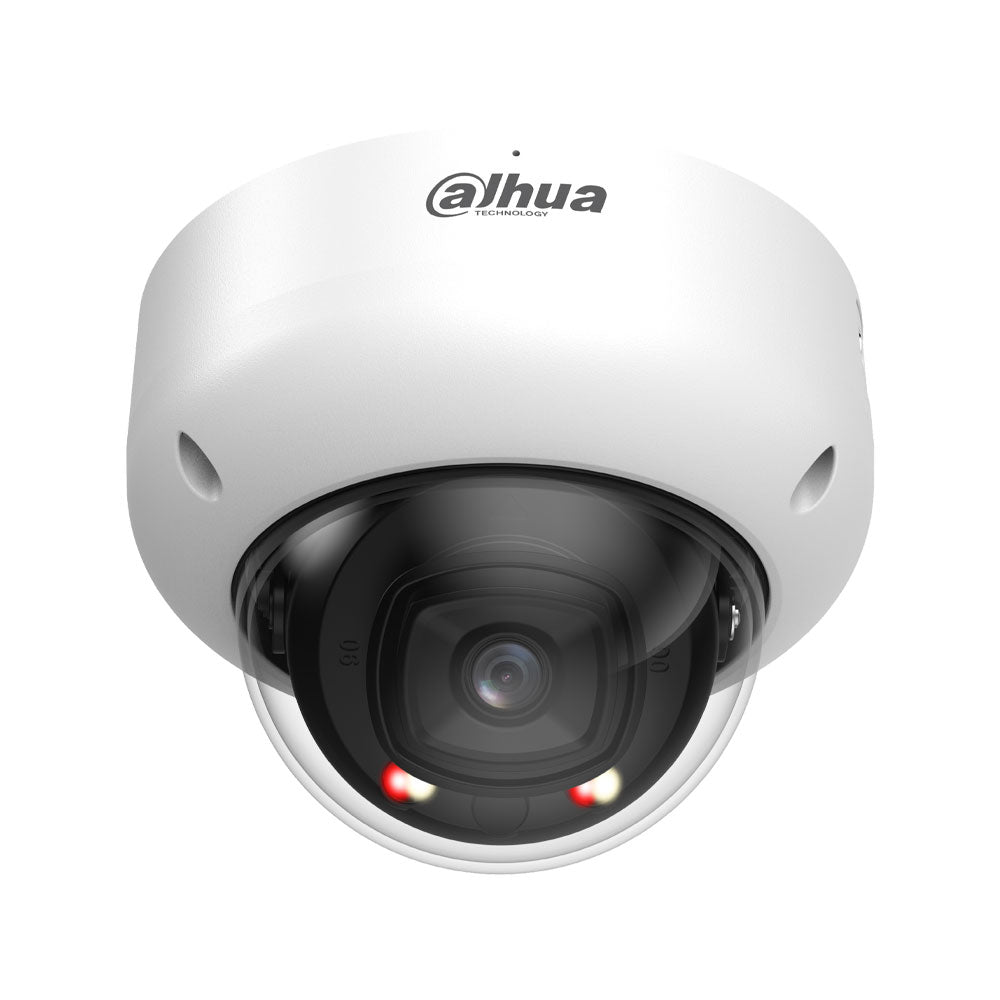

- 4MP Smart Dual Light Varifocal IP Dome DAHUA-5027 (DH-IPC-HDBW5459E1P-ZE-IL-2712)
Certifications
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
