Description
Technical specifications

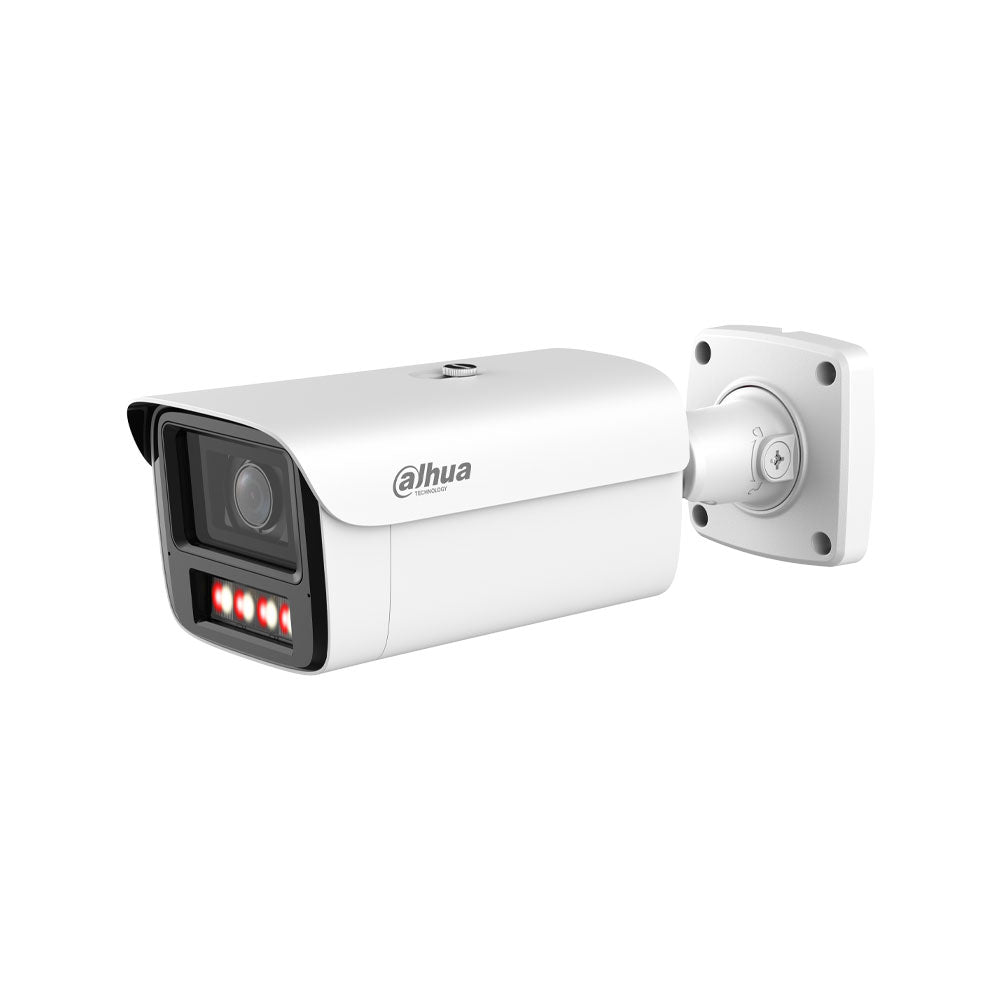

- Dahua WizMind 5 Bullet IP Camera with 4MP resolution (2688×1520)
- 1/1.8" progressive scan CMOS sensor
- Automatic ICR day/night, color and black and white modes
- Minimum illumination 0.0007 lux in color, 0.0004 lux in black and white and 0 lux with illuminator
- IR up to 120 m and warm light up to 80 m
- Multi-conductor lighting with 4 IR LEDs + warm light
- Motorized optics 8~32 mm F1.6
- P-Iris control
- Viewing angle: H 41°~16°, V 23°~9°, D 48°~18°, D 48°~18°.
- Minimum focus distance: 1.5 m
- Shutter 1/3 s~1/100,000 s
- Signal-to-noise ratio >56 dB
Video streams
- H.265, H.264 and MJPEG compression (sub-stream only)
- AI H.265 and AI H.264 with Smart H.265+ and Smart H.264 codecs
- Stream 1: 2688×1520 @1~25/30 fps
- Stream 2: 704×576/480 @1~25/30 fps
- Stream 3: 1920×1080 @1~25/30 fps
- Stream 4: 1280×720 @1~25/30 fps
- Additional resolutions: 2560×1440, 2304×1296, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576/480, 640×480, 352×288/240
- Bitrate 3~16384 kbps at CBR/VBR
Features
- 140 dB WDR, BLC, HLC, 3D NR and SSA adaptation
- EIS image stabilization
- Motion detection in 4 zones
- Original regions in 4 zones
- Smart lighting and Smart Dual Light
- Active deterrence with flashing or fixed warm light (5~30 s)
- Active deterrence with customizable sound warnings
- Defogging function and window heating
- Rotation 0°/90°/180°/270°.
- LDC correction and privacy masking
Smart functions
- Perimeter protection with intrusion, line crossing, rapid movement, loitering, parking and immobilization
- Self-learning classification of people, vehicles and animals
- AcuPick for precise target search
- SMD 4.0
- Face detection with capture, optimization and attribute extraction
- People counting by line and by zone with reports
- Heatmap
- Video metadata for vehicles, non-vehicles, people and faces
Audio
- Dual built-in microphone
- Built-in speaker
- 1 RCA audio input and 1 RCA audio output
- G.711a, G.711Mu, PCM, G.726 and G.723 compression
- 11 preset audio prompts and up to 10 customizable audio prompts
Storage
- Micro SD slot up to 1 TB (card not included)
- NAS with NFS and SAMBA
- FTP and SFTP
Alarms
- 2 alarm inputs
- 2 alarm outputs
- Network, SD, IVS, SMD, SMD, face, metadata, counting, queue, security and fuzzy events
Communication interface
- RS-485
Network
- RJ45 10/100 Base-T
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and auto-registration
- ONVIF S, G, T and M profiles and CGI
- DSS, DMSS and DoLynk Care software
- IE 11, Chrome 102 and Firefox 88 or higher browsers
- Security with X.509 certificates, HTTPS, 802.1x and security registration
Power supply
- 12 VDC (±30%) / PoE+ IEEE 802.3at / ePoE
- 12 VDC power output (165 mA max., 700 mA peak)
- Basic consumption 5.3 W (12 VDC) and 6.4 W (PoE)
- Maximum consumption 21.3 W (12 VDC) and 24.2 W (PoE)
Environment
- Operating temperature -40°C~+60°C (-40°F~+60°F)
- Humidity ≤95% non-condensing
- IP67 and IK10 protection
Physical characteristics
- Metal casing
- Dimensions 302.6 mm × 110.8 mm × 99.1 mm
- Net weight 1.65 kg
- Gross weight 2.21 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- WizColor Vari-Focal 4MP Bullet IP Camera DAHUA-5025 (DH-IPC-HFW5459ZP-ZHE-PV-0832-PRO)
Certifications
- CE-LVD EN62368-1
- CE-EMC Directive 2014/30/EU
