Description
Technical characteristics
- Dahua 5-in-1 XVR
- BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 32 channels (16 native + 16 convertible)
- Supported resolution: up to 4K@15 fps and 5MP@25 fps
- Video output: HDMI 4K and VGA 1080P
Video
- BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS)
- IP inputs: up to 32 channels (16 native + 16 convertible); 256 Mbps incoming bandwidth
- Recording resolution:
- CVI: 4K (25/30 fps, 12.5/15 fps), 6MP (20 fps), 5MP (25/20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 4K (15 fps), 5MP (2560×1944/2960×1665 @20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Main encoding capacity:
- Channel 1: 4K@15 fps, 6MP@20 fps, 5MP@25 fps
- Channels 2-16: 4K@7 fps, 6MP@10 fps, 5MP@12 fps
- Additional modes: 4K-N/5MP@1~15 fps; 1080P/720P/960H/D1/CIF@1~25/30 fps
- Sub-stream: 960H@1~15 fps, D1/CIF@1~25/30 fps
- Display: HDMI (3840×2160, 1920×1080, 1280×1024, 1280×720); VGA (1920×1080, 1280×1024, 1280×720)
- Multi-screen display: 1/4/8/9/16 quadrants (normal mode); up to 25 quadrants in IP mode
- Synchronous playback: 1/4/9/16 channels
- Video codecs: AI Encoding, Smart H.265+, H.265, Smart H.264+, H.264
Smart features
- 16 channels with SMD Plus from the recorder
- 32 channels with SMD from the camera
- 8 channels with perimeter protection from the recorder
- 4 channels with facial recognition from the recorder
- 4 channels with face detection from the recorder
- 8 channels with AcuPick from the recorder
- 1 channel with EPTZ from the recorder
- 1 channel with scene change detection
- 1 channel with irregular black mask
- 16 channels with image quality analysis
Audio
- 1 RCA input + 16 audio channels via coaxial
- 1 RCA output
- Two-way audio
- Audio over coaxial
Storage
- 1 SATA port, up to 16 TB (disk not included)
Alarms
- General alarms: motion, HDCVI alarm, external IPC alarm, PIR, network alarm
- Anomaly alarms: no disk, disk error, insufficient space, network disconnection, IP/MAC conflict, video loss, tampering.
- Smart alarms: face, facial recognition, perimeter protection, SMD Plus
- Alarm linkage: record, snapshot, IPC alarm output, audio, buzzer, log, preset, email
Communication interface
- 1 RS-485 port
- 2 USB ports (1 USB 2.0 front, 1 USB 3.0 rear)
- 1 HDMI port
- 1 VGA port
- Reset button
Network
- RJ-45 10/100/1000 Mbps port
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, alarm server, P2P, auto-recording, IP search
- Interoperability: ONVIF 25.06 (Profile T, S, G), CGI, SDK
- Compatible with Chrome, IE, Safari, Edge, Firefox
Power supply
- 12 VDC, 2 A
- Power consumption: <10 W (without hard drive)
Environment
- Operating temperature: -10 °C ~ +55 °C
- Storage temperature: -20 °C ~ +60 °C
- Humidity: 10%~90% non-condensing
Physical characteristics
- Tabletop installation
- Dimensions: 260 × 237.8 × 47.6 mm
- Net weight: 1.32 kg
- Gross weight: 1.63 kg
Contents

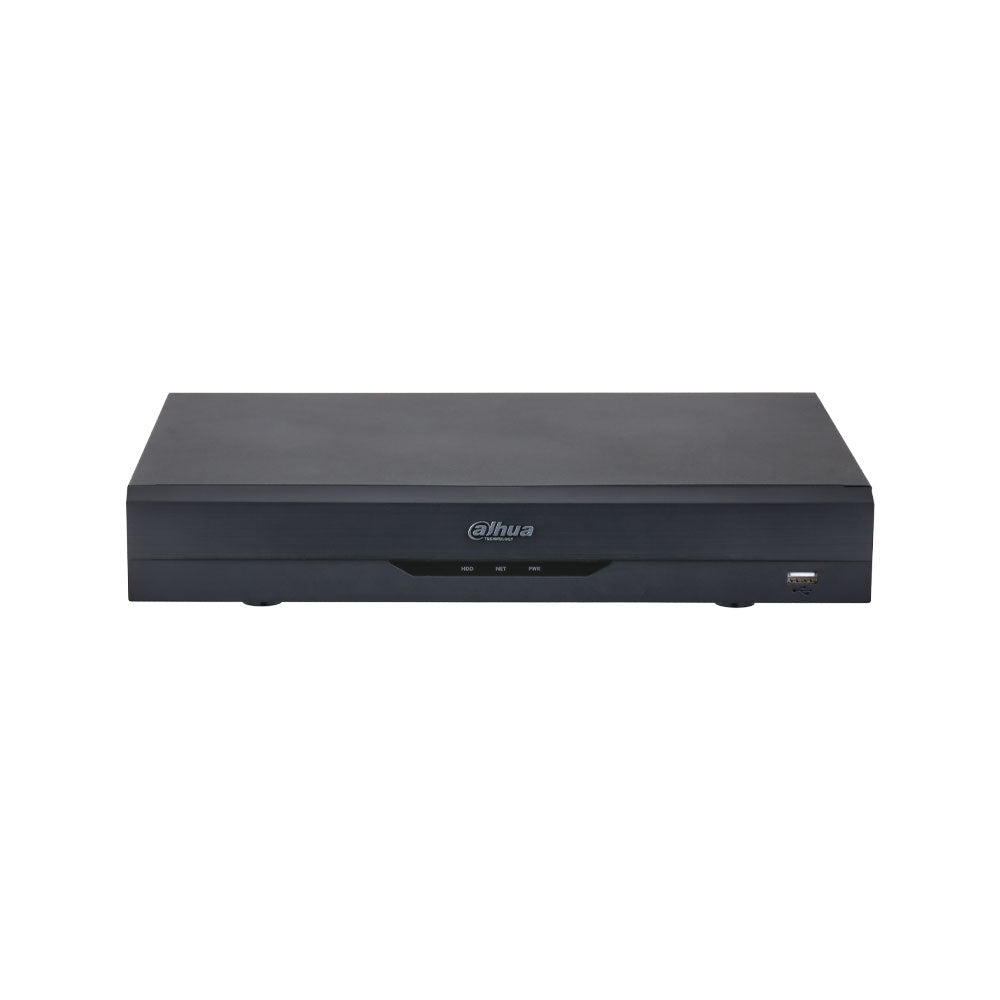

- Dahua 5-in-1 16-channel XVR DAHUA-5024 (DH-XVR5116H-4KL-I3/T)
Certifications
- CE-LVD: IEC 62368-1:2014
- CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
