Technical Specifications

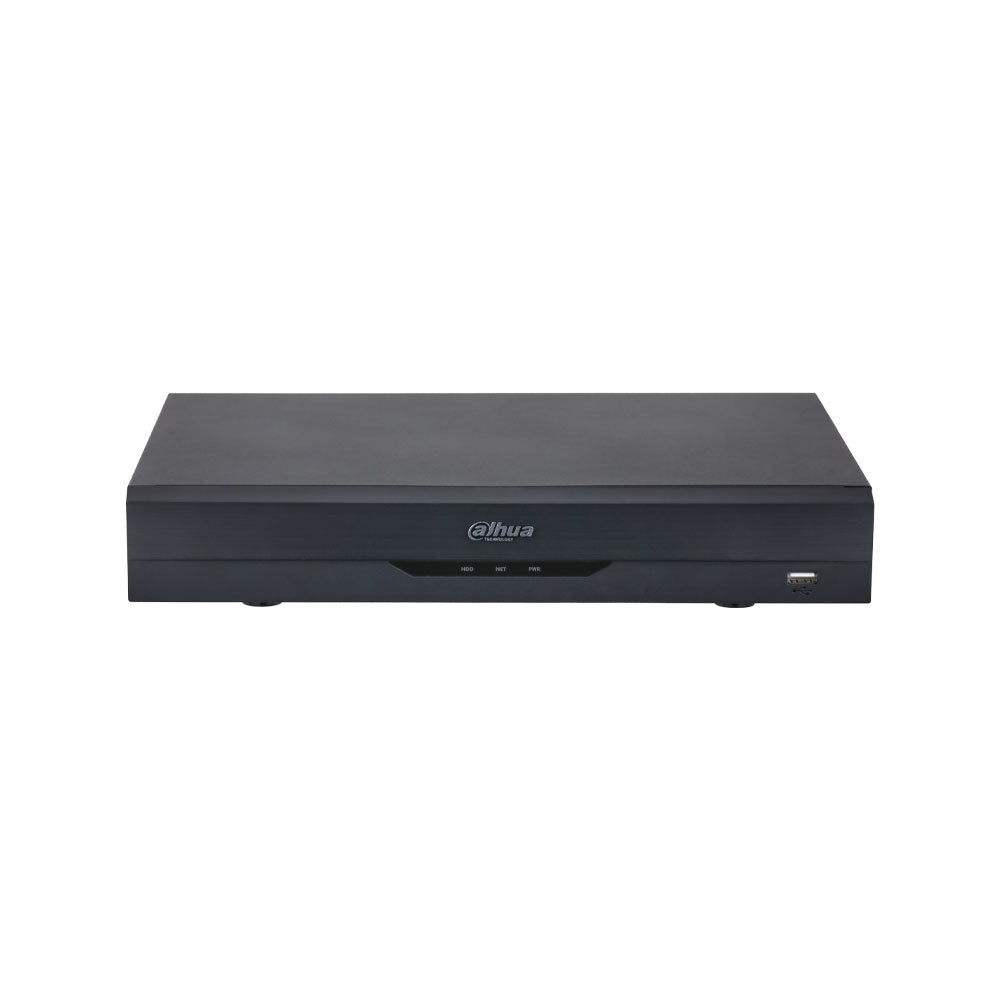

- Dahua WizSense 5-in-1 XVR
- High-performance industrial processor
- Embedded Linux operating system
- Web and local GUI operating interface
- 4 BNC inputs compatible with HDCVI, TVI, AHD, and CVBS with automatic detection
- IP inputs: 2 native IP channels + up to 4 channels convertible from BNC
- Maximum supported resolution: up to 5MP
- Incoming bandwidth: 32 Mbps
- Recording bandwidth: 32 Mbps
- Outgoing bandwidth: 32 Mbps
- Video outputs: 1 HDMI and 1 VGA
Video Inputs
- BNC inputs: 4 HD/CVBS analog channels
- IP inputs: up to 6 channels with a maximum resolution of 6 MP per channel
- Recording resolution:
- CVI: 5MP@25 fps, 5MP@20 fps, 5MP@10/12.5 fps, 4MP@25/30 fps, 1080P@25/30 fps, 720P@25/30/50/60 fps
- TVI: 5MP@20 fps, 5MP@25 fps, 4MP@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
- AHD: 5MP@20 fps, 4MP@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
- Primary encoding capacity with AI Coding, Smart H.265+, H.265, Smart H.264+, and H.264
- Main encoding with Encode Enhancement enabled or disabled depending on configuration
- Sub-stream: D1/CIF up to 15 fps
- Video bitrate configurable between 32 kbps and 6144 kbps
- HDMI and VGA display resolutions: 1920 × 1080, 1280 × 1024, and 1280 × 720
- Multi-screen display: up to 4 quadrants in normal mode / up to 6 quadrants in IP mode
- Synchronous playback: up to 4 channels
Features
- Recording modes: general, alarm, motion detection, and intelligent recording
- Instant playback: general, by event, by tag, and intelligent
- Backup via USB device or network
- Remote access from a web browser and client software
- Compatibility with third-party cameras from Panasonic, Sony, Hanwha, Axis, and Arecont
Smart Functions
- 4 channels with SMD Plus from the recorder for human and vehicle detection
- 6 channels with SMD from the camera
- 4 channels with perimeter protection from the recorder with up to 10 IVS rules per channel
- 2 channels with AcuPick from the recorder
- 2 channels with face detection from the recorder
- 2 channels with facial recognition from the recorder
- Facial attributes: up to 6 attributes
- Facial database capacity: up to 10 databases with 10,000 images
- Video quality analysis from the recorder on 4 channels
- Scene change detection from the recorder on 1 channel
- Detection of irregular black block masking on 1 channel
Audio
- Audio input: 1 RCA channel
- Audio output: 1 RCA channel
- Audio over coaxial: 4 channels
- Two-way audio over coaxial
- Two-way local and network audio by sharing the input of the first channel
- Audio sampling rate: 8 kHz
- Audio bitrate: 64 kbps
- Audio compression: G.711a, G.711u, and PCM
Storage
- 1 SATA interface
- Maximum hard drive capacity: up to 16 TB
Alarms
- General alarms for motion detection, camera alarm, and network alarm
- Anomaly alarms for disk failure, insufficient space, network disconnection, and IP conflict
- Video loss and deterioration alarms
- Smart alarms for face detection, facial recognition, perimeter protection, and SMD Plus
- Alarm actions: record, snapshot, audio, audible alarm, log, preset, and email.
Communication Interface
- RS-485
- 2 USB 2.0 ports
Network
- RJ45 10/100 Mbps Ethernet interface
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filter, FTP, DDNS, SNMP, alarm server, P2P, automatic recording, IP search
- ONVIF 24.12 support with S, G, and T profiles
- Interoperability via CGI and SDK
- Mobile access from iOS and Android
- Supported browsers: Chrome, IE, Safari, Edge, and Firefox
Power Supply
- 12 V DC
- Power consumption less than 5 W without hard drive
Environment
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 10 %-90 % non-condensing
Physical Characteristics
- Installation: desktop
- Dimensions: 325.0 × 257.1 × 55.0 mm
- Net weight: 1.29 kg
- Gross weight: 1.71 kg
Content
- Dahua DAHUA-5018 5-in-1 XVR Recorder (DH-XVR5104H-I3/T)
Certifications
- CE-LVD IEC 62368-1
- CE-EMC EN 61000-3-2, EN 61000-3-3-3, EN 55032, EN 55035, EN 55024, EN 50130-4
