Description
Technical specifications

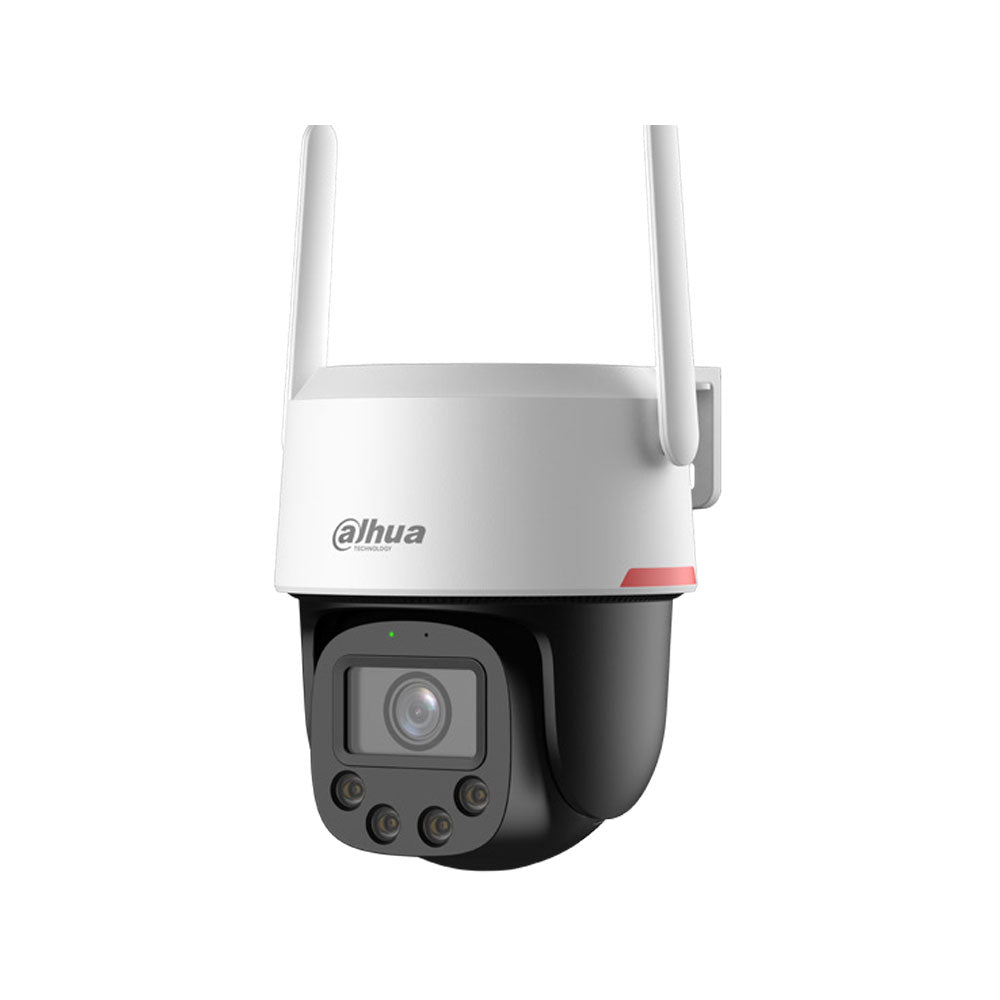

- Dahua WizColor PRO IP 4G PT-Type Camera
- 1/1.8" CMOS sensor and maximum resolution of 2560 × 1440 (4 MP)
- Minimum illumination of 0.0005 lux@F1.0 (color, 30 IRE); 0 lux with illuminator on
- 30m white LED illumination (4 LEDs)
- Auto ICR
- 4mm fixed lens at F1.0
- Viewing angle: H 97°, V 52°, D 114° PTZ range: Pan 0°, V 52°, D 114° PTZ range: Pan 0°, D 114°, D 114
- PTZ range: Pan 0°~345°, Tilt 0°~90°, Tilt 0°~90°, PTZ range: Pan 0°~345°, Tilt 0°~90°
Video
- Smart H.265+, H.265, Smart H.264+, H.264B/M/H, MJPEG encoding
- Main stream: 4 MP/1080p/720p @ 1-25/30 fps
- Secondary stream: D1/VGA/CIF @ 1-25/30 fps
- H.264 bitrate 3,072-15,104 kbps / H.265 1,280-9,216 kbps
- Day/Night mode: Color / B/W
- Digital WDR (DWDR)
- 180° image rotation
Smart Functions
- Human detection
- Vehicle detection
- Automatic target tracking
- Audible alarm in case of anomaly
- Active deterrence with light and sound
Audio
- PCM, G.711A, G.711Mu compression
- Built-in microphone and speaker
- Two-way audio
Storage
- Micro SD card slot up to 256GB (card not included)
- FTP compatible
Network
- RJ-45 port (10/100 Base-T)
- 4G LTE FDD B1/B3/B5/B7/B8/B20/B28 and TDD B38/B40/B41 connectivity
- 4G transmit power Class 3 (23 dBm ± 2 dB)
- ONVIF protocols (profile S, G, T), SDK, CGI
- DSS Pro software, NVR Series 5, DMSS App
- Android / iOS mobile clients
Power supply
- 12 V DC (1 A ± 10%) power supply included
- Basic power consumption 3 W / max. 7.5 W (with PTZ + illuminator)
Environment
- Operating temperature -30 °C ~ +55 °C
- Relative humidity ≤ 95%.
Physical characteristics
- IP66 and TVS 2000 V lightning, surge and transient protection
- Dimensions: 153.5 × Φ129.3 mm
- Net weight: 0.66 kg
Contents
- Dahua WizColor PRO 4G PT type IP camera DAHUA-5012 (DH-IPC-PT2449DC1P-ST4G-PV-0400B-PRO-EUR)
- 12 V DC power supply
- Mounting plate, screws, installation template and waterproof connector
- Documentation and warranty
Certifications
- CE
