Description
Technical Specifications

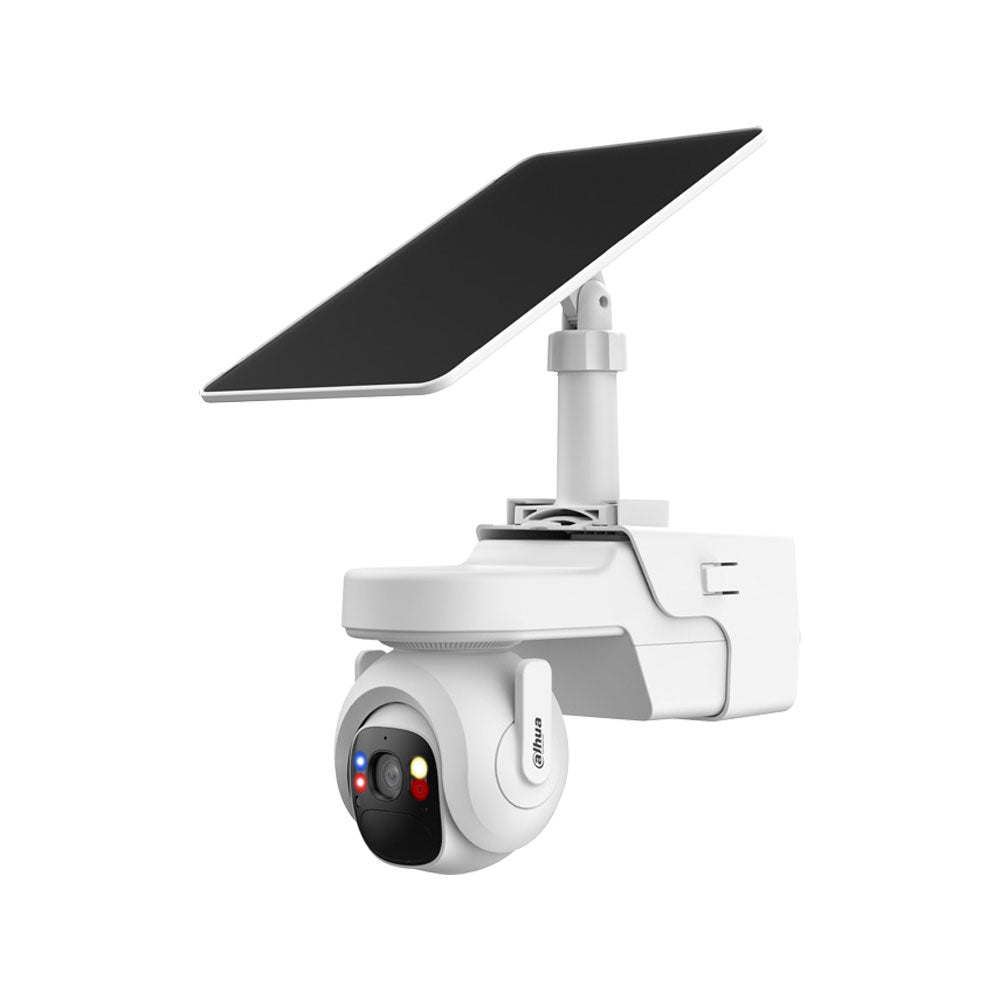

- Dahua Wireless Series 4G PT-Type IP Dome
- 1/3" CMOS sensor with a maximum resolution of 2560 × 1440 (4MP)
- IR illumination up to 30 m and warm light up to 20 m
- Illuminators: 1 IR, 1 white light, 1 pair of red and blue alarm lights
- Viewing angle: H 78.4°, V 42.4°, D 92.4°, D 92.4°, H 78.4°, V 42.4°, D 92.4°
- Fixed 3.6 mm lens (F1.6)
- Auto ICR (day/night)
- WDR available
- PIR sensor with a range of up to 12 m
- Mechanical movement: pan 0°~360°, tilt -60°~0°, rotate 0°~360°, tilt -60°~0°, rotate 0°~360°
Video
- H.265 video compression
- Main stream: 2560 × 1440@(1-15 fps)
- Sub stream: 640 × 360@(1-15 fps)
- Bit rate: 32 kbps-4096 kbps
- Day/night modes: Auto (ICR) / Color / B/W
- Motion detection: 4 configurable zones
Smart Features
- Accurate human and vehicle detection with immediate warning
- AOV (Always-On Video) mode with 24/7 recording and low power consumption
- Deterrent sound and light alarm
Audio
- Built-in microphone and speaker
- Two-way audio
- G.711a compression
Network
- RJ45 port (10/100 Base-T)
- 4G LTE connectivity
- Bands (Europe, Middle East, Africa): FDD-LTE B1/B3/B5/B7/B8/B20/B28
- Supported software: DMSS, DSS Pro
- Mobile applications: iOS and Android
Power
- Built-in 68 Wh lithium battery
- 8 W solar panel included
- Charging via USB Type-C
- Power consumption: ultra-low power mode 0.04 W / AOV mode 0.197 W / performance mode 1.2 W
Environment
- Operating temperature: -20 °C ~ +60 °C
- Humidity ≤ 95% (RH), non-condensing
- IP66 protection
Physical Characteristics
- Material: plastic
- Dimensions: 284 × 172 × 360 mm
- Net weight: 1.055 kg
- Outdoor installation
Contents
- 4G Solar Powered PT Type IP Surveillance System DAHUA-5011 (DH-KIT/IPC-PT2449B1-4GB20/M0508)
- 8 W solar panel
- Mounting brackets and installation hardware
- Quick guide and legal documentation
Certifications
- CE-LVD: EN62368-1
- CE-EMC: Directive 2014/30/EU
- CE-RED: Directive 2014/53/EU
