Description
Technical Specifications

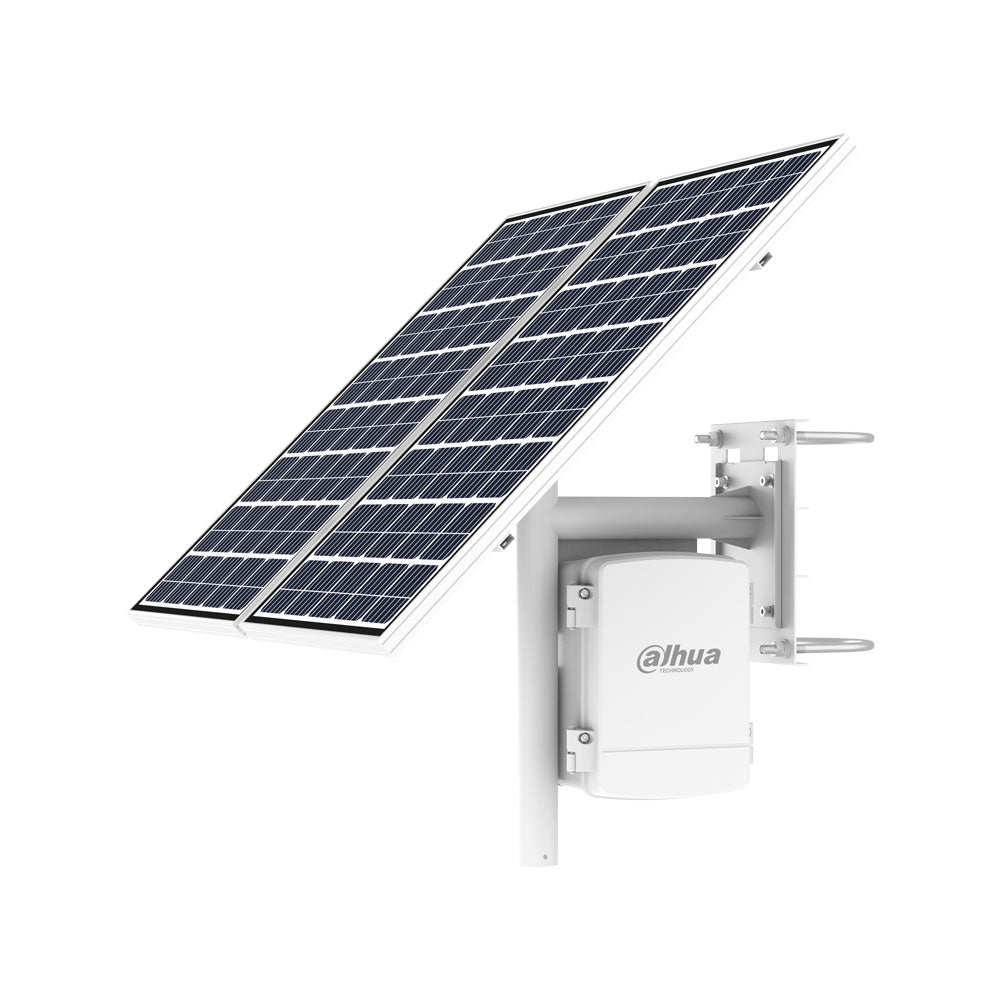

- Dahua 200W Integrated Solar System
- Output Voltage 12.8 VDC (10.8-14 VDC)
- Output Current 5 A
- Consumption ≤ 1 W
- MPPT Charge Controller
Solar Panel
- Monocrystalline Type
- Maximum Power of 200 Wp
- Efficiency of 19%
- Operating Voltage 21.85 V
- Operating Current 2.75 A
Battery
- Compatible with DAHUA-5010 batteries (DH-PFE320-LP1207), not included
- Up to 8 connected batteries
- LiFePO? (Lithium Iron Phosphate) Type
- Nominal Capacity of 7.8 Ah (99.84 Wh)
- Nominal Voltage of 12.8 VDC
- Standard Charge Current of 1.6 A (max. 8 A)
- Automatic Heating Function (activated at 0°C and deactivated at 5°C)
Indicators and Ports
- LED Indicators: 2 × SYS, 2 × PV, 8 × BAT
- Output Ports: 2 × Power (Φ5.5 mm × Φ2.1 mm × 10 mm)
- RS-485 Port × 1
- USB Ports × 2
Protection
- IP66 Protection Rating
- C2 Corrosion Level
Device Installation
- Vertical Pole Mounting (Φ120-160 mm)
- Adjustable Tilt: 15°/25°/35°/45°
Environmental Conditions
- Operating Altitude ≤ 3000 m
- Requires a minimum of 3.5 hours of daily sun exposure
- Charging Temperature: -20 °C ~ +50 °C
- Discharging Temperature: -20 °C ~ +55 °C
- Operating Humidity: 10%-90% RH
- Storage Temperature: -20 °C ~ +45 °C (≤ 3 months) / -20 °C ~ +20 °C (≤ 12 months)
- Storage Humidity: 75% RH
Physical Characteristics
- Material: Aluminum and Q235 Steel
- Color: White
- Dimensions: 1348 × 819 × 909.7 mm
- Net Weight: 30 kg
Certifications
- CE Certified
Contents
- DAHUA-5009 (DH-PFE220-12CM-M200) Integrated Solar System, without lithium battery
