Description
Technical characteristics
- Dahua 5-in-1 XVR
- BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 24 channels (8 native IP + 16 convertible)
- Resolution supported: up to 5MP@25 fps
- Video output: HDMI 4K and VGA 1080P
Video
- BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 24 channels (8 native IP + 16 convertible)
- Recording resolution:
- CVI: 5MP (25/20/10/12.5 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 5MP (2560×1944 / 2960×1665) @20 ips, 4MP (25/30 ips), 1080P (25/30 ips), 720P (25/30 ips)
- AHD: 5MP (20 ips), 4MP (25/30 ips), 1080P (25/30 ips), 720P (25/30 ips)
- Main encoding capacity:
- 5MP mode: 4 channels 5MP@1~6 ips
- 5M-N mode: 5M-N@1~12 ips, 4M-N/1080P@1~15 ips, 1080N/720P/960H/D1/CIF@1~25/30 ips
- Secondary stream: D1/CIF@1~15 ips
- Display: HDMI (3840×2160, 1920×1080, 1280×1024, 1280×720), VGA (1920×1080, 1280×1024, 1280×720)
- Multi-screen display: up to 16 quadrants in normal mode / up to 25 quadrants in IP mode
- Synchronized playback: 1/4/9/16 channels
- Video codecs: AI encoding, Smart H.265+, H.265, Smart H.264+, H.264
Smart Features
- 16 channels with SMD Plus from the recorder
- 24 channels with SMD from the camera
- 1 channel with irregular black mask from the recorder
- Dual Light smart lighting mode
Audio
- 1 RCA input + 16 audio channels via coaxial
- 1 RCA output
- Audio via coaxial
- Two-way audio (local, network and coaxial)
Storage
- 1 SATA port, up to 16 TB (not included)
Alarms
- General alarms: motion, HDCVI alarm, external camera alarm, network, PIR
- Anomaly alarms: no disk, disk error, insufficient space, IP/MAC conflict, video loss, tampering, camera offline
- Alarm linkage: recording, snapshot, external IPC alarm, audio, buzzer, log, preset, email
Communication Interface
- 2 rear USB 2.0 ports
- 1 HDMI port
- 1 VGA port
- Reset button
Network
- RJ-45 10/100/1000 Mbps port
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, alarm server, P2P, IP search, auto-registration, IP filter
- Interoperability: ONVIF 24.12 (Profile T, S, G), CGI, SDK
- Compatible with Chrome, IE, Safari, Edge, Firefox browsers
Power supply
- 12 VDC, 2 A
- Power consumption: <12 W (without hard drive)
Environment
- Operating temperature: -10 °C ~ +45 °C
- Storage temperature: -20 °C ~ +60 °C
- Humidity: 10%~90% non-condensing
Physical characteristics
- Tabletop installation
- Dimensions: 260 × 231.6 × 47.6 mm
- Net weight: 0.99 kg
- Gross weight: 1.57 kg
Contents

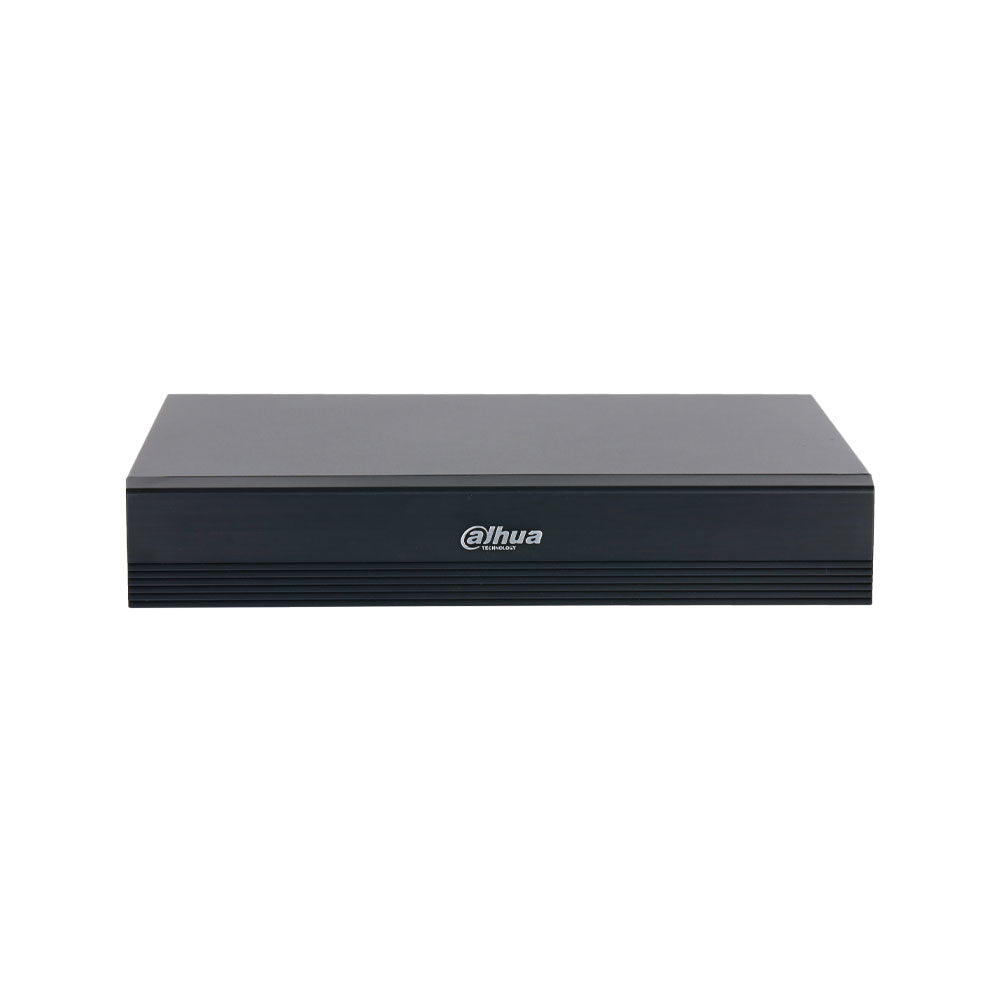

- Dahua 16-channel 5-in-1 XVR DAHUA-4994 (DH-XVR1B16H-I/T)
Certifications
- CE-LVD: IEC 62368-1:2014
- CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
