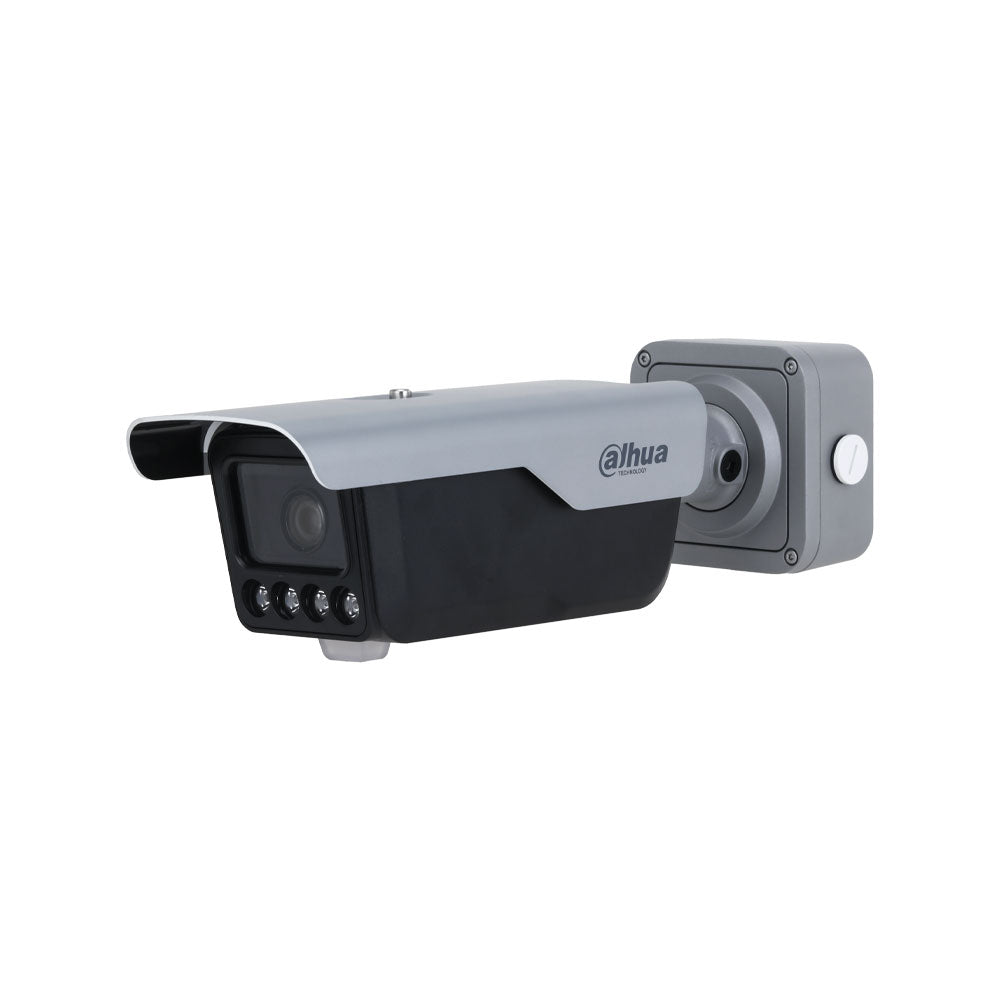

Dahua ANPR IP Access Camera

Technical Characteristics

• Dahua ANPR IP Access Camera
• 1/1.8 CMOS Sensor
• 4MP (2688×1520) image resolution
• Automatic/manual electronic shutter 1/25 s ~ 1/100,000 s
• Maximum detection speed 80 km/h
• Minimum illumination 0.001 lux color / 0.0002 lux B/W / 0 lux active illuminator
• Integrated illumination 4 LEDs with dual IR 730 nm and warm light
• ANPR illumination range up to 10 m
• 2.7~12 mm motorized varifocal lens
• Viewing angle 2.7~12 mm: H 92°~46.1°, V 49°~26°, D 109°~52.8
• Automatic, zone, or manual focus

Video Stream

• Compression H.265, H.264H, H.264B, H.264M, MJPEG
• CBR and VBR bitrate control
• Stream 1: 4MP@25/30 fps
• Stream 2: 720p@25/30 fps

Features

• WDR 140 dB
• 3D NR
• ROI with up to 3 zones
• Image tampering prevention with verifiable watermarks
• OSD with time, lane, license plate, and vehicle overlay
• Color, black and white, and automatic day/night modes with IR filter
• Image settings for brightness, contrast, saturation, gamma, sharpness, gain, and white balance

Smart Functions

• AI recognition of license plate, unregistered vehicles, vehicle type, brand, and color
• Recognition of 147 vehicle brand logos
• Recognition of 12 vehicle colors
• Recognition of 10 vehicle types
• Video metadata with license plate and vehicle trajectories
• Allowed list up to 110,000 license plates
• Blocked list up to 110,000 license plates
• IVS with intrusion and loitering detection up to 4 zones
• Vehicle capture rate ≥ 99% under recommended conditions
• Blue and red light alarm and customizable voice alarm
• Alarm linkage actions with upload to FTP or card, notification to monitoring center, email sending, alarm output, capture, and active deterrence

Audio

• Audio input available
• Integrated microphone with a pickup distance of 3 m
• Integrated 2 W speaker
• 1-channel audio output via RCA

Storage

• TF card slot for 16 GB, 32 GB, 128 GB, 128 GB, and 256 GB (card not included)
• Compatibility indicated for Kingston, Dahua, and SanDisk in 16 GB, 32 GB, 128 GB, and 256 GB capacities

Alarms

• 2 alarm inputs with optocoupler
• 2 relay alarm outputs for controlling devices such as barriers
• Alarms for focus defect, card exhausted, card low on space, card error, network disconnection, IP conflict, and illegal access

Communication Interface

• RS-485 x2
• Wiegand 1 channel SHA-1 26-bit
• Remote control included
• Reset button

Network

• RJ45 10/100 Mbps port
• Protocols HTTP, Https, 802.1x, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, NTP, SFTP, DDNS, SNMP, PPPoE
• ONVIF Profile S and Profile T, CGI, ITSAPI, P2P interoperability
• API available
• SDK available
• Management software DSS Pro, DSS Express, Cybercity, Smart PSS
• Security with username and password, MAC, HTTPS, IEEE 802.1x, and network access control

Power Supply

• 12V DC 2A
• PoE 802.3at Type 2 Class 4
• Power consumption without illumination < 6 W
• Power consumption with illumination < 12 W
• Power consumption with speaker and red/blue light warning < 17 W

Environmental Protection

• IP67 protection
• IK10 vandal protection
• Operating temperature -30 °C ~ +65 °C
• Operating humidity 10 %~90 % non-condensing
• Storage temperature -40 °C ~ +70 °C
• Storage humidity ≤ 95 % non-condensing

Physical Characteristics

• Aluminum alloy and plastic housing
• All-in-one structure with integrated junction box and bracket
• Ceiling, wall, or pole mounting
• Dimensions: 395.0 × 120.8 × 127.8 mm (395.0 × 120.8 × 127.8 mm)
• Net weight: 2.3 kg
• Gross weight: 3.2 kg

Content

• DAHUA-4990 (DHI-ITC413-PW4D-Z1) ANPR IP Access Camera with motorized varifocal lens

Certifications and Standards

• CE-EMC
• CE-LVD
• CE-RED
• FCC
