Description
Technical specifications

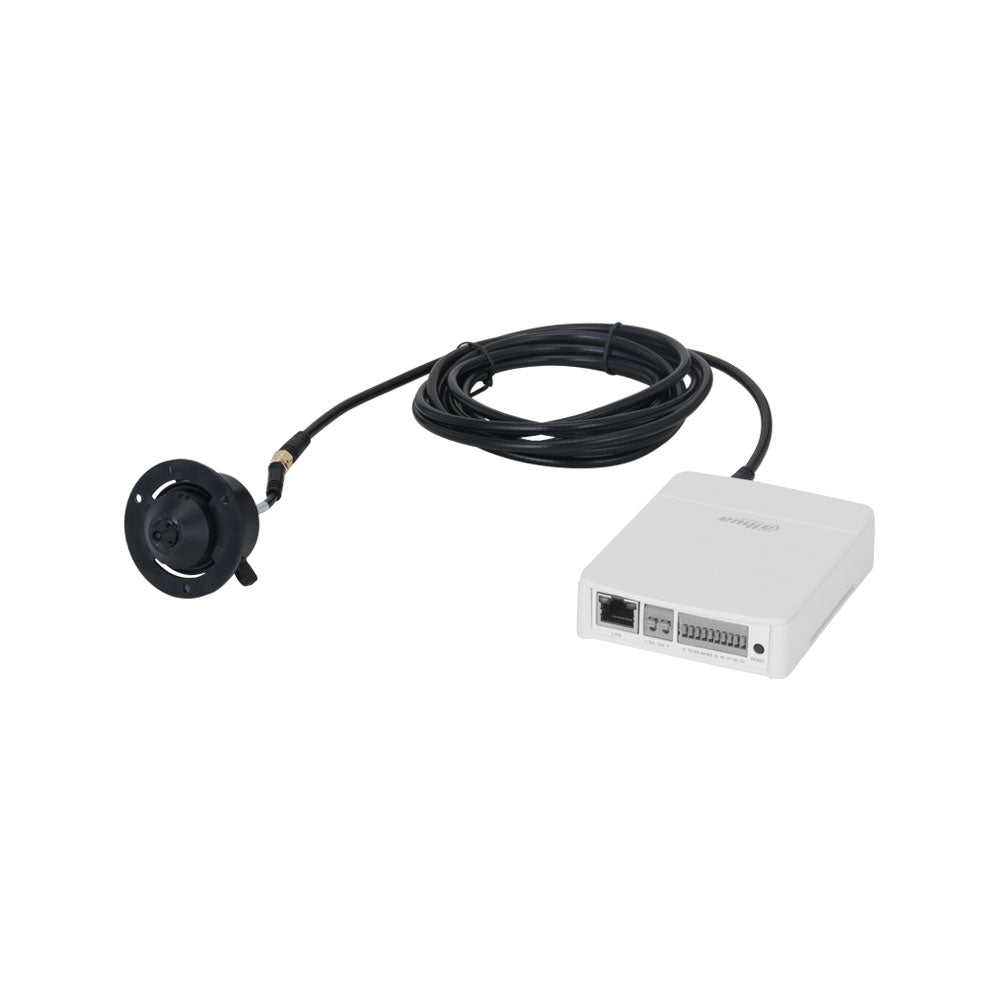

- Dahua KIT-L1 secret pinhole IP camera
- 1/2.7" 4MP CMOS sensor
- Maximum resolution of 2688×1520
- ICR, minimum illumination 0.005 lux color, 0.0005 lux B/W
- 2.8 mm F2.0 fixed lens
- Viewing angle: H 100°, V 57°, D 114° S/N ratio >56 dB
- S/N ratio >56 dB
Video
- Codecs: H.265, H.264, MJPEG (substream)
- AI H.265, AI H.264
- Stream 1: 4MP (2688×1520)@1-50/60 fps
- Stream 2: 1080P (1920×1080)@1-25/30 fps
- Stream 3: 1080P (1920×1080)@1-25/30 fps
- 3 simultaneous streams
- Additional resolutions: 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF
- WDR 120 dB, BLC, HLC, 3D NR, defog, LDC, ROI
- Rotation of 0°/90°/180°/270°
- Privacy masks (4 zones)
Smart Functions
- Perimeter protection (line crossing, intrusion, loitering, parking, gathering)
- Face detection with capture, attributes and expressions
- People counting (entry, exit, in area, queue management)
- AcuPick: quick target search
- Abandoned or missing object detection
- Privacy protection with mosaic
Audio
- 1 audio input and 1 audio output (3.5 mm jack)
- Codecs: G.711a/u, PCM, G.726, G.723
Storage
- MicroSD slot up to 512 GB (card not included)
- Support NAS, FTP and SFTP
Alarms
- 2 alarm inputs and 2 alarm outputs
Communication interface
- RJ-45 10/100 Base-T port
Network
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, Automatic registration
- ONVIF (S, G, T), CGI, P2P, Milestone, Genetec
- Software: Smart PSS, DSS, DMSS, DoLynk Care
- Mobile client: iOS, Android
Power supply
- 12 V DC / PoE (802.3af)
- Maximum power consumption: 6.7 W (12 V DC), 8.6 W (PoE)
- Support for dual power backup
Environment
- Operating temperature: -40 °C ~ +60 °C
- Humidity ≤95% non-condensing
Physical characteristics
- Metal material
- Dimensions:
- E1 Module: 110 × 83 × 24 mm
- L1 Lens: Ø30.5 × 45.8 mm
- Net weight: 0.511 kg
- Gross weight: 0.646 kg
Content
- 4MP Pinhole IP Camera DAHUA-4972 (DH-KIT/IPC-HUM8441EP-E1-L1-0280B-S3)
Certifications
- CE-LVD: EN62368-1
- CE-EMC: Directive 2014/30/EU
