Description
Technical features

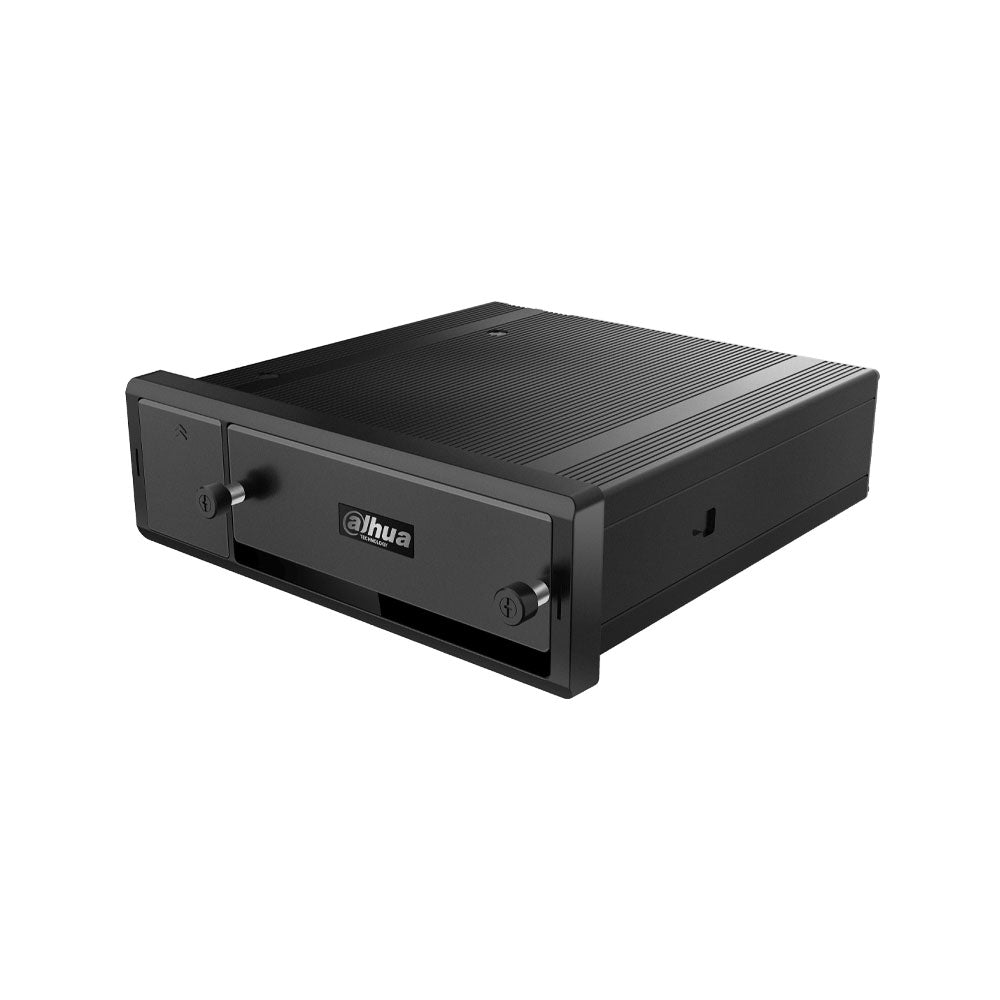

- Dahua AI Mobile H.265 4-channel mobile XVR
- Penta-brid input compatible with HDCVI, AHD, TVI, CVBS and IP
- 4 inputs for HDCVI/AHD/TVI/CVBS analog cameras
- 4 inputs for IP cameras expandable via PoE switch
- Real-time 1080P high definition recording
- Built-in gyroscope for event detection
- Anti-vibration design for in-vehicle use
Video
- Video compression H.265, Smart H.265, H.264 and Smart H.264
- Dual stream with sub-stream up to D1
- PAL video rate from 1 to 25 fps
- NTSC video rate from 1 to 30 fps
- 1 channel CVBS video output
- 1 channel VGA video output
- Output resolution 800×600 and 1280×1024
- Screen splitting 1/4/8/9
Features
- Real-time vehicle location tracking and monitoring
- Recording priorities manual, alarm, motion detection and scheduling
- Playback on 1 or 4 channels
- Backup to HDD/SSD, USB stick and network
- Remote monitoring via Web Viewer, Mobile Center and DMSS
- Heat dissipation thanks to an integrated fan
Smart Features
- DSM with alarms for drowsiness driving, distracted driving, calling, driver absence, IR blocking glasses, smoking, lens tampering and seatbelt unbuckling.
- ADAS with lane departure warning, forward collision warning and safe distance warning
- BSD with detection and warning of people, motorized vehicles and non-motorized vehicles
- Facial recognition with face attribute detection and face comparison
Audio
- Two-way audio
- Audio compression G.711A, G.711U and PCM
- 1-channel audio capture superimposed on the first channel
Storage
- 1 x 2.5" HDD/SSD up to 2 TB (not included)
- 1 SD card up to 256 GB (card not included)
Alarms
- 9 alarm inputs, including 8 local inputs and 1 pulse input
- 2 alarm outputs, with 1 relay output and 1 controllable 12VDC 0.5A output
- General alarms for motion detection, video loss, video tampering, local alarm and offline camera
- Abnormal alarms: no HDD, HDD error, insufficient capacity, illegal connection, low battery voltage, high temperature, rollover, collision, overspeed, underspeed, sharp turn, rapid acceleration, sudden braking, network security exception and ACC deactivation.
- Alarm linkage with logging, recording, capture, patrol, audible alarm, email and alarm output
- Gyroscope with detection of rollover, collision, acceleration, deceleration and rapid turning.
Communication interface
- 3 RS-232 ports
- 1 RS-485 port
- 2 USB 2.0 ports on the front panel
- 1 USB 2.0 port on the rear panel from the EXTEND port
- GPS/GLONASS satellite positioning
Network
- Video, audio, alarm and GPS streaming via 3G/4G wireless network
- Eurasia version LTE-FDD bands B1/3/5/5/7/8/20
- Eurasia version LTE-TDD bands B38/40/41
- Eurasia version WCDMA bands B1/5/8
- Eurasia version GSM/EDGE bands B3/8
- Latin America version LTE-FDD bands B1/2/3/3/4/5/7/8/28
- Latin America version LTE-TDD bands B40
- Latin America version WCDMA bands B1/2/4/5/8
- Latin America version GSM/EDGE bands B2/3/5/8
- 1 RJ45 10M/100M port on the front panel
- 1 10M/100M network port with 6-pin aviation connector on the rear panel
Power supply
- 6 to 36 VDC power supply
- Power consumption of 8.4 W without peripherals
- Low power consumption (less than 0.1 W)
- Wide power range to protect against vehicle battery variations
Environment
- Operating temperature -30°C to +70°C (-30°F to +70°C)
- Operating humidity from 10% to 90%
- Operating altitude up to 5000 m
Physical characteristics
- Flush or surface mounting
- Dimensions: 180 mm × 190 mm × 50 mm
- Packaging dimensions: 308 mm × 293 mm × 123 mm
- Gross weight: 2.83 kg
Contents
- Dahua AI Mobile H.265 Mobile XVR DAHUA-4929 (DHI-DAE-MXVR4104-GFI)
Certifications and regulations
- CE, FCC, E-mark and EN50155 certifications
- EN50155 and ISO16750 compliance for mobile use
- Anti-vibration design compliant with ISO7637-2
