Description
Technical specifications

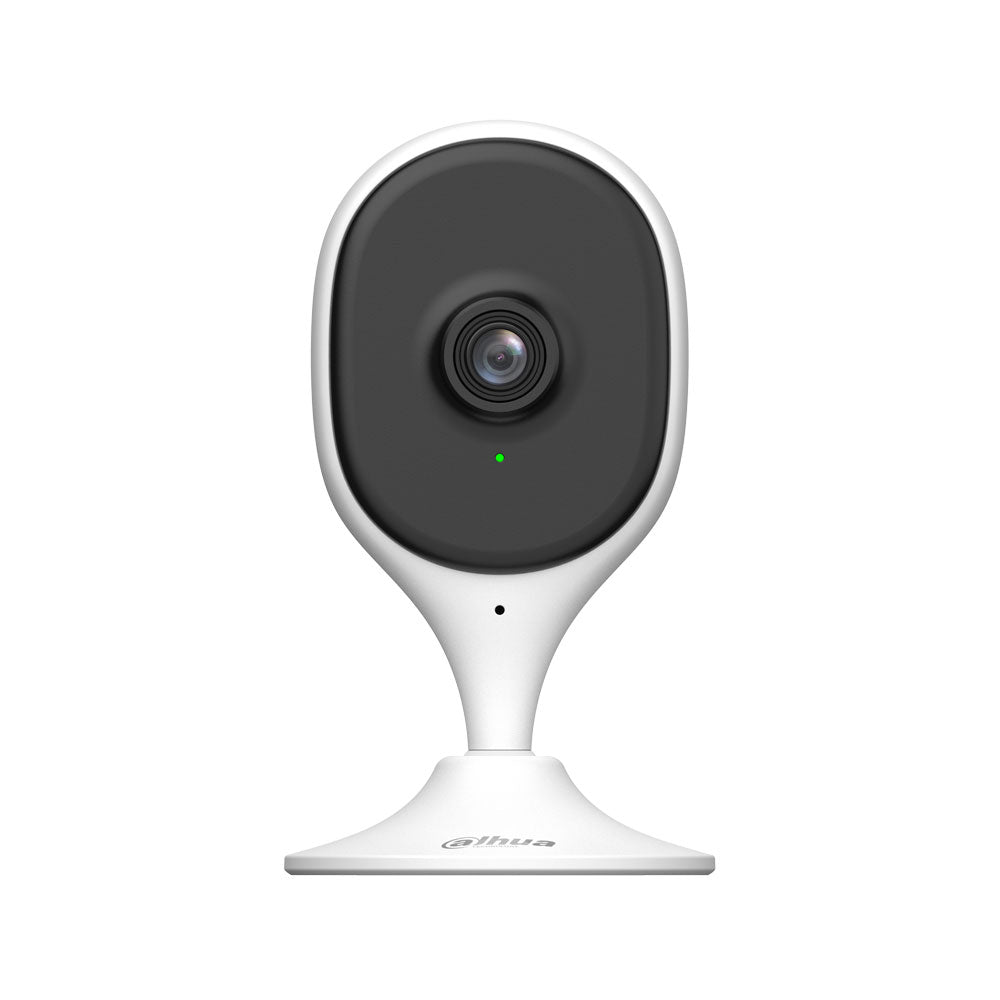

- Dahua wireless indoor Wi-Fi IP cube camera
- 1/2.7 CMOS sensor
- Max. 5MP resolution (2880 × 1620)
- Automatic/manual electronic shutter from 1/3 s to 1/100000 s
- IR illumination up to 10 m via 1 IR LED
- Automatic lighting on/off control
- 2.8 mm fixed lens with F2.0 aperture and FOV H: 90°; V: 49°; D: 106° Auto Day/Night Filter (1)
- Automatic day/night filter (ICR), color and B/W
Video stream
- H.265 video compression
- Stream 1: 5MP (2880 × 1620)@1-25/30 fps
- Stream 2: nHD (640 × 360)@1-25/30 fps
- H.265 bitrate from 80 kbps to 4096 kbps
Features
- Digital WDR
- Motion detection
- Image rotation 0° or 180
- One-click privacy mode
- Day/night vision
Smart functions
- People detection
- Pet detection
Audio
- Integrated microphone
- Integrated speaker
- Two-way audio
- G.711a audio compression
Storage
- MicroSD card slot up to 256 GB (card not included)
Alarms
- Abnormal sound alarm
- Send information to the connected phone
Communication interface
- Pairing via Bluetooth
Network
- Wi-Fi IEEE 802.11b/g/n/ax
- Wi-Fi band from 2.412 to 2.472 GHz
- 2.4G Wi-Fi with power ≤20 dBm between 2400 and 2483.5 MHz
- DMSS management software
- Mobile client for iOS and Android
Power supply
- 5 VDC, 1 A power supply
- Basic consumption of 1.65 W
- Maximum consumption of 2.75 W
Environment
- Operating temperature -10°C to +45°C (-10°C to +45°C)
- Operating humidity ≤95%.
Physical characteristics
- 2AXIS angular adjustment with pan from 0° to 360° and tilt from -10° to 80°.
- Magnetic base for flexible installation
- Plastic casing
- Dimensions: Φ68 mm × 31.9 mm × 119.2 mm
- Net weight: 95 g
Contents
- DAHUA-4928 Wi-Fi IP cube camera (DH-IPC-C5AP-0280B-EUR)
- Installation accessories
- Documentation
- Power supply accessories
Certifications and standards
- CE
