Description
Technical characteristics

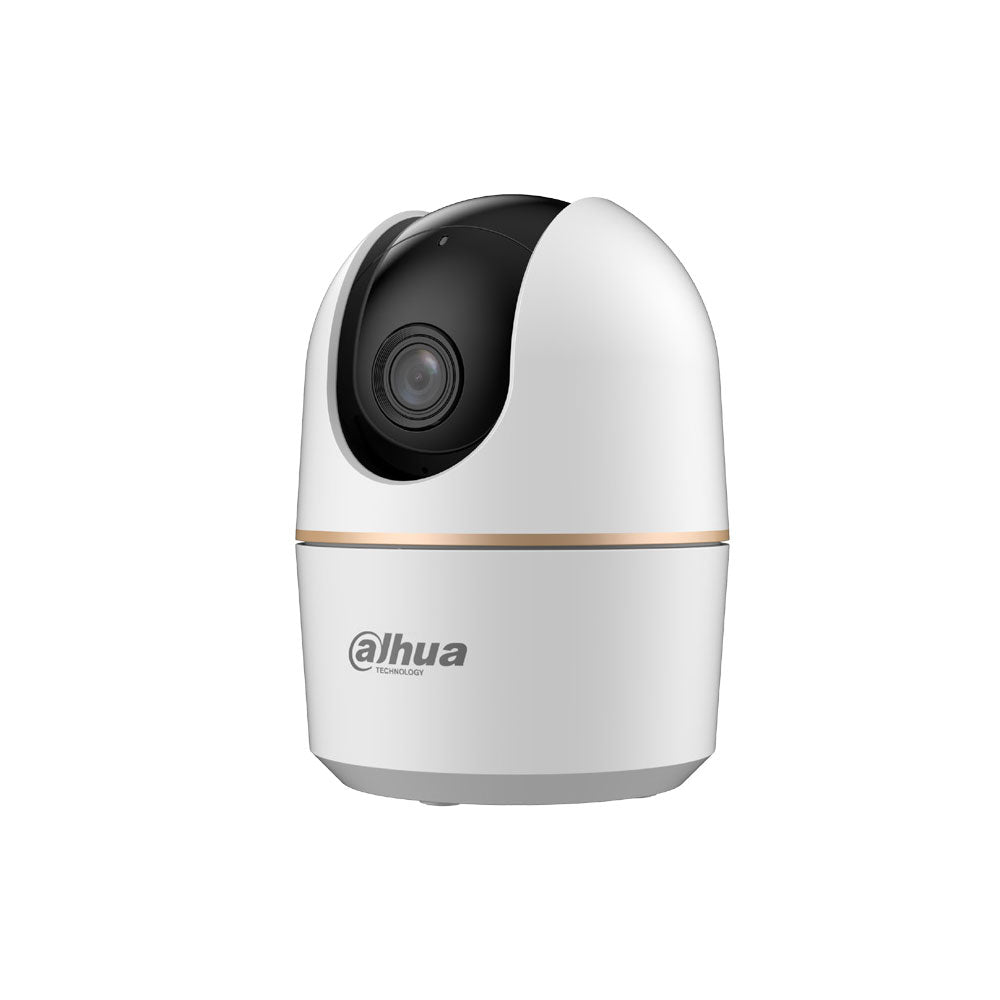

- Dahua Pan & Tilt WiFi Wireless IP Camera
- 1/3 CMOS sensor
- Maximum resolution of 5MP (2880 × 1620)
- IR illumination distance up to 10 m
- 3.6 mm fixed optics
- Viewing angle: H: 74°, V: 41°, D: 88°, H: 74°, V: 41°, D: 88°, D: 88
- Maximum aperture F2.0
- Pan: 0°~355°, tilt: -5°~80°, tilt: -5°~80°, Pan: 0°~355°, tilt: -5°~80°.
Video
- H.265 compression
- Main stream: 5MP (2880×1620) @25/30fps
- Sub stream: 640×360 @25/30fps
- Bit rate from 80 kbps to 4096 kbps
- Day/Night function: Auto (ICR) / Color / B/W
- DWDR
- Image rotation: 0°/180° Image rotation: 0°/180° Image rotation: 0°/180° Image rotation: 0°/180
Smart functions
- People detection
- Pet detection
- Automatic tracking
- Abnormal sound detection
- One-click privacy mode
- Preset patrol
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- G.711a compression
Storage
- MicroSD card slot up to 256 GB (card not included)
Communication interface
- USB Type-C port
- Status indicator
Network
- RJ45 interface (10/100 Base-T)
- Wi-Fi IEEE 802.11b/g/n/ax (2.4 GHz, Wi-Fi 6)
- Bluetooth quick pairing
- Compatible with DMSS software
- iOS and Android mobile app
Power supply
- 5 VDC
- Basic consumption: 1.9 W
- Maximum consumption: 4 W (IR + Pan/Tilt)
Environment
- Operating temperature -10°C to +45°C (-10°F to +45°F)
- Relative humidity ≤95% (non-condensing)
Physical characteristics
- Plastic material
- Dimensions: Ø77.8 × 108.1 mm
- Net weight: 0.195 kg
Content
- 5MP Pan&Tilt Wi-Fi IP Camera DAHUA-4920 (DH-IPC-HPT1530DAP-STW-0360B-EUR)
- Mounting bracket
- Screws
- Power cable
- Power adapter
- Quick guide
- Legal documentation
Certifications
- CE
