Description
Technical specifications
- Dahua 5-in-1 XVR
- BNC inputs: 8 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 10 channels (2 native IP + 8 convertible)
- Resolution supported: up to 1080p@25/30 fps
- Video output: HDMI and VGA up to 1080p
Video
- BNC inputs: 8 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
- IP inputs: up to 10 channels (2 native IP + 8 convertible)
- Recording resolution:
- CVI: 1080P (25/30 fps), 720P (25/30 fps)
- TVI: 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 1080P (25/30 fps), 720P (25/30 fps)
- Main encoding capability: Channel 1 at 1080N/720p@25/30fps; rest at 1080N/720p@15fps
- Substream: CIF@1~7fps
- Display: HDMI and VGA (1920×1080, 1280×1024, 1280×720)
- Multi-screen display: up to 9 quadrants in normal mode / up to 16 quadrants in IP mode
- Synchronous playback: 1/4/9 channels
- Video codecs: AI encoding, Smart H.265+, H.265, Smart H.264+, H.264
Smart functions
- 8 channels with SMD Plus per recorder (person and vehicle filtering)
- 10 channels with SMD per camera
- Dual Light intelligent illumination mode
- One channel with irregular black mask
Audio
- 1 RCA input + 8 audio channels via coaxial
- 1 RCA output
- Audio via coaxial
Storage
- 1 SATA port, up to 16 TB (hard drive not included)
Alarms
- General alarms: motion, HDCVI alarm, external camera alarm, network, PIR
- Anomaly alarms: disk error, network disconnection, IP/MAC conflict, video loss, tampering
- Alarm linkage: recording, snapshot, external IPC alarm, audio, buzzer, log, preset, email
Communication interface
- 2 USB 2.0 ports on the rear
- 1 HDMI port
- 1 VGA port
- Reset button
Network
- RJ-45 10/100 Mbps port
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, alarm server, P2P, IP search
- Interoperability: ONVIF 24.12 (Profile T, S, G), CGI, SDK
- Compatible with Chrome, IE, Safari, Edge, Firefox browsers
Power supply
- 12 VDC, 1.5 A
- Power consumption: <7 W (without hard drive)
Environment
- Operating temperature: -10 °C ~ +55 °C
- Storage temperature: -20 °C ~ +60 °C
- Humidity: 10%~90% non-condensing
Physical characteristics
- Tabletop installation
- Dimensions: 204.6 × 211.3 × 45.8 mm
- Net weight: 0.52 kg
- Gross weight: 1.06 kg
Content

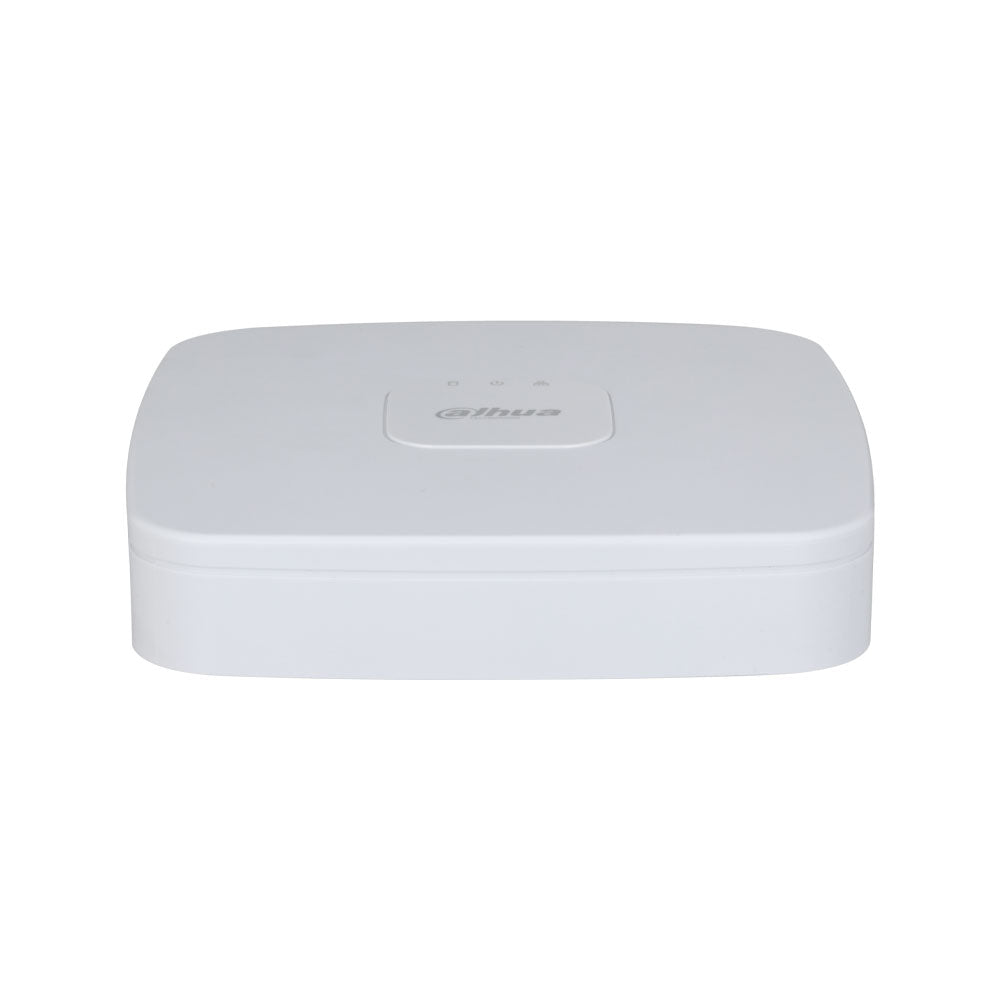

- Dahua 8-channel 5-in-1 XVR DAHUA-4914 (DH-XVR4108C-I/T)
Certifications
- CE-LVD: IEC 62368-1:2014
- CE-EMC: EN 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
