Description
Technical characteristics
- Dahua 4-in-1 Camera Lite Series
- 5 MP CMOS sensor
- Maximum resolution of 5MP (2880×1620)
- Progressive scan system
- Automatic ICR
- Minimum illumination of 0.05 lux@F1.6 in color (30 IRE)
- Minimum illumination of 0.005 lux@F1.6 in black and white (30 IRE)
- 0 lux with illuminators activated
- Smart Dual Light illumination with 80 m range
- IR illumination and warm light with 4 multi-conductor LEDs
- 6 mm fixed lens (F1.6)
- Viewing angle: H 53.9°, V 30.7°, D 62.1°, D 62.1°, H 53.9°, V 30.7°, D 62.1°.
Video
- CVI/TVI/AHD/CVBS technologies selectable by DIP switch
- Resolutions: 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H (960×576 / 960×480), TVI 5MP 16:9 (2960×1665)
- Frames per second: CVI PAL: 5MP@25fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps; TVI: 5MP 16:9@20fps; AHD: 4MP@25fps; CVBS: 960H (PAL)
- Day/Night modes Auto/ICR/Color/B&W
- BLC, HLC and DWDR
- Automatic or area white balance
- Automatic gain control
- 3DNR noise reduction
- Motion detection
- Lighting modes: Smart IR&WL, WL and IR
- Privacy masking in a maximum of 8 rectangular areas
Features
- Smart Dual Light
- Smart Light+
- Smart Area Illumination
- Super Adapt
- Advanced 3DNR
Audio
- Integrated microphone
- CVI and TVI audio
Communication interface
- Video output via BNC port with CVI/TVI/AHD/CVBS selection
Power supply
- 12 VDC (±30%)
- Maximum power consumption 6.5 W (with warm light on)
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity less than 95% (non-condensing)
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity less than 95% (non-condensing)
- IP67 protection
- Basic corrosion protection level
Physical characteristics
- Housing with metal front, plastic back and metal support
- Wall, ceiling or vertical pole installation
- Dimensions: 240.7 × 90.7 × 90.4 mm
- Net weight: 0.45 kg
- Gross weight: 0.62 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°.
Content

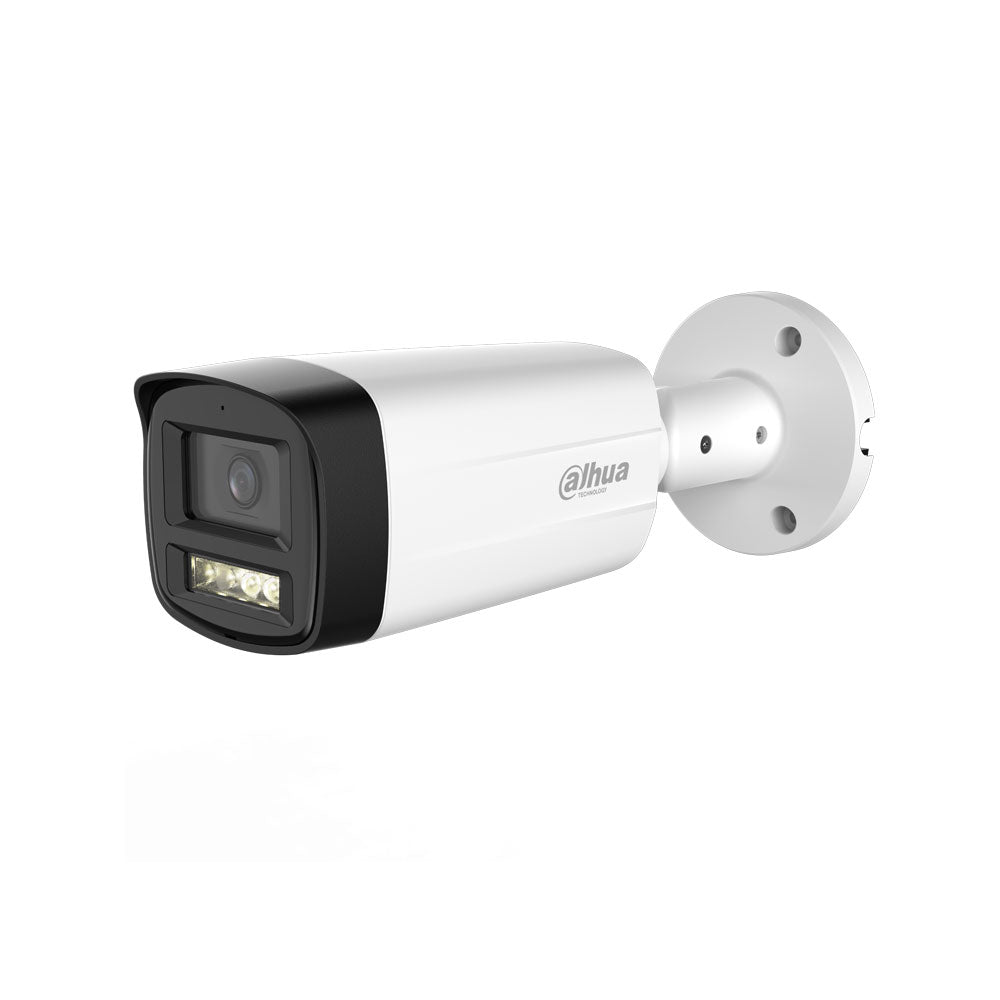

- HDCVI Smart Dual Light camera DAHUA-4892 (DH-HAC-HFW1500THP-IL-A-0600B-S3-DIP)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032 and EN 55035
