Description
Technical characteristics

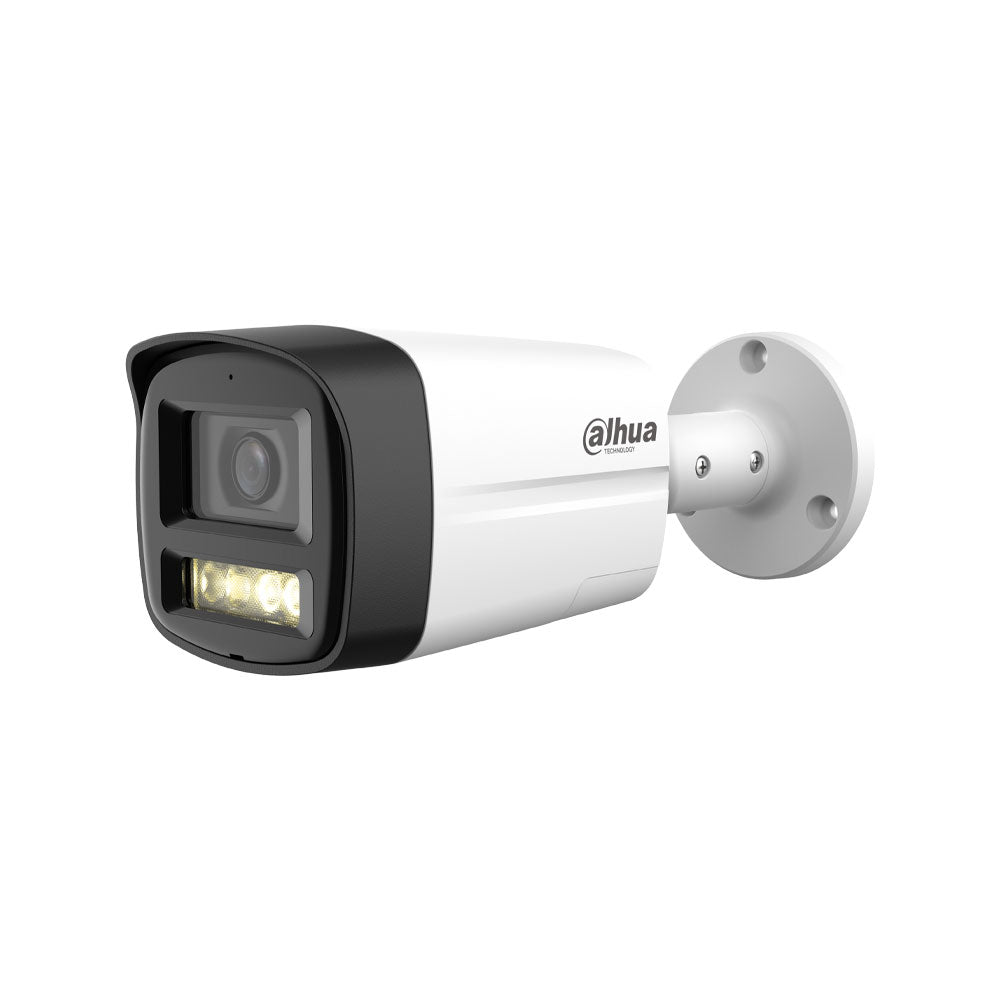

- Dahua Lite series 4-in-1 bullet camera with mixed metal/plastic casing
- 2MP CMOS sensor
- Maximum resolution: 1920 × 1080
- Automatic ICR
- Minimum illumination: 0.01 lux (color), 0.001 lux (black and white), 0 lux with IR/white light illumination
- Illumination distance: IR 40 m, white light 40 m
- Fixed 2.8 mm optics
- Viewing angle: H: 111.3°, V: 60.8°, D: 134.2°
Video
- Supported formats: CVI/TVI/AHD/CVBS switchable by DIP
- Resolutions: 1080P (1920×1080), 960H (960×576/480)
- Frames per second:
- CVI: 1080P@25fps
- TVI: 1080P@25fps
- AHD: 1080P@25fps
- CVBS: 960H
- Day/night modes: Auto (ICR) / Color / B/W
- Image functions: BLC, HLC, DWDR, 3DNR, Smart Light+, Mirror.
- Motion detection
- Privacy masking (up to 8 zones)
- Lighting modes: Smart IR & WL, WL only, IR only
Audio
- Built-in microphone (up to 8 m)
- Built-in speaker (up to 8 m)
- Two-way audio transmission (Two-way Talk)
- Coaxial audio transmission (CVI, TVI)
Power supply
- 12V DC (±30%)
- Maximum power consumption: 9.37 W (with IR activated)
Environment
- Operating temperature: -40 °C ~ +60 °C
- Humidity: <95% RH
- IP67 protection
Physical characteristics
- Material: metal front + plastic back + metal bracket
- Dimensions: 198.4 × 80.2 × 76.2 mm
- Net weight: 0.34 kg
- Gross weight: 0.49 kg
- Wall, ceiling or pole mounting
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Contents
- 2MP Smart Dual Light 4-in-1 Bullet Camera with 2-way audio DAHUA-4890 (DH-HAC-HFW1200TLMP-IL-T-0280B-DIP)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032, EN 55035
