Technical Specifications

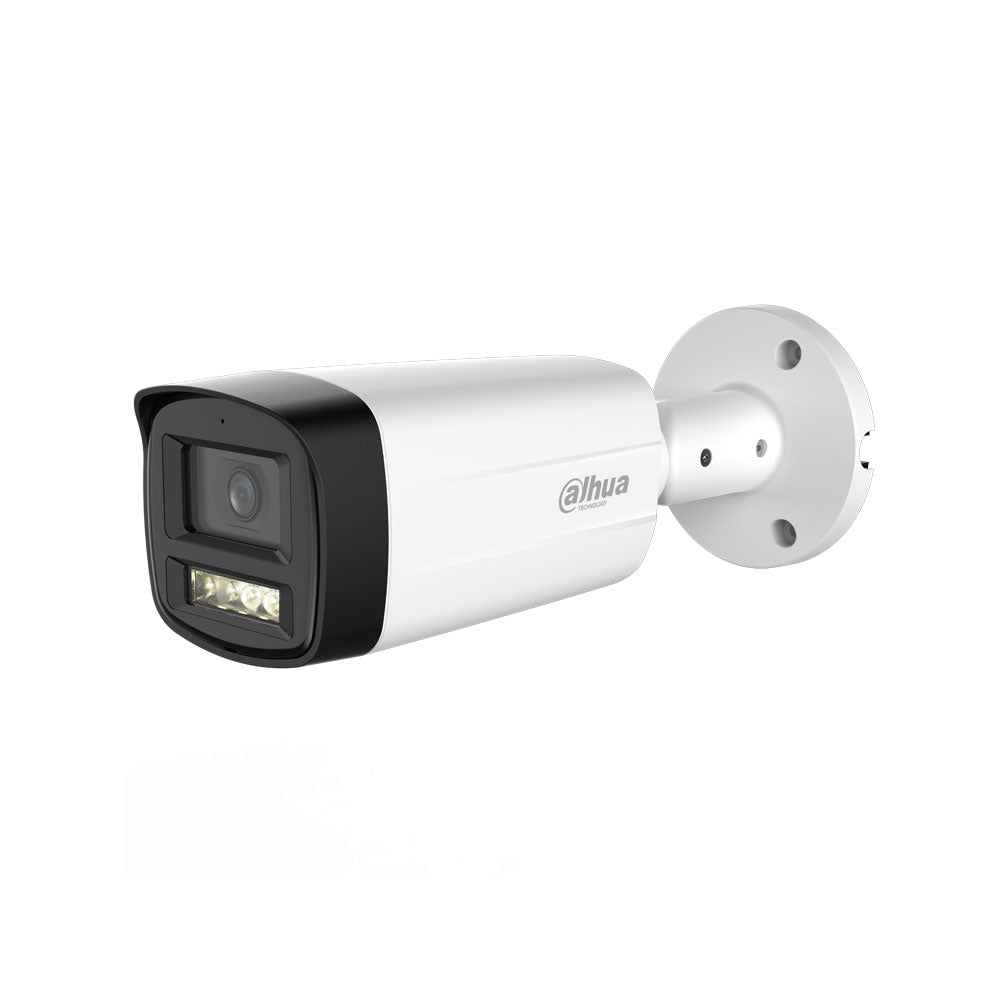

- Dahua Lite Series 4-in-1 Bullet Camera
- 5MP CMOS sensor
- Max. Resolution: 2880 × 1620
- Auto ICR
- Min. Illumination: 0.05 lux (color), 0.005 lux (B/W), 0 lux with IR/white light
- Illumination distance: IR 80m, white light 80m
- 2.8mm fixed lens
- Viewing angle: H: 113.3°, V: 62.1°, D: 134.3°
Video
- Supported formats: CVI/TVI/AHD/CVBS switchable via DIP switch
- Resolutions: 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H (960×576/480), TVI 5MP 16:9 (2960×1665)
- Frames per second:
- CVI: 5MP@25fps, 4MP@25fps, 1080P@25fps
- TVI: 5MP 16:9@20fps
- AHD: 4MP@25fps
- CVBS: 960H
- Day/night modes: Auto (ICR) / Color / B/W
- Image functions: BLC, HLC, DWDR, 3DNR, Smart Area Lighting, mirror.
- Motion detection
- Privacy masking (up to 8 zones)
- Lighting modes: Smart IR & WL, WL only, IR only
Audio
- Built-in microphone
- Coaxial audio transmission (CVI, TVI)
Power
- 12V DC (±30%)
- Max. power consumption: 6.5 W (with white light on)
Environment
- Operating temperature: -40 °C ~ +60 °C
- Humidity: <95% RH
- IP67 protection
Physical characteristics
- Material: metal front + plastic back + metal bracket
- Dimensions: 240.7 × 90.7 × 90.4 mm
- Net weight: 0.45 kg
- Gross weight: 0.62 kg
- Wall, ceiling or pole mounting
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°
Content
- 5MP Smart Dual Light Long-Range 4-in-1 Bullet Camera DAHUA-4888 (DH-HAC-HFW1500THP-IL-A-0280B-S3-DIP)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032, EN 55035
