Description
Technical Specifications

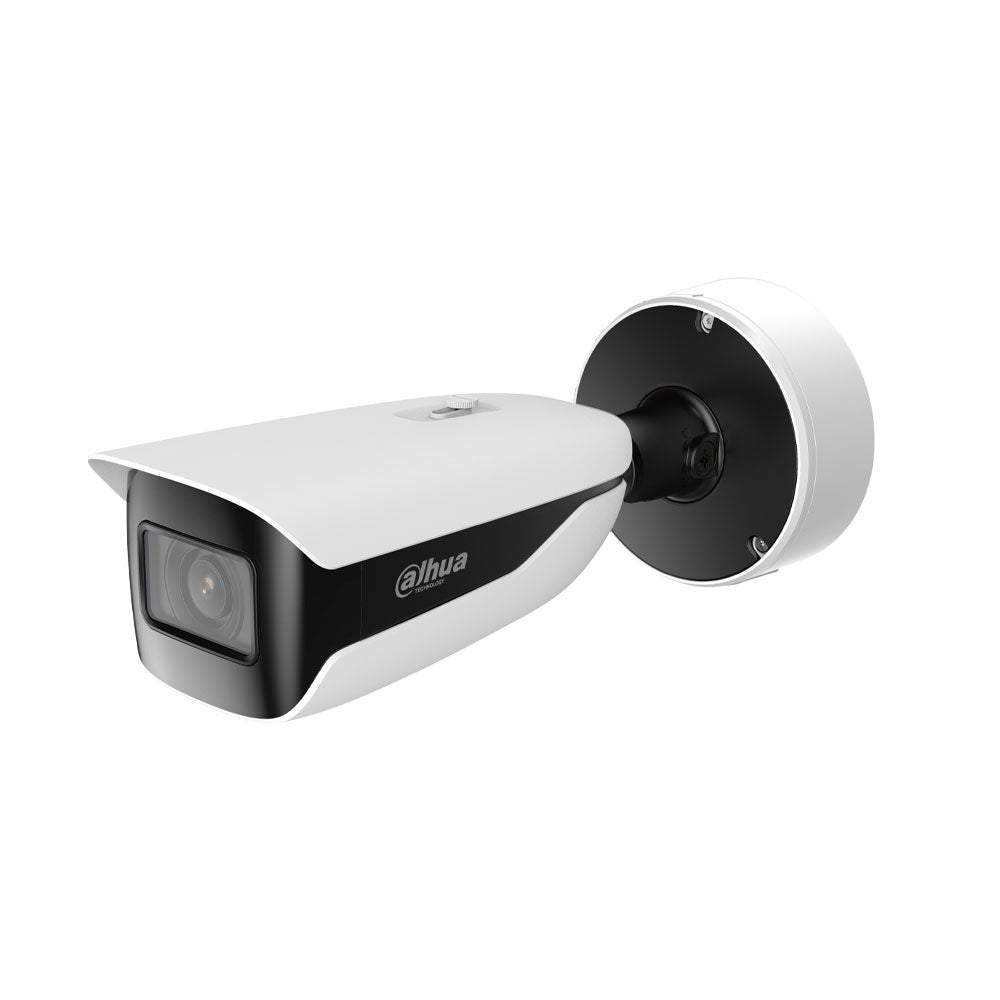

- Dahua WizMind X Bullet IP Camera
- 1/1.8 CMOS Sensor
- Maximum resolution 8MP (3840×2160)
- Minimum illumination 0.0007 lux color / 0.0004 lux B/W / 0 lux with IR
- IR illumination up to 120 m
- 4 IR LEDs
- Motorized 8~32 mm optics
- Aperture F1.6
- Auto P-Iris
- Viewing angle: H 42°~15°, V 23°~9°, D 48°~17
Video Stream
- H.265, H.264, H.264H, H.264B, MJPEG Compression
- Smart H.265+ and Smart H.264+
- Up to 5 simultaneous streams
- Stream 1: 3840×2160@50/60 fps
- Stream 2: 1920×1080@25/30 fps
- Stream 3: 1920×1080@25/30 fps
- Stream 4: 1920×1080@25/30 fps
- Stream 5: 704×576@25 fps / 704×480@30 fps
Features
- WDR 140 dB
- 3D NR
- BLC and HLC
- SSA (Scene Self-Adaptation)
- EIS (Electronic Image Stabilization)
- ROI 4 zones
- Smart Illumination
- Defog
- Rotation 0°/90°/180°/270
- Privacy masks 8 zones
Smart Functions
- Perimeter protection with person, vehicle and animal classification by camera
- Face recognition with a database of up to 200,000 faces
- Face detection with attribute extraction
- People counting and queue management
- Heat map
- ANPR up to 60 km/h with white/black lists
- PPE detection
- Video metadata for vehicles, non-motorized vehicles and human body
- AcuPick
Audio
- 1 audio input (RCA)
- 1 audio output (RCA)
- G.711a, G.711Mu, PCM, G.726, G.723 Compression
Storage
- MicroSD slot up to 1 TB (card not included)
- FTP, SFTP and NAS
Alarms
- 3 alarm inputs
- 2 alarm outputs
Communication Interface
- RS-485
- BNC analog output (CVBS)
Network
- RJ45 10/100/1000 Base-T
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Register
- ONVIF Profile S, G, T and M; CGI
- SmartPSS Lite, DSS and DMSS
- iOS and Android Client
- HTTPS, 802.1x, IP/MAC filter, X.509 certificates, secure boot and update
Power Supply
- 12 V DC / 24 V AC / PoE+ (802.3at) / ePoE
- Auxiliary output 12 V DC (165 mA max.)
- Base consumption 7.3 W (12 V DC)
- Maximum consumption 24.3 W (PoE)
Environment
- Operating temperature -40 °C ~ +65 °C
- Humidity ≤95 %.
- IP67 protection
- IK10 vandal resistance
Physical Characteristics
- Metal + plastic casing
- Wall, ceiling or pole mounting
- 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotation 0°~360°
- Dimensions: 345.6 × 134.2 × 135.1 mm
- Net weight: 1.65 kg
- Gross weight: 2.73 kg
Contents
- DAHUA-4768 8MP Bullet IP Camera (DH-IPC-HFW7842HP-Z-0832-DC12AC24V-X)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
- FCC Part 15 Subpart B
- UL62368-1
