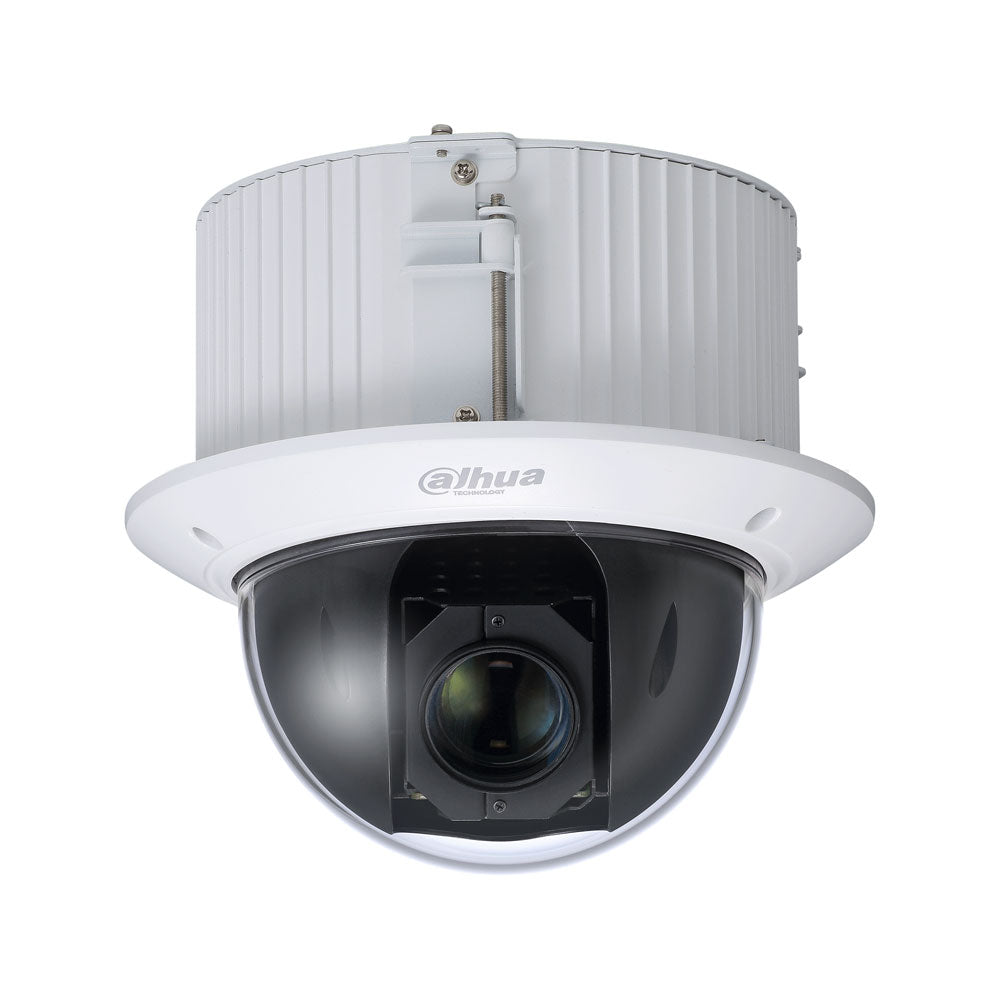

Description
- 1/2.8" CMOS sensor with a maximum resolution of 1920 × 1080
- Motorized 4.8-120 mm (F1.6-F3.5) optics
- Viewing angle:
- Horizontal: 58.5°-2.8° Vertical: 33.2°-1.8° Vertical: 33.2°-2.8
- Vertical: 33.2°-1.5° Diagonal: 67.5°-3.5° Diagonal: 67.5°-3.5
- Diagonal: 67.5°-3.2° Diagonal: 67.5°-3.2° Diagonal: 67.5°-3.2
- 25x optical zoom and 16x digital zoom
- Day/night mode with ICR filter
- Minimum illumination: 0.005 lux (color) / 0.0005 lux (B/W)
- H.265, H.264, MJPEG (sub-stream) video compression
- Smart Codec: Smart H.265+, Smart H.264+
- Supported resolutions: 1080P (1920×1080), 1.3MP (1280×960), 720P (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240)
- Stream 1: 1080P/1.3MP/720P (1~25/30 fps)
- Stream 2: D1/VGA/CIF (1~25/30 fps)
- Stream 3: 1080P/1.3MP/720P (1~25/30 fps)
- Image functions: True WDR, BLC, HLC, 3D NR, 2D NR, ROI, defog, electronic stabilization, image rotation
- Privacy: up to 24 configurable masks
- Smart video functions:
- Perimeter protection: line crossing, intrusion, loitering, abandoned/missing objects, fast movement, parking, gathering.
- Human/vehicle target classification
- Face detection: capture, enhancement, cropping with customization
- Event-based auto-tracking
- SMD 3.0 with false alarm reduction
- Alarm events:
- Motion detection, tampering, audio detection, network disconnection, IP conflict, status and SD card location
- Two-way audio: input and output (bare wires)
- Alarms: 2 inputs / 1 output
- MicroSD card slot up to 512 GB (card not included)
- Network interface: RJ-45 10/100 Base-T
- Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, SMB, HTTP, SSL, DHCP, SMTP, QoS, RTSP, ARP
- ONVIF (Profile S/G/T), CGI, SDK support
- Software: DMSS, DSS Pro
- Mobile clients: Android / iOS
- Power supply: 24 V DC ±25 % or PoE+ 802.3at
- Maximum power consumption: 16 W (24 V DC) / 15 W (PoE+)
- Operating temperature: -30°C to +60°C (-30°F to +60°F)
- Humidity: ≤95%
- IP67 protection and IK10 vandal-proof housing
- Protections: 6kV lightning protection, overvoltage, transients.
- Dimensions: 176.6 × Ø198 mm
- Net weight: 2.2 kg
- Gross weight: 3.7 kg
- Certifications: CE, EN, RoHS
