Description
Technical characteristics
- Dahua HDCVI Lite Series Camera
- 2 MP CMOS sensor
- Maximum resolution 1080P (1920×1080)
- Progressive scanning system
- Automatic ICR
- Minimum illumination of 0.001 lux@F1.0 in color (30 IRE)
- Minimum illumination of 0.0001 lux@F1.0 in black and white (30 IRE)
- 0 lux with illuminators on
- Smart Dual Light illumination with 40 m range
- 4 multi-conductor LEDs
- 3.6 mm fixed optics (F1.0)
- Viewing angle: H 84.2°, V 45.3°, D 98.9°, D 98.9°, H 84.2°, V 45.3°, D 98.9°, D 98.9°.
Video
- Selectable CVI/TVI/AHD/CVBS technologies
- Output resolution: 1080P (1920×1080), 960H (960×576 / 960×480)
- Frames per second: CVI: 1080P@25fps (PAL); AHD: 1080P@25fps (PAL); TVI: 1080P@25fps (PAL); CVBS: 960H (PAL)
- BLC, HLC and 130 dB True WDR
Features
- Smart Dual Light for automatic switching between infrared and white light
- Smart Light+ for more uniform and better controlled illumination
- Smart Area Lighting with independent brightness adjustment per zone
- Super Adapt for automatic image parameter adjustment
- Automatic or zone white balance
- Automatic or manual gain control
- 3DNR noise reduction
- Motion detection
- Lighting modes: Smart IR&WL, WL, IR
- Privacy masking in up to 8 rectangular zones
Audio
- Built-in microphone
Communication interface
- Video output via BNC port with CVI/TVI/AHD/CVBS selection
Power supply
- 12 VDC ±30%
- Maximum power consumption of 7 W (with LEDs on)
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity less than 95% (non-condensing)
- Storage temperature -40°C to +60°C (-40°F to +60°C)
- Storage humidity less than 95% (non-condensing)
- IP67 protection
- Basic corrosion protection level
Physical characteristics
- Housing with metal front, plastic back and metal bracket
- Wall, ceiling or pole mounting
- Dimensions: 198.4 × 80.2 × 76.2 mm
- Net weight: 0.31 kg
- Gross weight: 0.46 kg
- 3AXIS: pan 0°~360°, tilt 0°~90°, rotation 0°~360°.
Contents

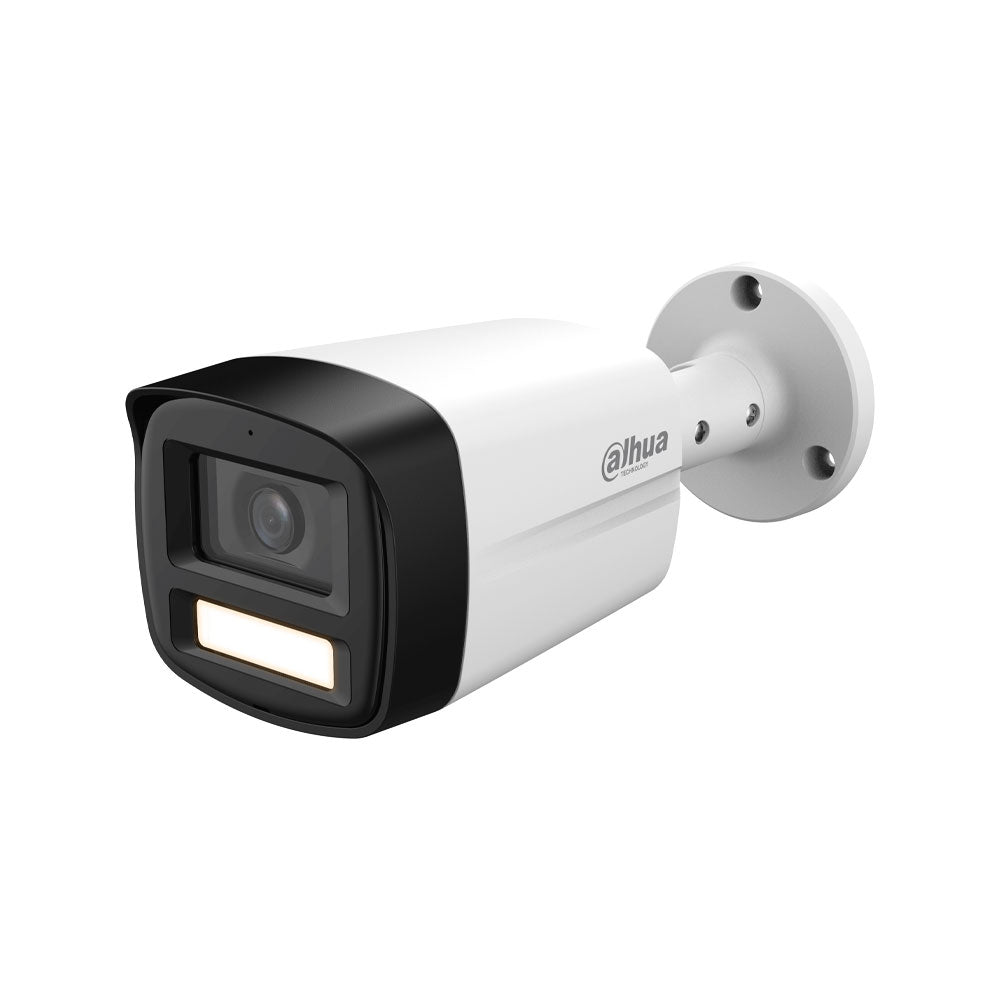

- HDCVI Smart Dual Light Camera DAHUA-4764 (DH-HAC-HFW1239TLMP-IL-A-0360B-S3)
Certifications
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032, EN 55035
