Technical specifications

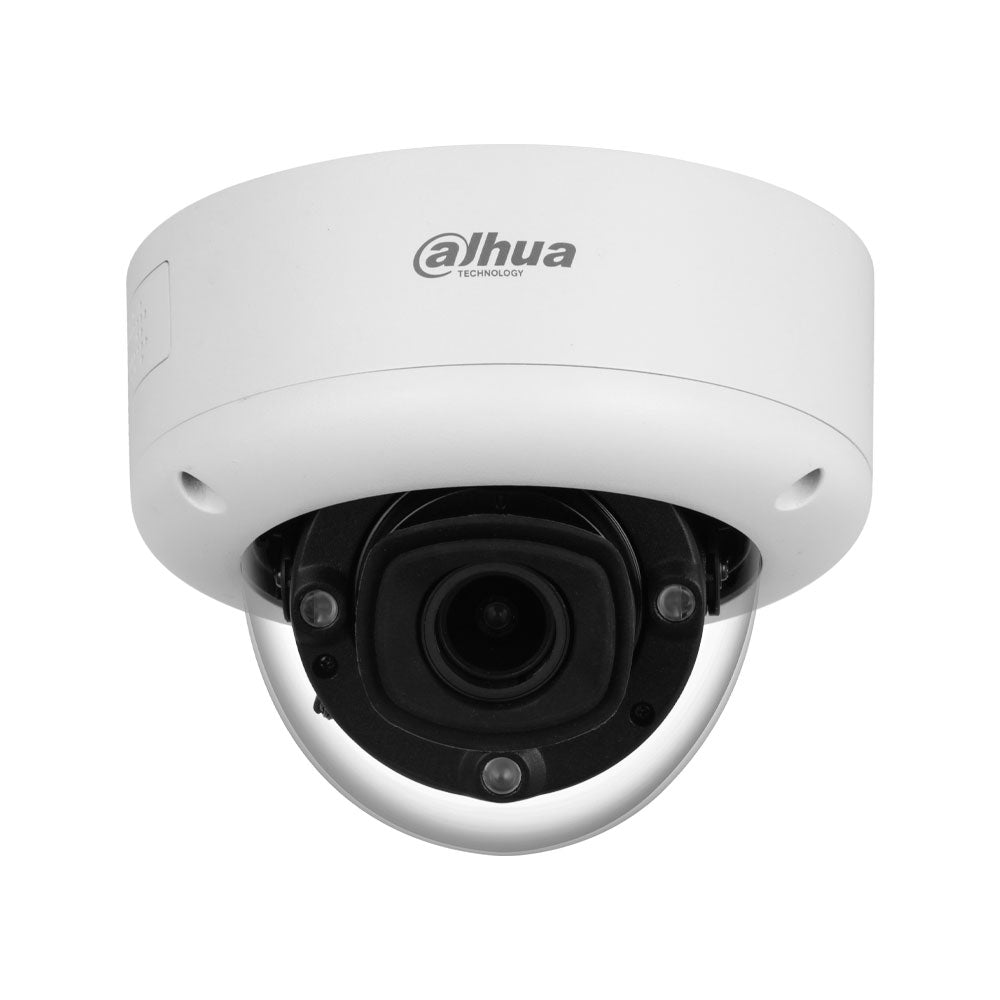

- Dahua WizMind 7 8MP IP Mini Dome
- 1/1.8" CMOS sensor with progressive scanning
- Maximum resolution of 8MP (3840 x 2160)
- Minimum illumination of 0.0006 lux F1.2 in color, 0.0003 lux F1.2 in B/W, and 0 lux with IR on
- Signal-to-noise ratio > 56dB
- IR illumination up to 40m with 3 IR LEDs
- Day/night mode with removable mechanical ICR filter
- Motorized varifocal lens from 2.7 to 12 mm
- Maximum aperture F1.2 with P-Iris
- Horizontal viewing angle from 105° to 48°, vertical from 55° to 27°, and diagonal from 124° to 55°
- DORI distance in wide angle: 87.6m (detection), 35m (observation), 17.5m (recognition), and 8.8m (identification)
- DORI distance in telephoto mode: 186.6m (detection), 74.6m (observation), 37.3m (recognition), and 18.7m (identification)
Video Stream / Video
- Video compression H.265, H.264, H.264H, H.264B, and MJPEG only in substream
- Smart H.265+ and Smart H.264+
- 5 stream capability
- Stream 1: 8MP (3840 x 2160) at 1~25/30 fps by default and 1~50/60 fps in high frame rate mode
- Stream 2: 1080p (1920 x 1080) at 1~25/30 fps
- Stream 3: 1080p (1920 × 1080) at 1~25/30 fps
- Stream 4: 1080p (1920 x 1080) at 1~25/30 fps
- Stream 5: D1 (704 x 576) at 1~25 fps or D1 (704 x 480) at 1~30 fps
- H.264 video bitrate from 32 kbps to 16384 kbps and H.265 from 12 kbps to 12800 kbps
Features
- AI-ISP for automatic image adaptation to the scene
- BLC, HLC, WDR 140dB, SSA, white balance, gain control, and 3D NR noise reduction
- Electronic Image Stabilization (EIS), Defog, mirror, and image rotation at 0°, 90°, 180°, and 270°
- Smart illumination, 4-zone Region of Interest (ROI), 4-zone motion detection, and 8-zone privacy mask
- LDC and EPTZ
- Privacy protection with automatic face or body masking
Smart Functions
- Allows two smart functions to be enabled simultaneously
- IVS with intrusion detection, tripwire, fast movement, loitering, crowd gathering, parking, and privacy protection
- Accurate classification of vehicles, animals, and people in cases of intrusion, tripwire, and fast movement
- Facial detection with tracking, capture, image optimization, facial exposure, and extraction of 6 attributes and 8 expressions
- Facial recognition in general mode and counting mode, up to 5 databases and comparison with up to 200,000 face images
- PPE detection with the following attributes: work clothes, helmet, cap, mask, apron, gloves, shoe covers, boots, safety vest, and belt
- People counting by tripwire, zone counting, and queue management with reports
- Heatmap, ANPR, parking space management, video metadata, Smart Search, and AcuPick
- ANPR with license plate number, vehicle type, vehicle color, seat belt, smoking, and phone call
Audio
- Built-in dual microphone
- Built-in large-diameter Hi-Fi speaker with a sound range of 20m
- Two-way audio with 1 input and 1 RCA audio output
- Sound management with Dahua noise reduction, voice capture, and non-human voice filtering
- Audio compression G.711a, G.711Mu, PCM, G.726, and G.723
Storage
- MicroSD card slot up to 1TB (card not included)
- Storage via FTP, SFTP, and NAS
Alarms
- 3 alarm inputs with wet contact of 5mA, 3V - 5V DC
- 2 alarm outputs with dry contact of 1000mA at 30V DC or 500mA at 50V AC
- Alarm events via SD card, network, unauthorized access, motion, video tampering, intelligent analysis, audio, blur, external alarm, and security exception
Communication Interface
- RS-485 port with a baud rate range from 1200 bps to 115200 bps
- Analog CVBS output via BNC
Network
- RJ45 10/100/1000 Base-T port
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Profile M, and Auto Register
- Compatible with ONVIF profiles S, G, T, and M, CGI, and P2P
- SDK and API available
- Up to 20 users with a total bandwidth of 340 M
- Compatible with SmartPSS Lite, DSS, DMSS, iOS, and Android
Power
- Power supply via 12V DC, 24V AC, PoE+ 802.3at, and ePoE
- 12V DC power output with a maximum current of 165mA and a peak of 700mA
- Basic consumption of 6.6W at 12V DC, 9.3W at 24V AC, and 9.8W via PoE
- Maximum consumption of 18.7W at 12V DC, 24.8W at 24V AC, and 25.2W via PoE
- Heater consumption: 3W at 12V DC, 4.6W at 24V AC, and 5.47W via PoE
Environmental Conditions
- Operating temperature from -40°C to +65°C
- Operating humidity ≤ 95%
- Storage temperature: from -40°C to +65°C
- Storage humidity: from 10% to 95%
- IP67 and IK10 protection rating
Physical Characteristics
- Metal and plastic casing
- Dimensions: 118.0 mm x Φ159.0 mm
- Net weight: 1.16 kg
- Gross weight: 1.36 kg
- 3 axes: 0°~355° PAN, 0°~80° TILT, and 0°~355° rotation
Content
- Dahua WizMind 7 IP Mini Dome DAHUA-4720 (DH-IPC-HDBW7842E1P-Z-2712F-DC12AC24V-X)
Certifications and Standards
- CE-LVD EN62368-1
- CE-CEM Electromagnetic Compatibility Directive 2014/30/EU
- FCC 47 CFR FCC Part 15, Subpart B
- UL/CUL UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
