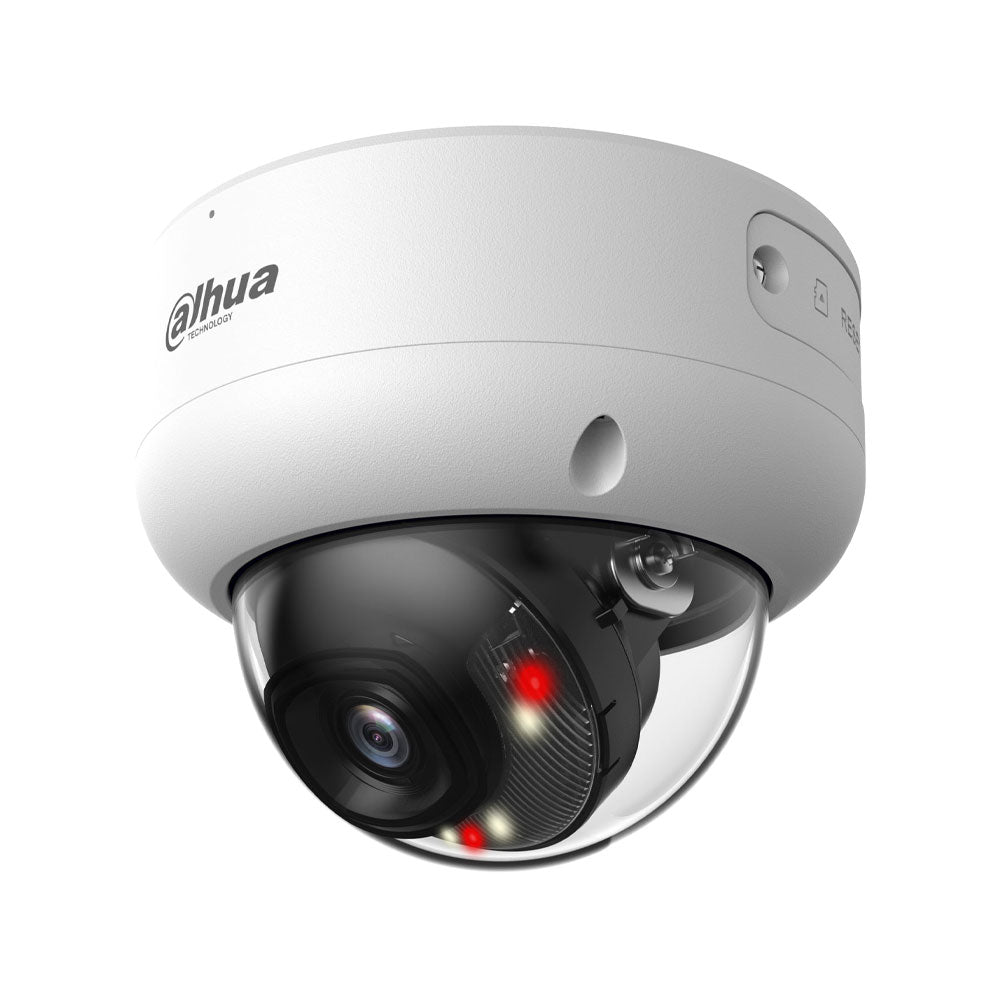

Description
- 4 megapixel 1/2.9" CMOS sensor
- Compression formats: AI H.265, Smart H.265+, Smart H.264+, H.265, AI H.264, H.264, MJPEG
- Digital Resolution: 4MP (2688x1520, 2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
- Stream 1: 4MP (1~25 fps)
- Stream 2: 1080P (1~25 fps)
- Stream 3: 1080P (1~25 fps)
- Day/night mode with removable mechanical filter (ICR)
- Smart Dual Light: 3 IR LEDs + 4 warm light LEDs, 40 meters
- 0.005 lux F1.4 (color), 0.0005 lux F1.4 (B/W), 0 lux IR On
- 2.8 mm fixed optics
- Viewing angle: 100°(H), 56°(V), 117°(D)
- Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Mirror, Defog
- Built-in Lens Distortion Correction (LDC)
- White balance with 6 modes
- Automatic and manual gain control
- Video sensor with 4 zones, 4 regions of interest (ROI) and 8-zone privacy masking
- Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)
- SMD 4.0
- Built-in microphone
- MicroSD card slot up to 512GB (not included)
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
- ONVIF (Profile S/G/T/M), CGI, SDK and API support
- Up to 20 users
- Remote viewing via IE, Chrome and Firefox browsers
- Smart PSS Lite, DSS, DMSS, DoLynk Care management software
- Compatible with IOS and Android mobile devices
- Power supply: 12V DC / PoE (802.3af)
- Maximum power consumption: 6 W (12V) / 7.1 W (PoE)
- Storage temperature: -40°C ~ +60°C
- Storage relative humidity ≤95% (non-condensing)
- Operating temperature -40°C ~ +60°C
- Operating relative humidity ≤95% (non-condensing)
- IP67 protection rating
- IK10 vandal protection
- Metal housing
- Dimensions: Ø111.7 x 89.1 mm
- Net weight: 528 g
- Gross weight: 690 g
- 3AXIS: 0°~355°(PAN), 0°~75°(TILT), 0°~355°(Rotation)
