Description
Technical Specifications
- Dahua ANPR IP Camera
- 1/1.8 CMOS Sensor
- Resolution: 4MP (2688×1520)
- Minimum illumination: 0.001 lux (color), 0.0002 lux (B/W), 0 lux with illuminator
- Maximum detection speed: 60 km/h
- Motorized lens from 2.7 to 12 mm
- Viewing angle: H 98.1°~46.1°, V 54.0°~26.0°, D 114.6°~52.8
- IR + White LED illumination up to 8 m (automatic adjustment)
- Automatic defogging by glass heating
Video
- Resolutions: 4MP, 1080p, 720p / Substream: 960H, D1
- Frames per second: up to 25 fps
- Compression: H.265, H.264 (various profiles), MJPEG
- Bit rate control: CBR/VBR
- Image functions: WDR 140 dB, BLC, HLC, 3D NR, DDE, SSA
- Image encoding: JPEG
- Privacy and tampering protection: masks, watermarks
Smart Functions
- License plate recognition (ANPR)
- Recognition of 147 brands and 12 vehicle colors
- Vehicle type recognition (10 types)
- Extraction of license plate and vehicle metadata
- Supports 110,000 entries in black and white lists
Audio
- 1 audio input and 1 audio output (terminal)
Storage
- 1 TF card slot up to 256 GB (card not included)
Alarms
- 3 alarm inputs (optocoupled)
- 2 relay outputs (up to 2 A, 30 VDC / 0.5 A, 125 VAC)
Communication Interface
- 2 RS-485 ports
- Reset button
Network
- 1 RJ-45 10/100/1000 Mbps port
- Protocols: HTTP, HTTPS, TCP, UDP, RTSP, FTP, SMTP, DHCP, IPv4/6, NTP, DDNS, SNMP, PPPoE, etc.
- ONVIF (profile S/T), CGI, ITSAPI, P2P
- Compatible with DSS Express and DSS Pro
Power Supply
- 100~240 VAC
- Maximum power consumption: 70 W
Environment
- Operating temperature: -30°C to +60°C (-30°F to +60°F)
- Humidity: 10%-95% (non-condensing)
- Protection: IP54
- Corrosion level: basic
Physical Characteristics
- Material: metal and plastic
- Product dimensions: 380.9 × 320.0 × 1423.9 mm (380.9 × 320.0 × 1423.9 mm)
- Packaging dimensions: 912.0 × 547.0 × 232.0 mm
- Net weight: 14.03 kg
- Gross weight: 17.34 kg
Content

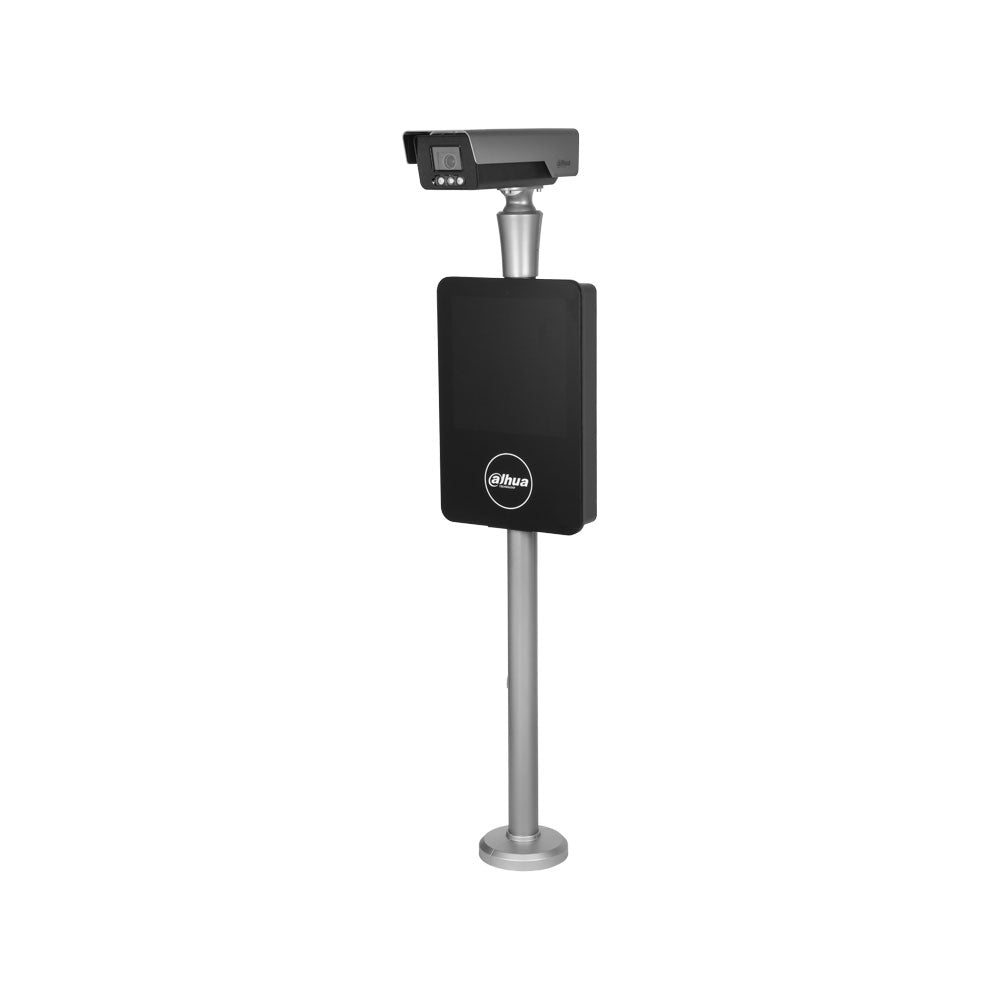

- ANPR Kit with LED Screen DAHUA-4611 (DHI-IPMECS-2234-IZ)
Certifications
- CE
- UKCA
