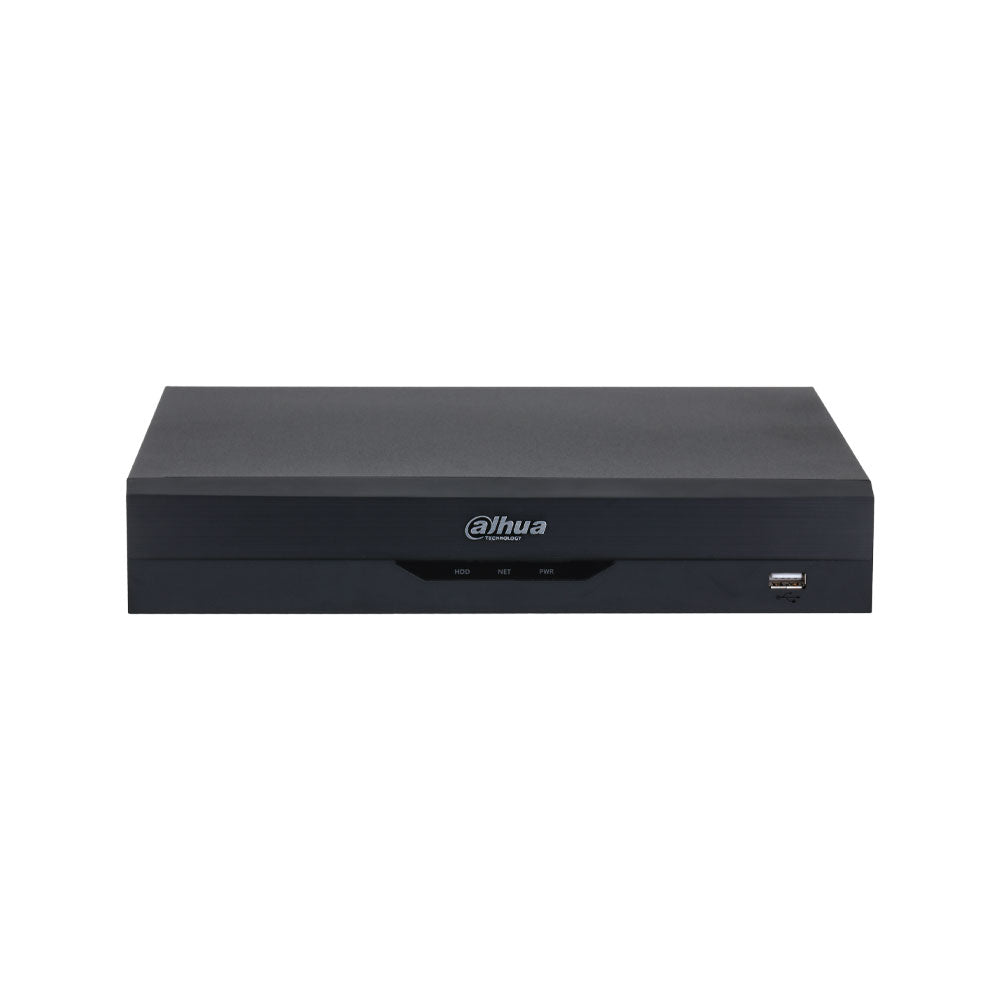

Description
- 5 technologies: IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition
- 8 BNC channels (BNC inputs can be converted to IP channels)
- Up to 16 IP channels (8 default IP channels + 8 analog channels converted to IP channels)
- Video compression: AI, H.265+, H.265, H.264+, H.264
- Simultaneous or heterogeneous HDMI (4K) and VGA video outputs (up to 1080P)
- Output split with extended IP mode disabled: 1, 4, 8, 9
- Output split with extended IP mode enabled: 1, 4, 8, 9, 16
- 1 RCA audio input / 1 RCA audio output
- Two-way audio via audio channel 1
- 8 audio inputs via coaxial cable
- Audio compression: G.711a, G.711u, PCM
- Camera input resolutions:
- CVI: 8MP/4K (12.5/15/25/30 fps), 6MP (20 fps), 5MP (20/25 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 8MP/4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 8MP/4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Bandwidth: 128 Mbps input, 128 Mbps storage, 128 Mbps output (with extended IP mode, AI functions will be disabled)
- Main stream: 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4K-N/4MP/3MP (1~15 fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30 fps)
- Secondary stream: 960H (1~15 fps), D1/CIF (1~25/30 fps)
- Recording modes: general, video detection, IVS, alarm, POS
- Playback up to 8 channels
- Perimeter protection: 2 channels, 10 IVS rules per channel
- Face detection: 2 channels, each channel detects up to 12 faces
- Privacy protection: 1 channel
- Facial recognition: 2 channels, up to 10 databases and 20,000 facial images
- SMD Plus: 8 channels, person and vehicle classification
- Video quality analysis: 8 channels
- Scene change detection: 1 channel
- Internal capacity for 1 SATA hard drive up to 16TB (sold separately)
- Multi-language on-screen menu with a new improved graphical interface
- Ability to update DAHUA camera firmware from the recorder itself
- Software and hardware watchdog
- Watermark to preserve video integrity
- RJ45 Gigabit Ethernet network port (10/100/1000 Mbps)
- Network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, FTP, DDNS, SNMP, alarm server, P2P, automatic recording, IP search (supports IP cameras, DVRs, NVS, etc.)
- ONVIF 23.12 (T/S/G), CGI, SDK compatible
- Remote access from a web browser and iPhone, iPad or Android device (EVO and TTS App)
- Email sending with attached photo on alarm
- Upload to FTP scheduled or on alarm
- Ability to send an alarm and connect to an alarm receiving software (C.R.A.) via the free AlarmSpace software
- Ability for fixed or dynamic IP via DDNS Evolution service
- Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
- Power supply: 12V DC, 2A (<10W, excluding drives)
- Storage temperature: -20°C ~ +60°C
- Operating temperature: -10°C ~ +55°C
- Relative humidity: 10%~90% (non-condensing)
- Dimensions: 260 (W) x 47.6 (H) x 237.8 mm
- Gross weight: 1 kg
- Net weight: 1.4 kg
- Tabletop installation
