Description
- 5 technologies: IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition
- 4 BNC channels up to 8MP/4K (BNC inputs can be upgraded to IP)
- 4 IP channels at 8MP/4K (added to BNC inputs)
- Video compression: AI, H.265+, H.265, H.264+, H.264
- HDMI (4K) and VGA (up to 1080P) video outputs
- Output division: 1, 4 (IP mode off); 1, 4, 8, 9 (IP mode on)
- Two-way audio: 1 RCA input / 1 RCA audio output
- Audio compression: G.711a, G.711u, PCM
- Recording resolution: 8MP/4K, 6MP, 5MP, 4MP, 4M-N, 1080P, 720P, 960H, D1, CIF
- Maximum incoming bandwidth: 64 Mbps
- Primary stream: 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4MP/3MP (1~15 fps), 4M-N/1080P/720P/960H/D1/CIF (1~25 fps)
- Secondary stream: 960H (1~15 fps), D1/CIF (1~25 fps)
- Recording modes: manual, schedule, video detection, video loss, tampering, alarm, stop
- Recording intervals (1~60 min.), pre-recording (1~30 sec.), and post-recording (10~300 sec.)
- Independent video sensor configurable per camera (22x18 selectable grid), video loss detection and masking, diagnostics
- Playback up to 4 channels
- 8 alarm inputs / 3 alarm outputs
- Perimeter protection: 1 channel, up to 10 IVS rules
- Face detection: 1 channel, supports analog cameras only
- SMD Plus: 4 channels, people and vehicle classification

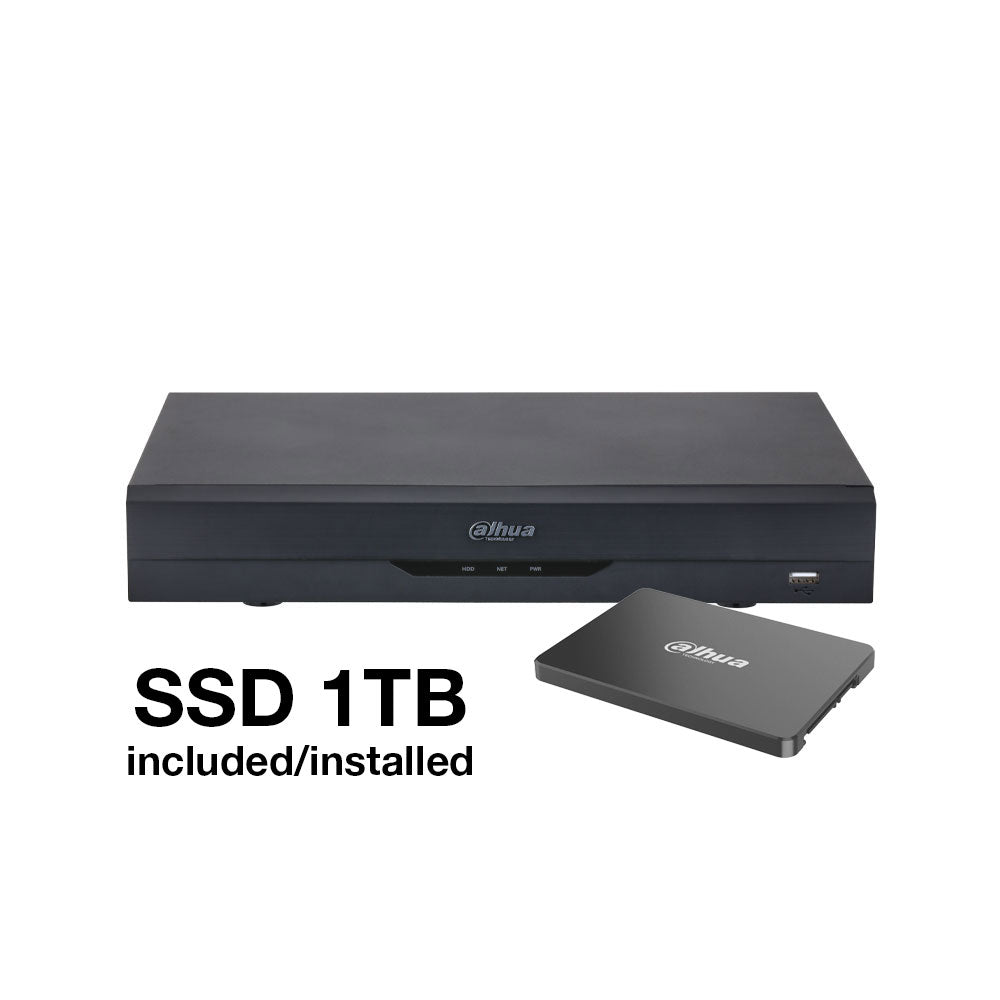

- Includes 1x 1TB hard drive
- Multi-language on-screen menu with improved new GUI
- Ability to update DAHUA camera firmware from the recorder itself
- Software and hardware monitoring
- Watermark to preserve video integrity
- RJ45 Fast Ethernet (100M) network port
- Complies with ONVIF 16.12 and CGI standards
- Remote access from a web browser and iPhone, iPad, or Android device (EVO and TTS App)
- Email sending with attached photo in case of alarm
- Sending to a scheduled FTP or on alarm
- Ability to send an alarm and be connected to an alarm receiving software (C.R.A.) via the free AlarmSpace software
- Fixed or dynamic IP capability via the Evolution DDNS service
- Communication ports: 2 USB 2.0 ports, 1 RS485 port (for PTZ control)
- Power supply: 12V DC, 2A (<7W, excluding drives)
- Storage temperature: -20°C ~ +70°C
- Operating temperature: -10°C ~ +55°C
- Relative humidity 0%~90%.
- Dimensions: 325 (W) x 55 (H) x 256.6 mm
- Weight: 1.3 kg
- Tabletop installation
