Description
- 5 technologies: IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition
- 4 BNC channels up to 8MP/4K (BNC inputs can be converted to IP)
- Up to 8 IP channels (4 default IP channels + 4 analog channels converted to IP channels)
- Video compression: AI, H.265+, H.265, H.264+, H.264
- Simultaneous or heterogeneous HDMI (4K) and VGA video outputs (up to 1080P)
- Output split with extended IP mode disabled: 1, 4
- Output split with extended IP mode enabled: 1, 4, 8, 9
- Two-way audio: 1 RCA audio input / 1 RCA audio output
- 4 audio inputs via coaxial cable
- Audio compression: G.711a, G.711u, PCM
- Recording resolution:
- CVI: 8MP/4K (25/30 fps), 6MP (20 fps), 5MP (20/25 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 8MP/4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 8MP/4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Bandwidth: 64 Mbps input, 64 Mbps for recording and 64 Mbps output (with extended IP mode, AI features such as IVS, SMD or face detection will be disabled).
- Main stream: 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4K-N/4MP/3MP (1~15 fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30 fps)
- Secondary stream: 960H (1~15 fps), D1/CIF (1~25 fps)
- Recording modes: general, video detection, IVS, alarm, POS
- Playback up to 4 channels
- Perimeter protection: 2 channels, 10 IVS rules per channel
- Face detection: 2 channels, each channel detects up to 8 faces
- Face recognition: 2 channels, up to 10 databases and 20,000 face images
- SMD Plus: 4 channels, people and vehicle classification

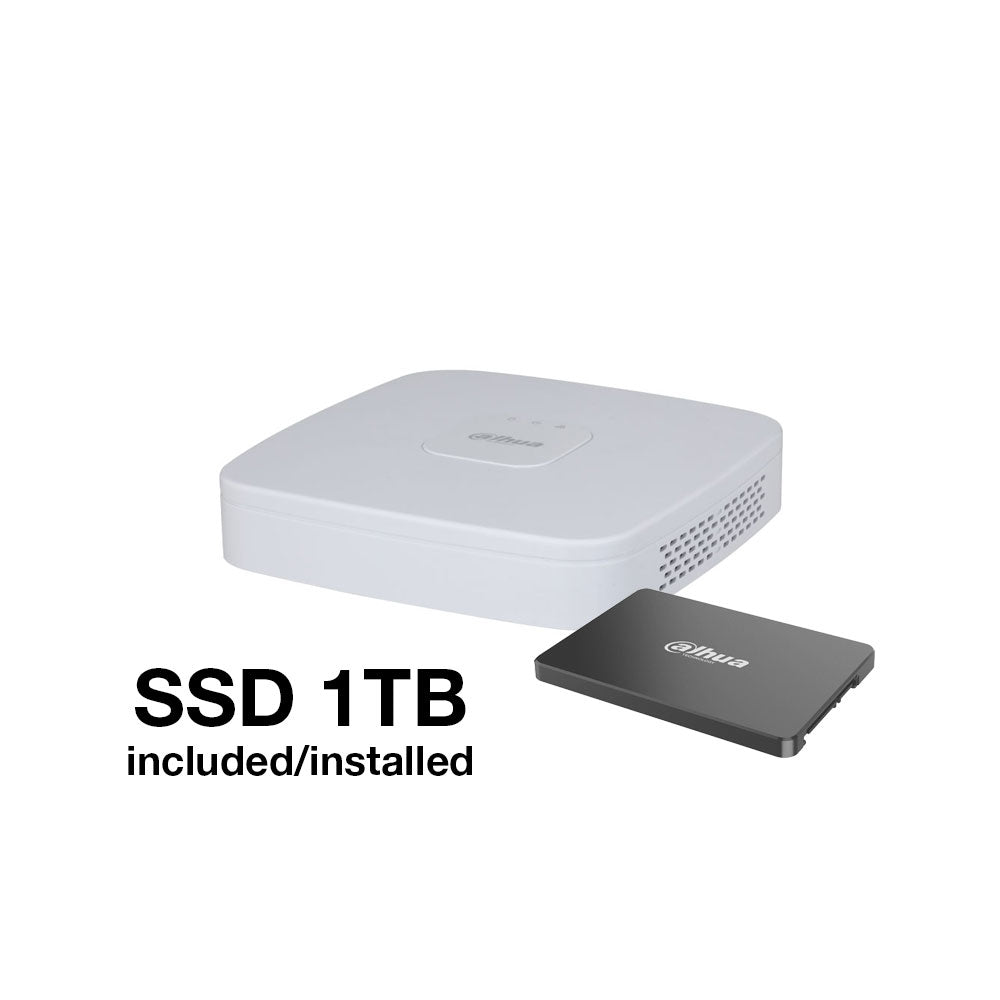

- 1 x 1TB SSD included
- Multi-language on-screen menu
- Ability to update DAHUA camera firmware from the recorder itself
- Software and hardware monitoring
- Watermark to preserve video integrity
- RJ45 10/100Mbps network port
- Compatible with ONVIF 22.12 (T/S/G), CGI, SDK
- Remote access from a web browser and an iPhone, iPad or Android device (EVO and TTS App)
- Email sending with attached photo on alarm
- Scheduled or alarm-triggered FTP sending
- Ability to send an alarm and connect to an alarm reception software (C.R.A.) via the free AlarmSpace software
- Fixed or dynamic IP capability via the DDNS Evolution service
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 2A (<7W, excluding drives)
- Storage temperature: -20°C ~ +60°C
- Operating temperature: -10°C ~ +55°C
- Relative humidity ≤93%.
- Dimensions: 204.6 (W) x 45.6 (H) x 210.9 mm
- Net weight: 560 g
- Gross weight: 1.06 kg
- Tabletop installation
- CE certified
