Description
- 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
- 8 BNC channels up to 5MP (BNC inputs can be converted to IP)
- Up to 12 IP channels (4 default IP channels + 8 analog channels converted to IP channels)
- Video compression: AI, Smart H.265+, H.265, Smart H.264+, H.264
- HDMI (1080P) and VGA (1080P) video outputs
- Output distribution: 1, 4, 8, 9 (IP mode disabled); 1, 4, 8, 9, 16 (IP mode enabled)
- 1 RCA audio input / 1 RCA audio output
- 8 audio inputs via coaxial cable
- Audio compression: G.711a, G.711u, PCM
- Recording resolution:
- CVI: 5MP (10/12/20/25 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Bandwidth: 64 Mbps input, 64 Mbps recording and 64 Mbps output
- Main stream in 5MP mode: 4 channels 5MP (1~6 fps) + remaining channels 5M-N (1~12 fps)
- Main stream in 5M-N mode: 8 channels 5M-N (1~12 fps), 4M-N, 1080P (1~15 fps), 1080N, 720P, 960H, D1, CIF (1~25 fps)
- Sub stream: D1, CIF (1~15 fps)
- General recording modes, video detection, IVS, alarm, POS
- Playback up to 8 channels (4 channels when face detection, IVS or SMD is selected in AI mode)
- Perimeter protection: 2 channels, 10 IVS rules per channel
- Face detection: 2 channels, each channel detects up to 8 faces
- Face recognition: 2 channels, up to 10 databases and 10,000 face images
- SMD Plus: 8 channels, person and vehicle classification

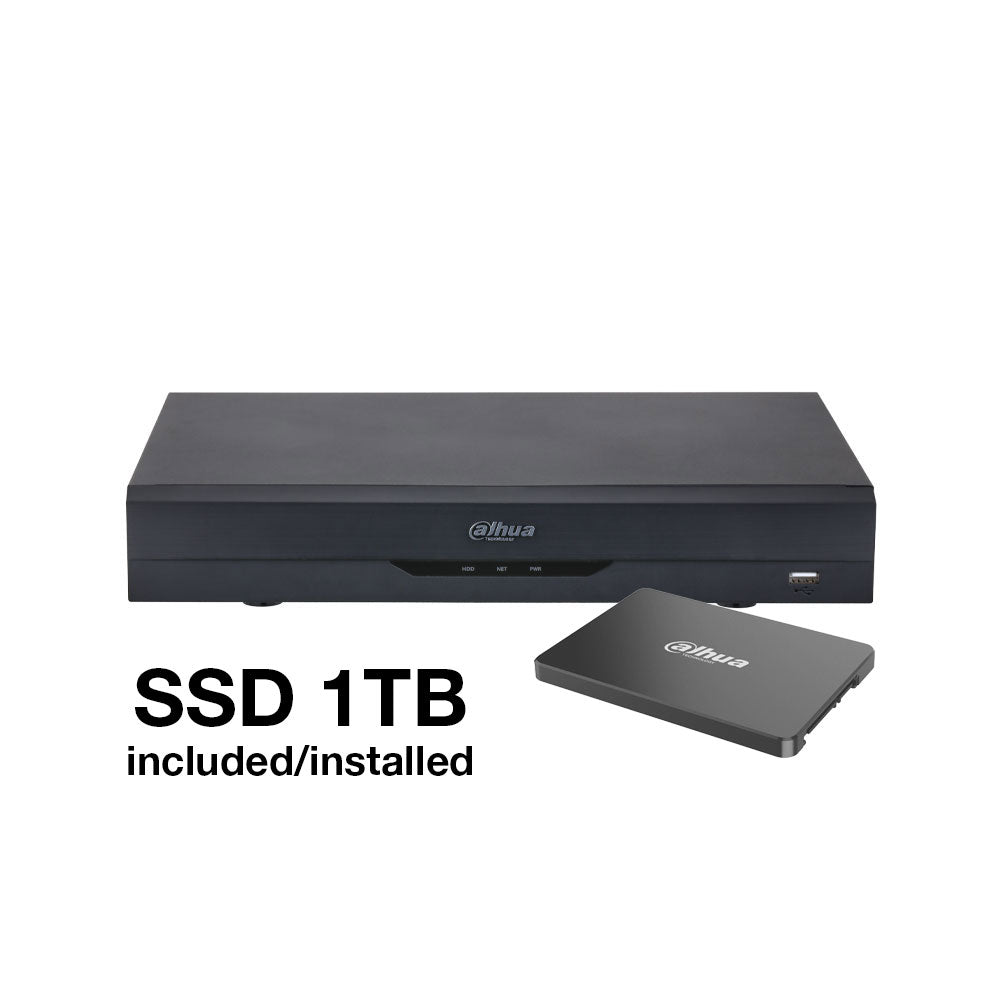

- 1 x 1TB SDD included
- Multilingual on-screen menu
- Possibility to update DAHUA camera firmware from the recorder itself
- Software and hardware monitoring
- Watermark to preserve video integrity
- RJ45 Fast Ethernet network port (10/100 Mbps)
- ONVIF 22.12 (T/S/G), CGI and SDK support
- Remote access from IE, Chrome and Firefox browsers and iPhone, iPad and Android devices (EVO App and TTS)
- Sending emails with attached photo on alarm
- Sending to FTP scheduled or on alarm
- Possibility to send an alarm and be connected to an alarm receiving software (C.R.A.) via the free AlarmSpace software
- Possibility of fixed or dynamic IP via the DDNS Evolution service
- Communication ports: 2 USB 2.0 ports, 1 RS485 port (for PTZ control)
- Power supply: 12V DC, 2A
- Power consumption: <7W (excluding drives)
- Storage temperature: -20°C ~ +60°C
- Operating temperature from -10°C ~ +55°C
- Relative humidity of ≤93%.
- Dimensions: 325 (L) 55 (H) x 257.1 mm
- Net weight: 1.17 kg
- Gross weight: 1.78 kg
- Rack or desktop installation
