Description
- 5 technologies: IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition
- 8 BNC channels up to 5MP (BNC inputs can be converted to IP)
- 4 IP channels up to 6MP (added to BNC inputs)
- Video compression: AI, Smart H.265+, H.265, Smart H.264+, H.264
- HDMI (1080P) and VGA (up to 1080P) video outputs
- Output split: 1, 4, 8, 9 (IP mode disabled); 1, 4, 8, 9, 16 (IP mode enabled)
- 1 RCA input / 1 RCA audio output
- Two-way audio via RCA audio channel
- 8 audio inputs via coaxial cable
- Audio compression: G.711a, G.711u, PCM
- Recording resolution:
- CVI: 5MP (20 fps), 5MP (25 fps), 5MP (10/12.5 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Bandwidth: 64 Mbps input, 64 Mbps storage, and 64 Mbps output (when IP mode is enabled, AI functions such as IVS, SMD, or face detection are disabled).
- Main stream: 4 channels 5MP (1~6 fps), all channels 5M-N (1~12 fps), 4M-N, 1080P (1~15 fps), 1080N, 720P, 960H, D1, CIF (1~25/30 fps)
- Secondary stream: D1, CIF (1~15 fps)
- Recording modes: general, video detection, IVS, alarm, POS
- Playback up to 8 channels
- Perimeter protection: 2 channels, up to 10 IVS rules, person/vehicle classification
- Face detection: 2 channels, each channel detects up to 8 faces
- Face recognition: 2 channels, up to 10 databases and 10,000 face images
- SMD Plus: 8 channels, person and vehicle classification

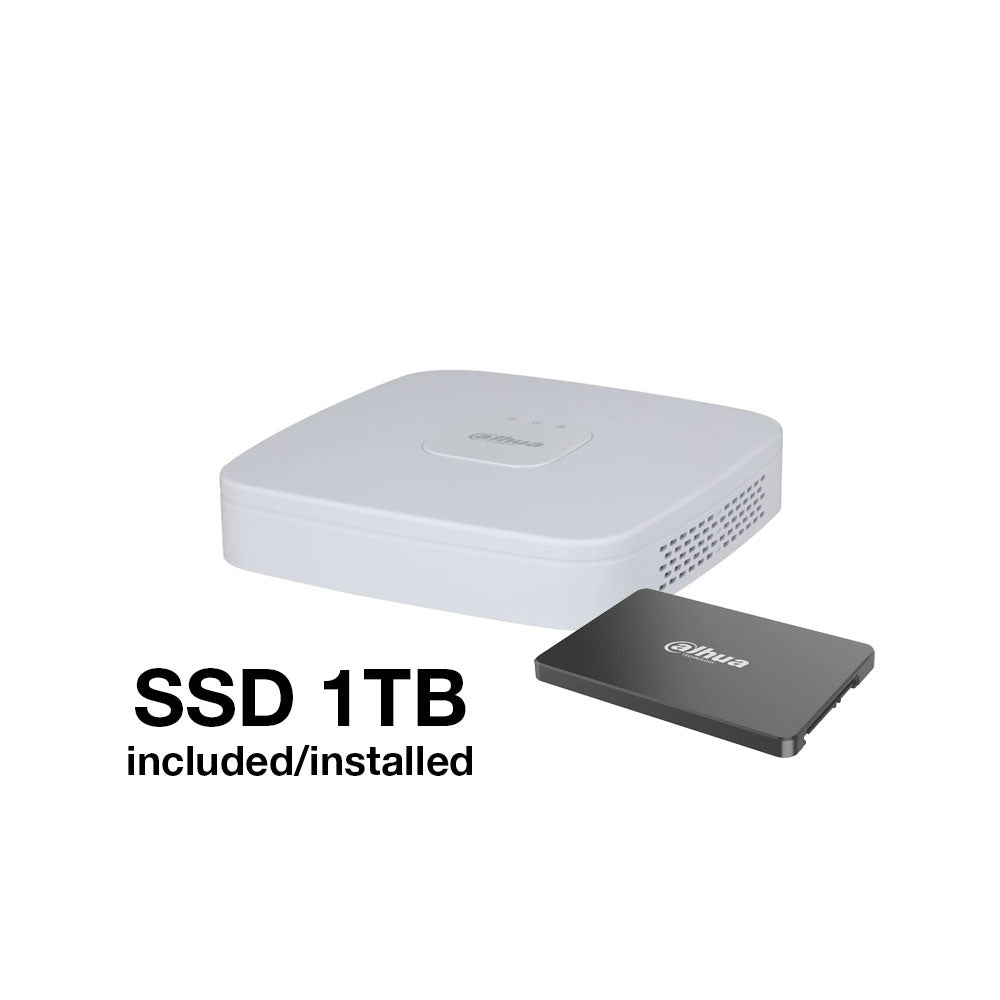

- Includes 1TB hard drive
- Multilingual on-screen menu with improved new graphical interface
- Ability to update DAHUA camera firmware from the recorder itself
- Software and hardware monitoring
- Watermark to preserve video integrity
- RJ45 Fast Ethernet network port (10/100M)
- Supports ONVIF 22.12 (T/S/G), CGI and SDK
- Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
- Email sending with attached photo in case of alarm
- FTP upload scheduled or on alarm
- Ability to send an alarm and be connected to an alarm reception software (C.R.A.) via the free AlarmSpace software
- Ability for fixed or dynamic IP via DDNS Evolution service
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 2A (<7W, including HDD)
- Storage temperature from -20°C ~ +60°C
- Operating temperature from -10°C ~ +55°C
- Relative humidity <93%
- Dimensions: 204.6 (L) 45.6 (H) x 210.9 mm
- Net weight: 560 g
- Gross weight: 1.05 kg
- Tabletop installation
