Description
- 5 technologies: IP, HDCVI, HDTVI, AHD, and analog CVBS cameras with automatic signal recognition
- 4 BNC channels up to 5MP (BNC inputs can be converted to IP)
- 2 IP channels up to 6MP (added to BNC inputs)
- Video compression: AI, Smart H.265+, H.265, Smart H.264+, H.264
- HDMI (1080P) and VGA (up to 1080P) video outputs
- Output split: 1, 4 (IP mode disabled); 1, 4, 6 (IP mode enabled)
- 1 RCA input / 1 RCA audio output
- Two-way audio via the RCA audio channel
- 4 audio inputs via coaxial cable
- Audio compression: G.711a, G.711u, PCM
- Recording resolution:
- CVI: 5MP (20 fps), 5MP (25 fps), 5MP (10/12.5 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
- TVI: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
- Bandwidth: 32 Mbps input, 32 Mbps for storage, and 32 Mbps output (when IP mode is enabled, AI functions such as IVS, SMD, or facial detection are disabled).
- Primary stream: 5MP (1~6 fps), 5M-N (1~12 fps), 4M-N, 1080P (1~15 fps), 1080N, 720P, 960H, D1, CIF (1~25/30 fps)
- Secondary stream: D1, CIF (1~15 fps)
- Recording modes: general, video detection, IVS, alarm, POS
- Playback up to 4 channels
- Perimeter protection: 2 channels, up to 10 IVS rules, human/vehicle classification
- Face detection: 1 channel, each channel detects up to 8 faces
- Face recognition: 1 channel, up to 10 databases and 10,000 face images
- SMD Plus: 4 channels, human and vehicle classification

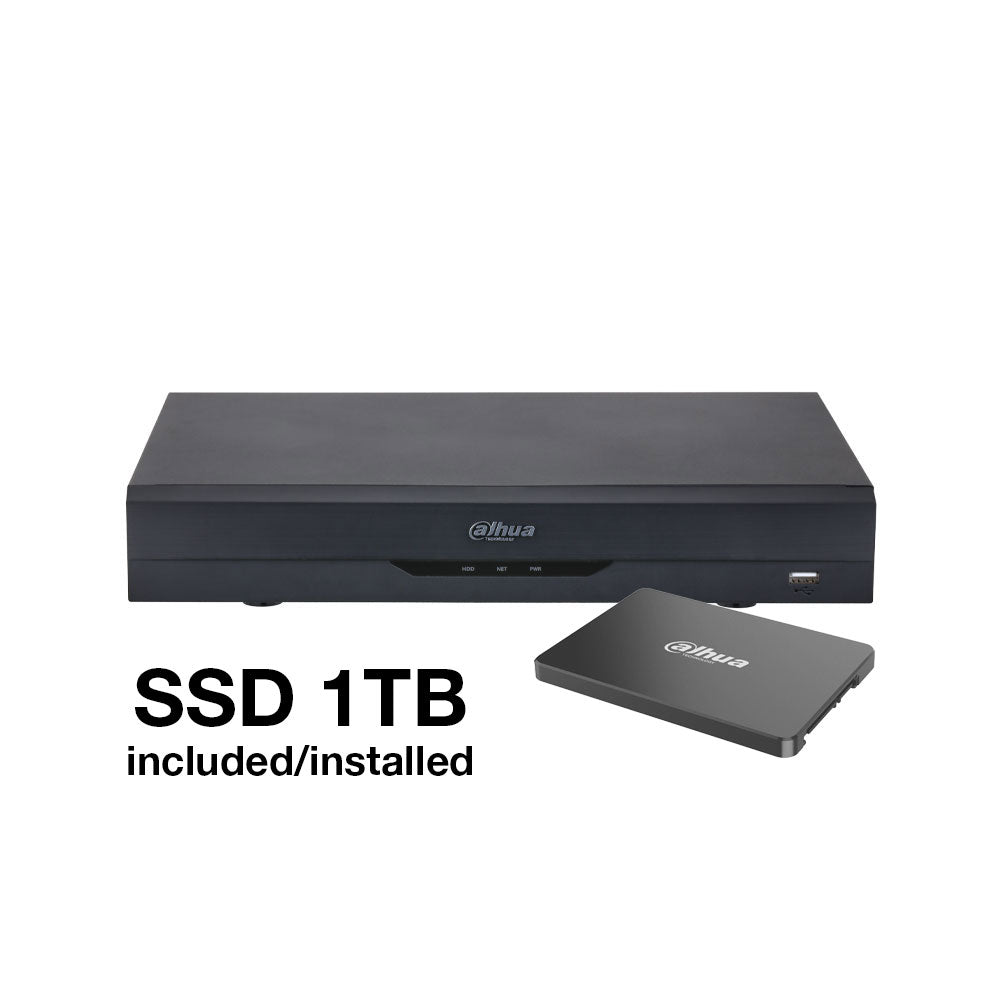

- Includes 1TB HDD
- Multilingual on-screen menu with improved new graphical interface
- Ability to update DAHUA camera firmware from the recorder itself
- Software and hardware monitoring
- Watermarking to preserve video integrity
- RJ45 Fast Ethernet network port (10/100M)
- ONVIF 22.12 (T/S/G), CGI and SDK support
- Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
- Email sending with attached photo in case of alarm
- FTP sending scheduled or on alarm
- Ability to send an alarm and connect to an alarm receiving software (C.R.A.) via the free AlarmSpace software
- Fixed or dynamic IP capability via DDNS Evolution service
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 1.5A (<5W, including HDD)
- Storage temperature: -20°C ~ +60°C
- Operating temperature: -10°C ~ +55°C
- Relative humidity <93%
- Dimensions: 325 (W) x 55 (H) x 257.1 mm
- Net weight: 1.29 kg
- Gross weight: 1.74 kg
- Tabletop installation
