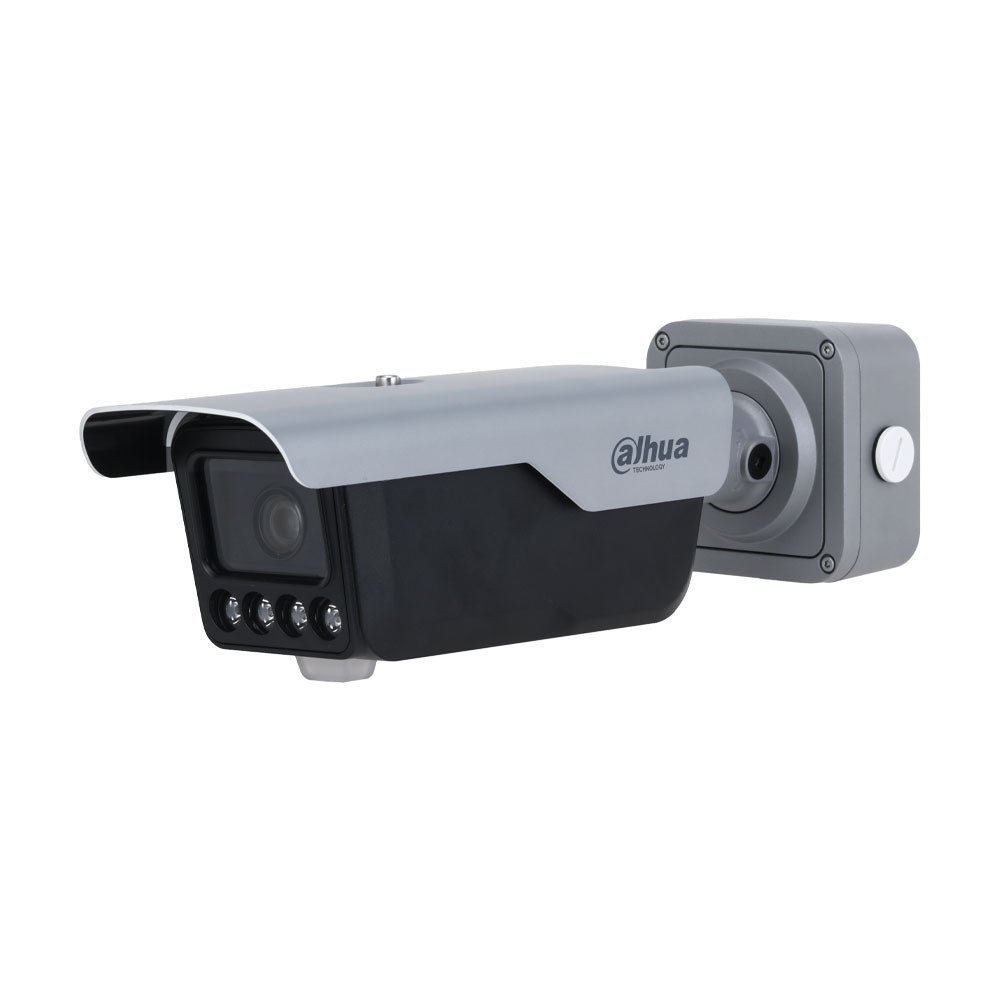

IP Camera 4MP ANPR

1/1.8" 4-megapixel CMOS sensor

Video compression format H.264H, H.264B, H.264M, H.265 and MJPEG

Digital resolution: 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), 960H (960x576), D1 (704x576), CIF (352x288)

Stream 1: 4MP, 1080P, 720P (25/30 fps)

Stream 2: 720P, 960H, D1, CIF (25/30 fps)

Day/night mode with removable mechanical filter (ICR)

0.001 lux F1.6 (color), 0.0002 lux F1.6 (B/W), 0 lux IR On

Smart IR: 4 LEDs (IR LEDs and white light), 20 meters in ANPR mode, 60 meters in video mode

Automatic and manual IR control

Motorized optics 8 ~ 32 mm

Viewing angle: 39.9°~15.1°(H), 21.8°~8.5°(V), 46.6°~17.4°(D)

Autofocus, zone focus, and manual focus control

P-Iris diaphragm control

Image modes: BLC, HLC, WDR 140dB, 3D-NR, digital detail enhancement (DDE).

Up to 3 ROI regions of interest

White balance: Auto, custom region, manual, outdoor, natural, and street lighting

Manual and automatic gain control

Brightness, contrast, saturation, gamma and sharpness adjustment

OSD overlay: time, direction (channel position), lane (number and direction), license plate (number and color), vehicle (speed, color, type)

Capture distance range from 8 ~ 20 meters

Detected lane width from 6 to 8 meters

Maximum detection speed up to 120 km/h

Image tampering prevention by watermark verification

Throughput up to 10,000 vehicles and up to 10 connections

Vehicle detection with a capture rate of ≥99% and a recognition rate of ≥98%.

Black/white list: up to 110,000 license plates

Vehicle recognition by type, logo (up to 147), color (up to 12), license plate or vehicle without license plate.

Video metadata: Display of intelligent chassis, plate and vehicle trajectories

IVS intelligence: intrusion detection, loitering detection, up to 4 configurable zones

Audible and visible alarm: blue and red indicator light, support for custom audio broadcast

Built-in microphone with a range of 3 meters

Built-in 2W speaker

1 RCA audio output

2 optocoupled alarm inputs

2 relay outputs (for connection to devices such as barriers)

2 Half-Duplex RS485 ports

1 26-bit Wiegand channel

433 MHz and 868 MHz remote control frequency and range up to 15 meters

Supports TF cards up to 256 GB (card not included)

Network interface: RJ45 (10/100/1000) self-adaptive

Network protocols: HTTP, Https, 802.1x, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, NTP, SFTP, DDNS, SNMP, PPPoE

Onvif (S/G/T), CGI, ITSAPI, P2P, SDK, API support

Management software DSS Pro, DSS Express, Cybercity, Smart PSS

Compatible with IE, Chrome and Firefox browsers

Power supply: 12V DC / PoE+

Power consumption: 20W (maximum)

Storage temperature: -40°C ~ +70°C

Storage humidity ≤ 95% (non-condensing)

Operating temperature from -30°C ~ +65°C

Relative humidity 10% ~ 90% (non-condensing)

IP67 degree of protection

IK10 vandal protection

Aluminum and plastic housing

Dimensions: 120.8 (W) x 127.8 (H) x 396 mm

Weight: 2.3 kg

All-in-one structure with bracket and junction box
